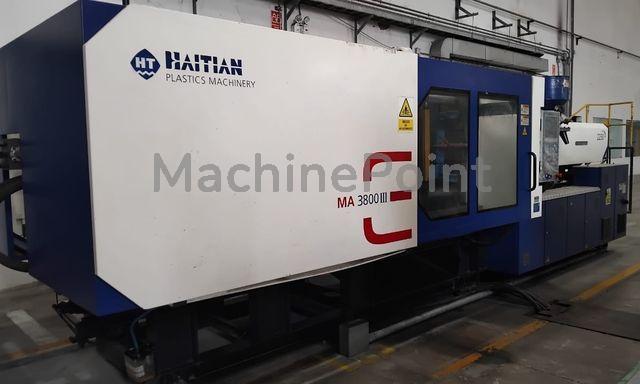

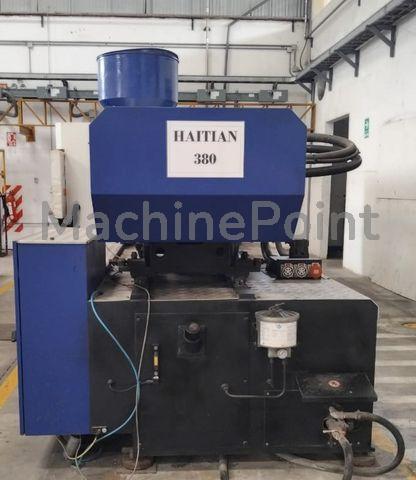

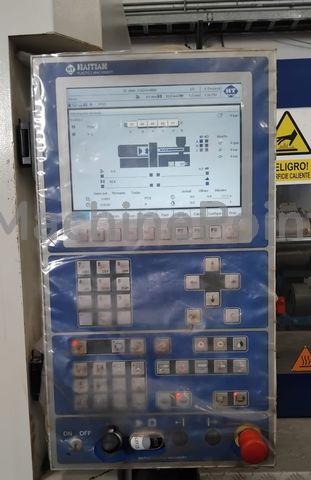

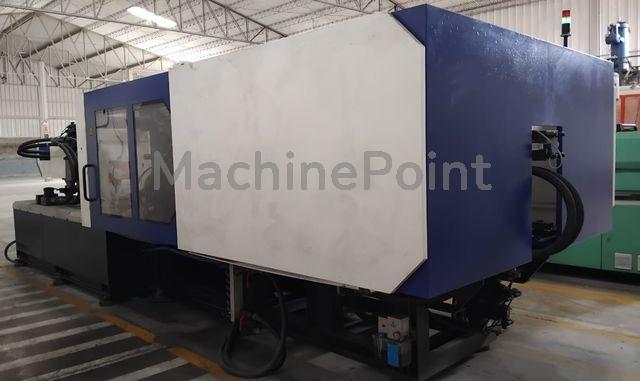

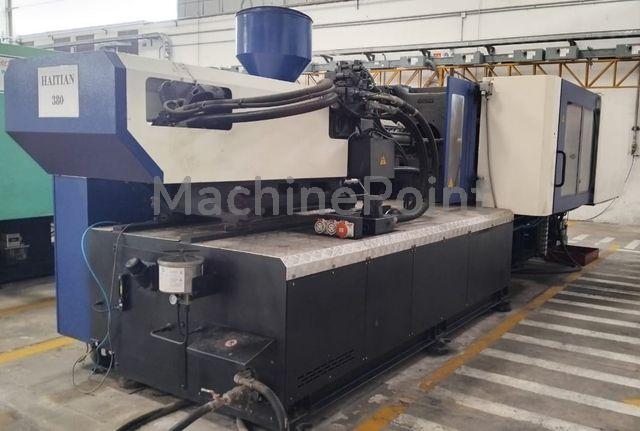

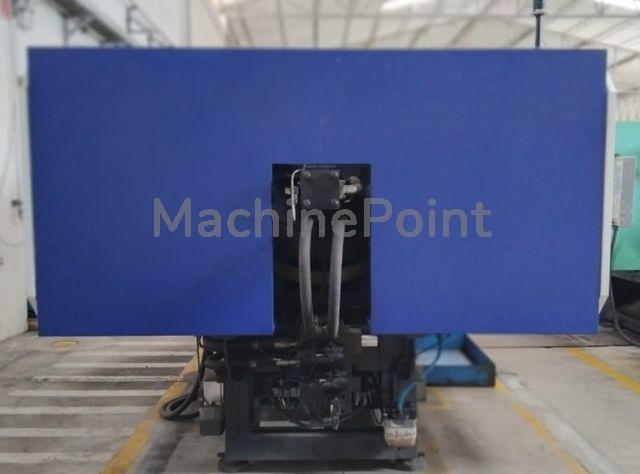

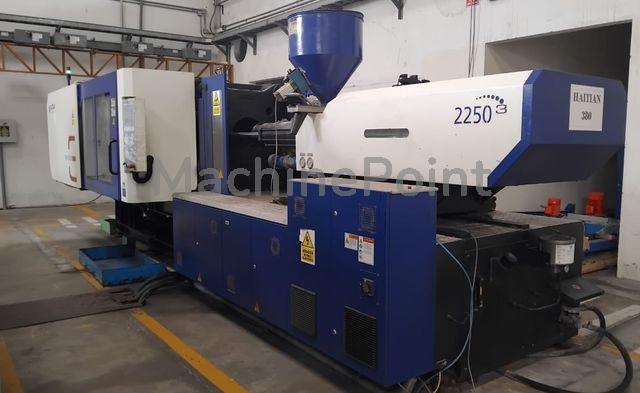

Used HAITIAN MA3800 III of 2021 Clamping Force: 380 ton for sale
2021 | Ref.: 300050216
Injection molding machine from 250 T up to 500 T HAITIAN, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used HAITIAN MA3800 III
Ref.: 300050216
Year: 2021
Brand: HAITIAN
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 380 ton
- Shot Weight (Max): 1128 g
- Distance Between Tie-Bars (H): 730 mm
- Distance Between Tie-Bars (V): 730 mm
- Platen Size (H): 510 mm
- Platen Size (V): 510 mm
- Screw Diameter: 70 mm
- Mould Height (Max): 730 mm
- Mould Height (Min): 280 mm
- Daylight Between Platens (Max): 1430 mm
- Opening Stroke (Max): 700 mm
- Ejector Force: 11 ton
- Ejector Stroke: 180 mm
- Screw Speed: 170 rpm
- Injection Volume: 1239 cm³
- Injection Pressure: 1830 bar
- Nozzle Stroke (Max): 322 mm
- Plasticising Capacity: 427 g/s
- Heating Capacity: 20.95 kW
- Oil Tank Capacity: 540 l
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 60 Hz
More information
