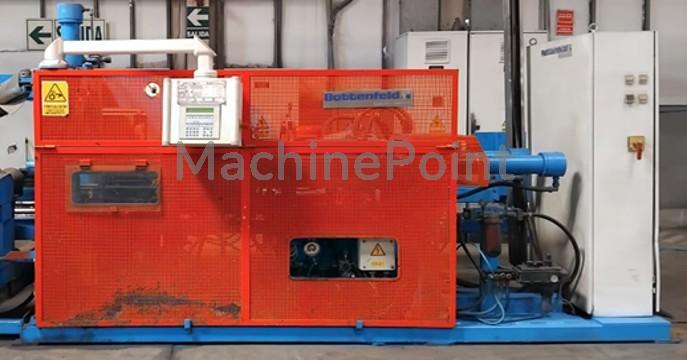

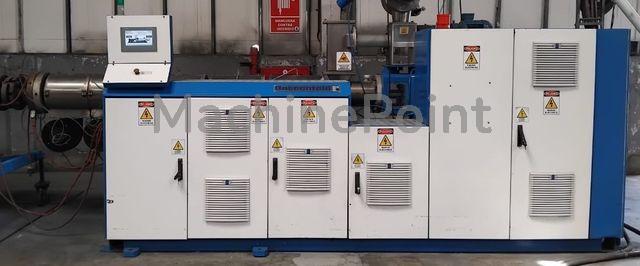

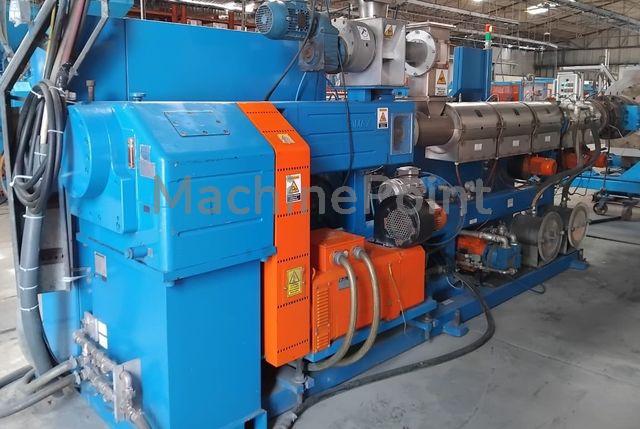

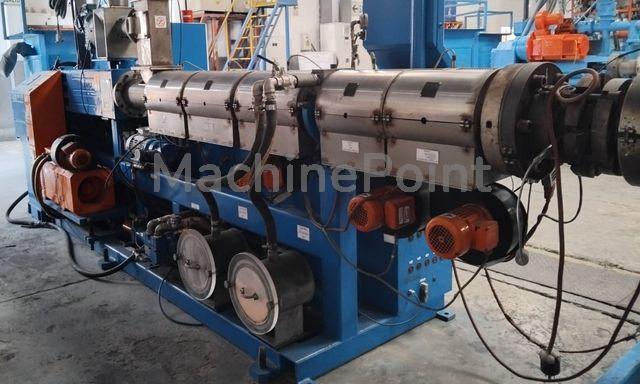

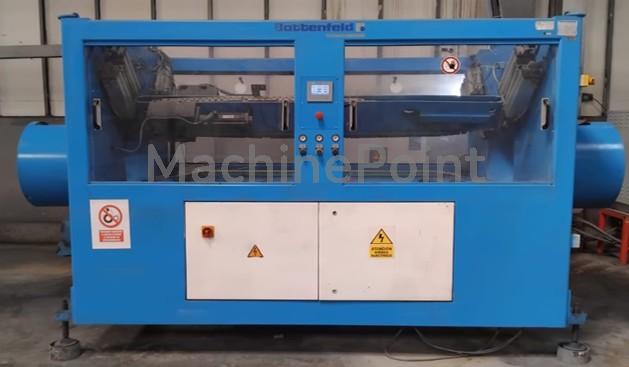

Used BATTENFELD BEX 2-92/28 of 2004 for sale

euromap 63

includes ROBOT Campetella model Speedy Plus CO502 year 1999

TECNOMATIC Large CNC robot Year of construction 2010 Traverse 2800mm Vertical 1800mm Extraction 900mm Load capacity 12-15kg

Winder Type: Dual Turret Maximum Roll Diameter: 30 in (760 mm) Maximum Roll Width:52 to 122 in (1321 to 3099 mm) Maximum Line Speed: Customer specifications to a maximum of 800 rpm (244 mpm) Maximum Roll Weight: 2500 lbs (1134 kg) Type of Material: Blown film Idler Roll Diameter:4.5 in (114 mm) Core Size(s):3 in or 6 in ID (76.2 mm or 152.4 mm) Air Required:90 psi @ 10 cfm plant air (6.0 bar) Type of Transfer: Adhesiveless automatic cutover Winding Method: AC flux vector centre drive

EXTRUSION LINE FOR THE PRODUCTION OF ALUMINIUM - PE-Xb (silane) COMPOSITE PIPES IN DIAMETER-RANGE 14-40 MM 1 Automation step 3 for BEX 1-60-30B (item 2.1) 1.1 BMCtouch NOTE Integration of haul-offs 1-3 via CAN-Bus 1.2 BMCtouch terminal on separate pillar incl. pivot-mounted arm for co-extruders 2+3 (E 25 and BEX 1-45-30B). Installation at inlet of cooling bath after coating process 2 Extruder 2.1 Extruder, BEX 1-60-30B 3 Die head for PE-Xb 3.1 Extrusion die, PE-X 50 4 Calibrating system 4.1 Pre-chamber, type V 63 5 Vacuum calibrator 5.1 Vacuum calibrator, VB2-63 VA - 9 m 6 Ultrasonic scanner 6.1 Ultrasonic scanner, USM 63/C-8 7 Cooling length 1 7.1 Spray cooling bath CB 63 VA - 6 m 8 Diameter measuring system 1 9 Haul-off 1 9.1 Belt haul-off, P 90 BF / 800 10 Co-extruder 1 for adhesive on inliner 10.1 Co-extruder, E 25.3 SU-25 D 11 Automation step 2 for co-extruder 1 (E 25.3) 12 Cross head (adhesive) 12.1 Extrusion die, E 45 BN 10 13 Diameter measuring system 2 14 Strip preparation 15 Forming- and welding station 16 Base frames 17 Haul-off 2 17.1 Belt haul-off, P 90 BF / 800 18 Diameter measuring system 3 19 Co-extruder 2 for adhesive coating on aluminium 19.1 Co-extruder E 25.3 SU-25 D 20 Automation step 2 for co-extruder 2 (E 25.3) 21 Co-extruder 3 for coating of outer layer 21.1 Extruder, BEX 1-45-30B 22 Automation step 2 for co-extruder 3 (BEX 1-45-30B) 23 Cross head (outer layer) 23.1 Extrusion die, E 40 HN 20 24. Cooling length 2 24.1 Cooling length KK 63 VA – 13 m 25 Diameter measuring system 4 26 Marking device - NOTE The marking device will be provided by customer. 27 Haul-off 3 27.1 Belt haul-off, P 90 BF / 800 28 Cutting unit 28.1 Pipe cutting device, RTA 63 E 29 Tip table 29.1 Tip table KR 100/50 30 Coiler Balzanelli TR 1350 includes tooling for diam: 14 mm 16 mm 20 mm
