Used AOKI SBIII-250LL-50S of 2010 for sale

2010 | Ref.: 300050225

Injection stretch blow moulding machines for PET bottles AOKI, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.

Data Sheet of Used AOKI SBIII-250LL-50S

Ref.: 300050225

Year: 2010

Brand: AOKI

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

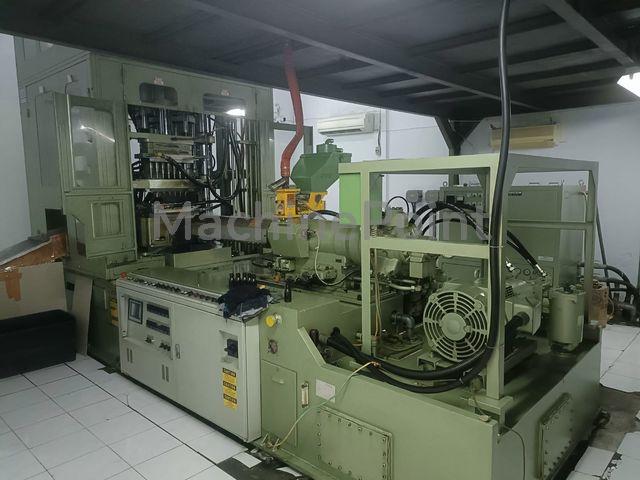

AOKI - SBIII-250LL-50S - Used machine

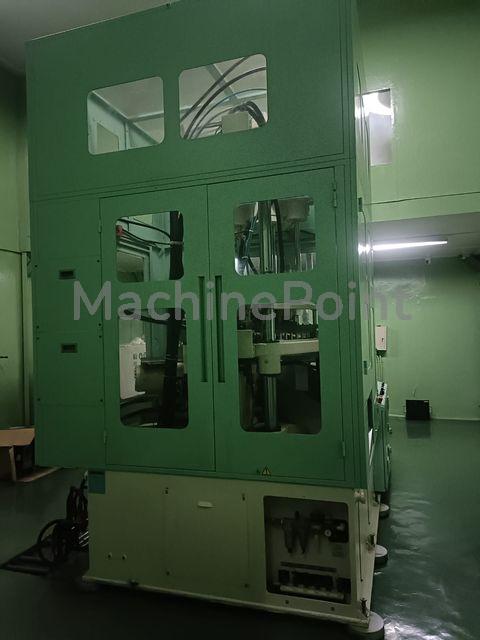

AOKI - SBIII-250LL-50S - Used machine

Technical Specifications:

    Other Specifications:

    Used injection stretch blow molding machine

    Brand: Aoki (made in Japan)
    Model: SBIII-250LL-50S
    Year: 2010
    Size Bottle : 60,90,120ml,

    This sale comes as a package deal with another machine,
    AOKI SBIII-250LL-50. Year 1997

    Included:
    Chiller : 2 Unit
    Dehumidifier : 2 Unit
    Compressor : Low and High Pressure
    Hopper Dryer Std : 5 Unit
    Horizontal Mixer : 3 Unit
    Crusher
    Cooling Motor Pump : 4 Unit
    Spare Part : 1 Lot

    Injection Cav + Hot Runner, Injection Core, Blow Core, Blow Mold and Ejector Rood : 1 Set
    Lid Cavity : 3 Set
    Blow Cell : 4 Set
    Blow Mold + Bottom : 1 Set

    Available Now!

    Other Details:

    Guarantee: Without guarantee

    Current condition: Disconnected. Can't be seen in running condition

    Availability: Immediate

    Frequency: 50 Hz

    MachinePoint's services:

    Loading and lashing

    Packaging

    Dismantling

    Complete Plant Solutions

    Refurbishing & Overhauling services

    Used Machinery Appraisals

    Transport of industrial machinery

    Similar Products:

    Injection stretch blow moulding machines for PET bottles NISSEI ASB 50MB V3

    NISSEI ASB 50MB V3

    Injection stretch blow moulding machines for PET bottles

    2009
    Ref: 300048838
    NISSEI ASB
    More information
    Injection stretch blow moulding machines for PET bottles NISSEI ASB PF 6-2B V4

    NISSEI ASB PF 6-2B V4

    Injection stretch blow moulding machines for PET bottles

    2015
    Ref: 300049296
    NISSEI ASB
    More information
    Injection stretch blow moulding machines for PET bottles NISSEI ASB 12M

    NISSEI ASB 12M

    Injection stretch blow moulding machines for PET bottles

    2014
    Ref: 300050239
    NISSEI ASB
    More information
    Injection stretch blow moulding machines for PET bottles NISSEI ASB PB170/170 - 32/8 MII

    NISSEI ASB PB170/170 - 32/8 MII

    Injection stretch blow moulding machines for PET bottles

    2009
    Ref: 300047228
    NISSEI ASB
    More information
    Injection stretch blow moulding machines for PET bottles NISSEI ASB PF 6-2B V2

    NISSEI ASB PF 6-2B V2

    Injection stretch blow moulding machines for PET bottles

    2002
    Ref: 300047881
    NISSEI ASB
    More information
    Stretch blow moulding machines SIDE TMS 2004e

    SIDE TMS 2004e

    Stretch blow moulding machines

    2003
    Ref: 300034164
    SIDE
    More information
    Stretch blow moulding machines KRONES Contiform S14

    KRONES Contiform S14

    Stretch blow moulding machines

    2006
    Ref: 300037132
    KRONES
    More information
    Stretch blow moulding machines TEREKAS Flex Blow 4

    TEREKAS Flex Blow 4

    Stretch blow moulding machines

    2016
    Ref: 300038310
    TEREKAS
    More information

    Machines sold in the past:

    Aoki ISBM SBIII - 250LL - 50S Includes: Mitsubishi inverter Colour mixer Hopper and loader Compressor 57.000 hours In production and available immediately!
    Used Aoki ISBM SBIII - 150N - 12 Year of manufacture: 2011 Includes dryer No mold Working hours: 54.000 In production and available immediately!
    Aoki SBIII-250-50 - 2001 The # cavities depends on the container body dimensions and fluid capacity. The number of cavities range from 10 cavities down to 1 cavity depending on these parameters. This information is available via Aoki technical specifications. At the moment it is running with 2 cavity- neck diameter 80- body diameter 105- approximate capacity 150ml Screw diameter 64mm Injection capacity- 391 cm/shot Injection force 311.8 kN Screw stroke 121.5mm Screw speed 1.98 S-1 preform length 115 mm Machine can be seen running. NO molds are included.
    Aoki SBIII-250LL-50S from 2003 The # cavities depends on the container body dimensions and fluid capacity. The number of cavities range from 10 cavities down to 1 cavity depending on these parameters. Screw diameter- 54mm Injection capacity- 386 cm·/shot Injection force- Kn 389.3 Screw stroke: 120mm Screw speed- 145 min Nozzle touch forc- 18.5 kN Claming force- 490.6 kN Clamping stroke - 605mm Preform length below neck- 160mm Blow mold clamp force- 297.2 kN Not currently in production but machine is operational and can be viewed in operation Available immediately!
    Injection Stretch blow moulding machine Aoki AL-250-50S The machine is almost brand new. It was produced in 2021 February and installed in 2021 July The machine includes : - AL-250-50S ISBM machine - Wittmann Dry MAX E60 PET dryer (2013) The machine has the following extra options: - EN (European Norm compatibility) - Blow clamping short stroke - blow core short stroke - Lip cooling circuit - blow & bottom mold chiller cooling, The machine is NOT included: - Mitsubishi RV-3SB , 5 axes take out robot with complete cell / conveyor , controller and teaching pendant. The machine is in production
