Used NEGRI BOSSI 15000H 22500 of 2006 for sale
2006 | Ref.: 300050243
Injection molding machine from 1000 T NEGRI BOSSI, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.

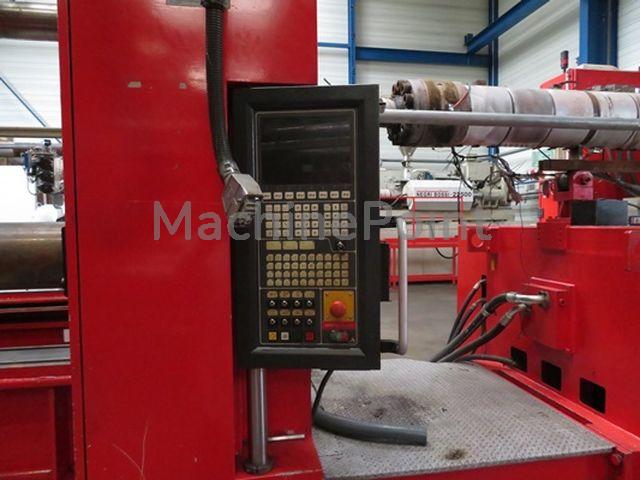

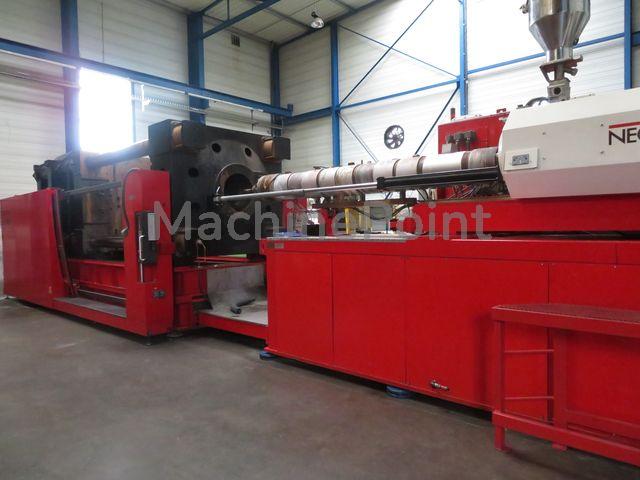

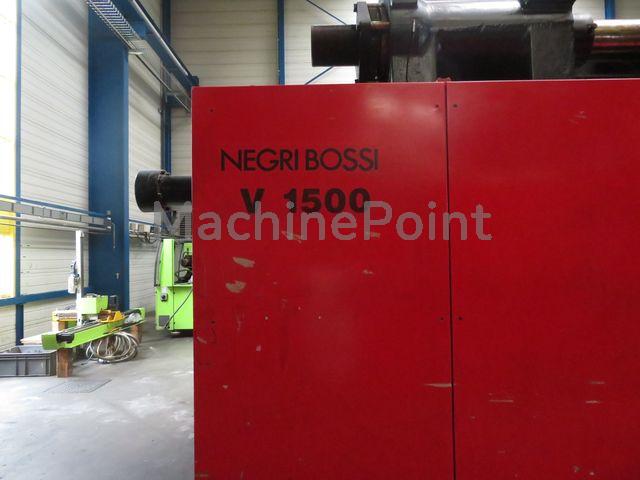

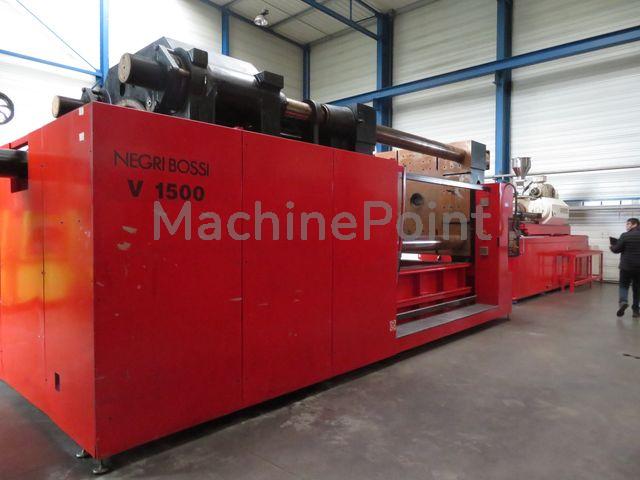

Data Sheet of Used NEGRI BOSSI 15000H 22500
Ref.: 300050243
Year: 2006
Brand: NEGRI BOSSI
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 1500 ton
- Shot Weight (Max): 12061 g
- Distance Between Tie-Bars (H): 1400 mm
- Distance Between Tie-Bars (V): 1250 mm
- Platen Size (H): 2060 mm
- Platen Size (V): 1950 mm
- Screw Diameter: 150 mm
- Mould Thickness (Max): 1500 mm
- Mould Thickness (Min): 600 mm
- Opening Stroke (Max): 1500 mm
- Core Pulls: Yes
- Number Of Core Pulls: 2
- Injection Volume: 13254 cm³
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
