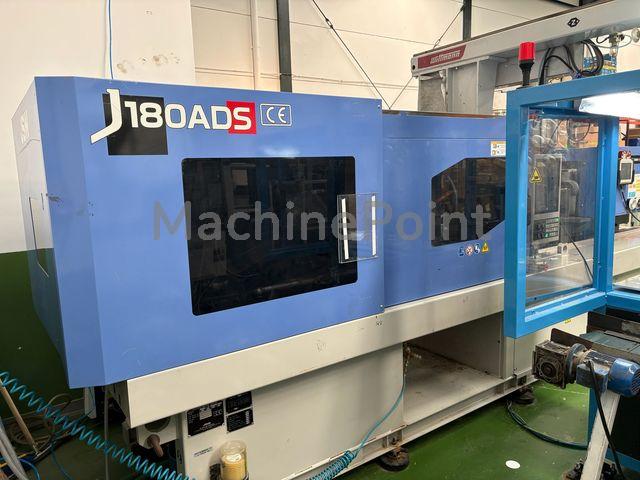

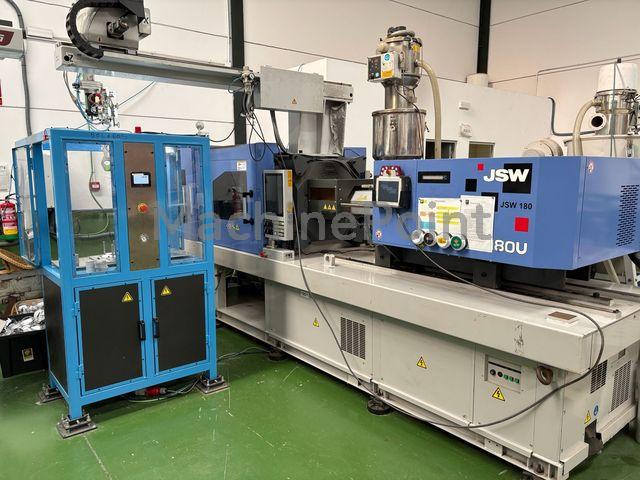

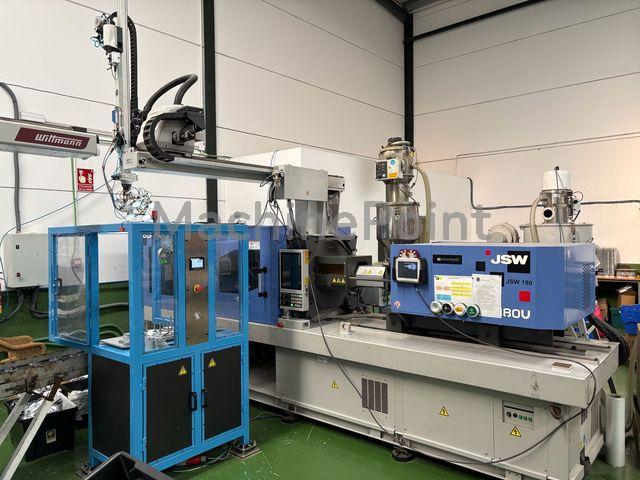

Used JSW J180ADS-180U of 2019 for sale
2019 | Ref.: 300050250
Injection molding machine up to 250 T JSW, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.
Data Sheet of Used JSW J180ADS-180U
Ref.: 300050250
Year: 2019
Brand: JSW
Status:
For sale
Delivery time: 1 - 2 months
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 180 ton
- Shot Weight (Max): 160 g
- Distance Between Tie-Bars (H): 590 mm
- Distance Between Tie-Bars (V): 560 mm
- Screw Diameter: 40 mm
- Mould Thickness (Max): 600 mm
- Mould Thickness (Min): 200 mm
- Daylight Between Platens (Max): 1070 mm
- Opening Stroke (Max): 470 mm
- Injection Volume: 176 cm³
- Injection Pressure: 1990 bar
Other Specifications:
Robot WITTMANN PRIMUS 16-1325 year 2020 included
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: 1 - 2 months
Voltage: 400 V Triphase
Frequency: 50 Hz
Full Electric
