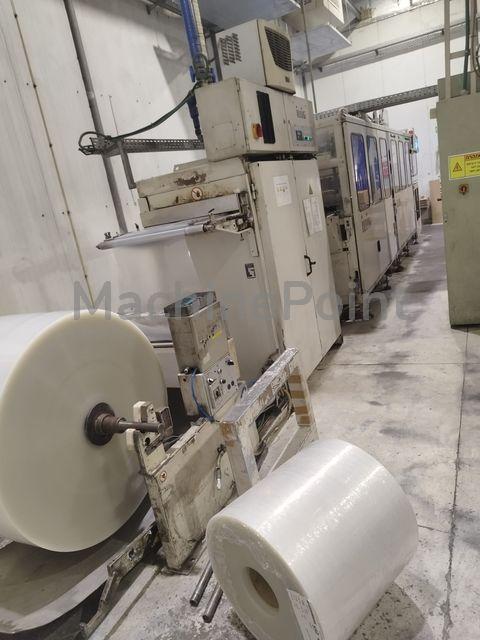

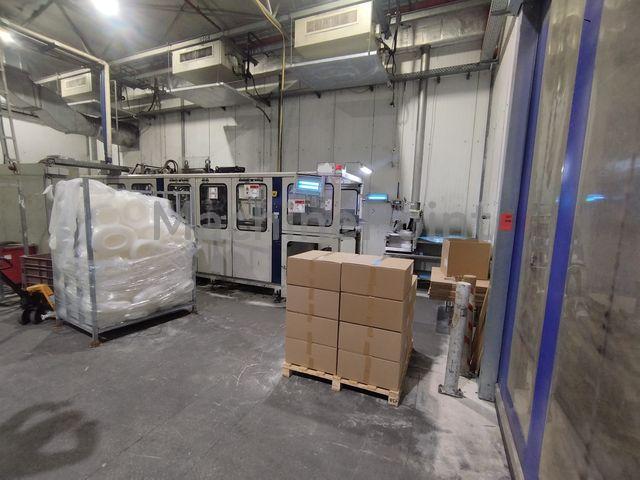

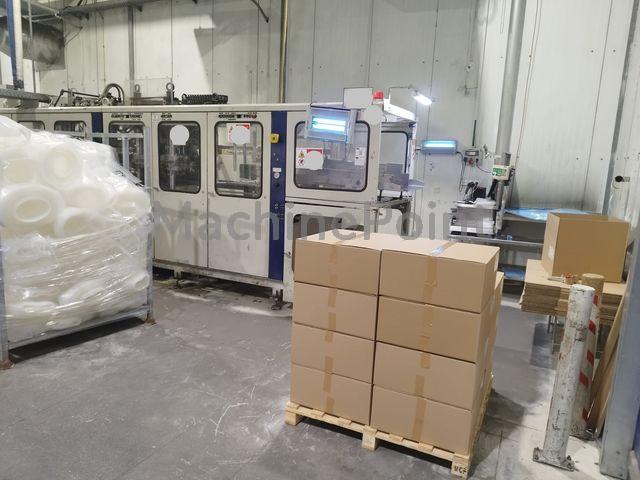

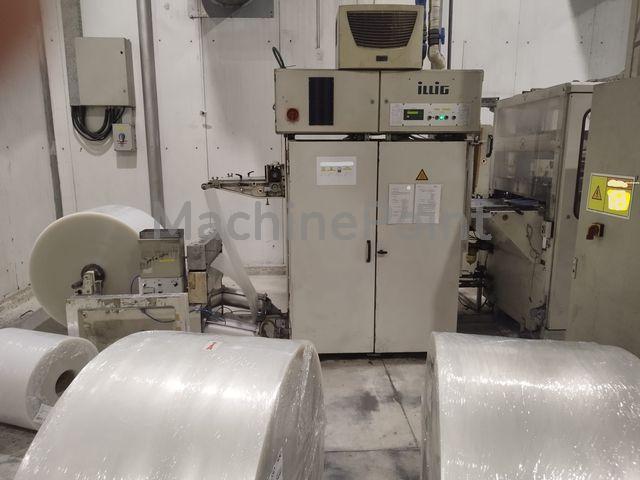

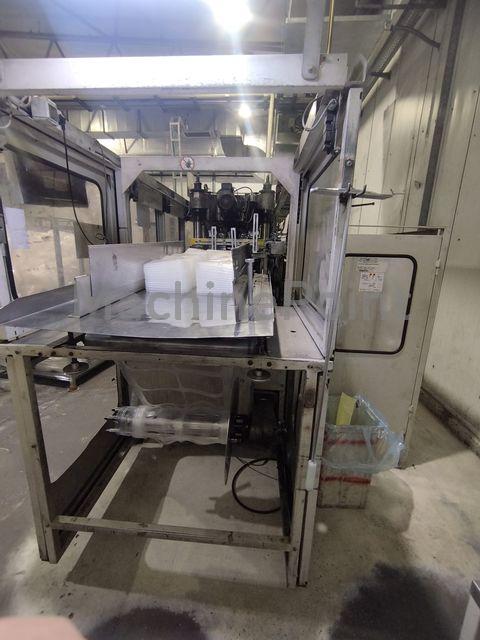

Used ILLIG RDKP 54 D of 2005 for sale

Maximum speed: 25 cycles/min Minimum-maximum internal frame dimensions: 300x260 - 690x540mm Min-max material width: 330-720mm Forming height above the sheet: 120mm Forming height below the sheet: 40mm Max cutting surface on upper/lower table: 700x550mm Cutting power: 300kN

This machine is capable of normal vacuum forming, High pressure and twin sheet forming preheater station

Working hours: 28,400 Cycles/min: 22 Min-max forming area: 300x100 - 500x350mm Min-max material width: 350-550mm Cutting power: 300kN Max upper table heating temperature: 200 degrees

Full set of Illig RDM 70k (3g) line. Rol stand + preheater + RDM 70k(3g) + PH Illig stacker + grinder with blower Material Roll Stand, Type ROK 800 Material roll stand for material rolls up to 1200 mm diameter; Material width max. 805 mm 1 set of clamping cones for reel cores with inside diameter of 70 - 95 mm ILLIG roller pre-heater model VHW 90/2b material width on feed side and discharge side max. 900 mm number of heating rolls 2 roll diameter 600 mm for material thickness up to approx. 1.8 mm material contact with roll approx. 2948 mm heating roll temperature max. 140 °C ILLIG automatic high-speed thermoformer RDM 70K height of formed part max. negative 125 / 150 mm height of formed part max. positive 15 mm material width max. 730 mm number of idle cycles max. 51 /min number of production cycles max. 44 /min ILLIG Product-Handling Stacker suitable to stack thermoformed products arranged in R, W and X layout Technical Data Usable area PH 70 730 x 350 mm Height of formed part min. 25 mm Height of formed part max. 150 mm Diameter of product min. 40 mm Diameter of product max. 150 mm Length of product stack max. 730 mm Output rate of product stack max. 1200 stack/h Number of cycles run at no-load max PH 70, 45 cycles/min RS 75 b ILLIG skeletal granulators Max. material draw-in width 810 mm Max. material thickness 2.5 mm Min. material thickness 0.2 mm Conveyor for remaining material FD 74b The conveyor transports remaining material by means of air flow into a silo or a store tank. cutting length, depending on material ------------------------------------------------------- max. cutting length in mm: PS-HI 7 700 mm, PP 6 400 mm, PETG 6 200 mm, APET 6 000 mm, PVC 6 400 mm,

Full set of Illig RDM 70k (3g) line. Rol stand + preheater + RDM 70k(3g) + PH Illig stacker + grinder with blower Material Roll Stand, Type ROK 800 Material roll stand for material rolls up to 1200 mm diameter; Material width max. 805 mm 1 set of clamping cones for reel cores with inside diameter of 70 - 95 mm ILLIG roller pre-heater model VHW 90/2b material width on feed side and discharge side max. 900 mm number of heating rolls 2 roll diameter 600 mm for material thickness up to approx. 1.8 mm material contact with roll approx. 2948 mm heating roll temperature max. 140 °C ILLIG automatic high-speed thermoformer RDM 70K height of formed part max. negative 125 / 150 mm height of formed part max. positive 15 mm material width max. 730 mm number of idle cycles max. 51 /min number of production cycles max. 44 /min Illig Stacking device PH 70 to suit 18-up cup tool straight arrangement, Ø 92.5, latch stacking RS 75 b ILLIG skeletal granulators Conveyor for remaining material FD 74 The conveyor transports remaining material by means of air flow into a silo or a store tank. cutting length, depending on material ------------------------------------------------------- max. cutting length in mm: PS-HI 7 700 mm, PP 6 400 mm, PETG 6 200 mm, APET 6 000 mm, PVC 6 400 mm,
