Used FIMIC RAS 400 of 2017 for sale
Screen changer for extruders FIMIC, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used FIMIC RAS 400
Ref.: 300050303
Year: 2017
Brand: FIMIC
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Screen surface: 120600 mm²
- Throughput: 700 kg/h
Other Specifications:

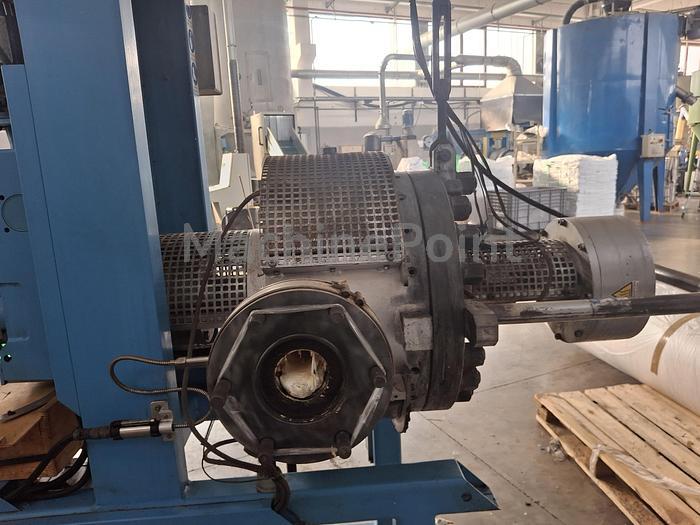

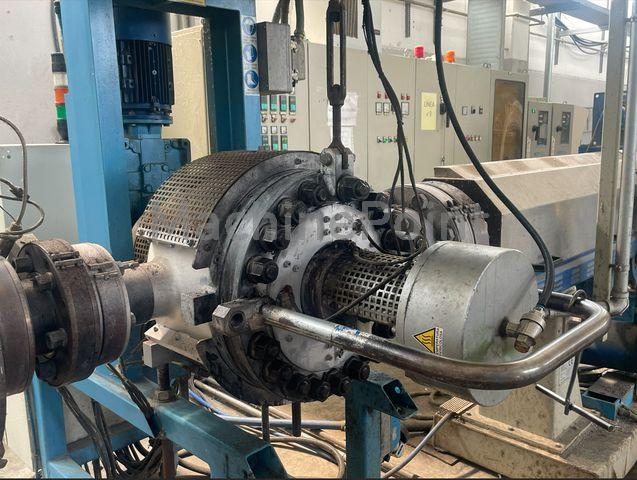

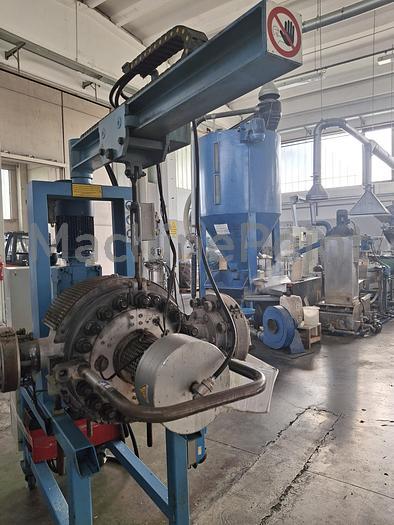

Automatic self-cleaning melt filter
The filter was newly installed in 2017 and has been operating in 16-hour shifts to regenerate LDPE film from post industrial waste.
The filter has always been used in scraper mode; the optional kit for counterflow operation has never been used and is therefore brand new.
Spare screens of 100, 150, and 200 microns are included.
The unit is ready for connection via industrial connectors, making it plug-and-play on any system.
Since it was used to replace a conventional filter on an existing extruder, temperature control is managed by the extruder side.

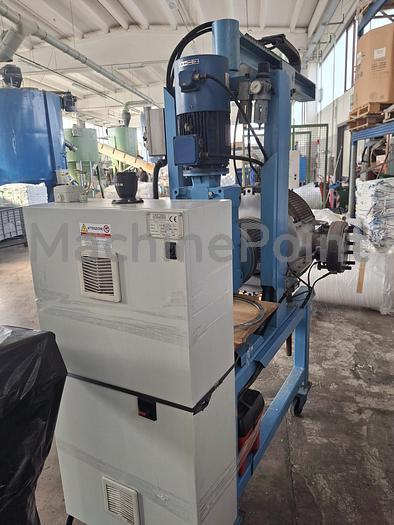

The filter has its own control panel, managed by a PLC and capable of exchanging all signals with the system.
A remote assistance module is also included.
Before shutting it down, a report was generated by Fimic.
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 3 Kw
