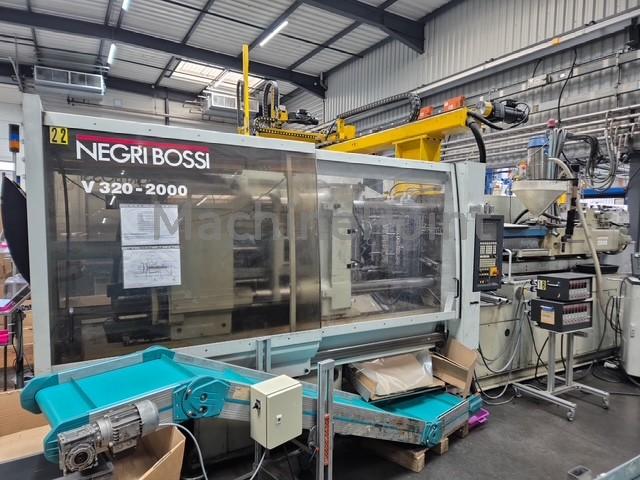

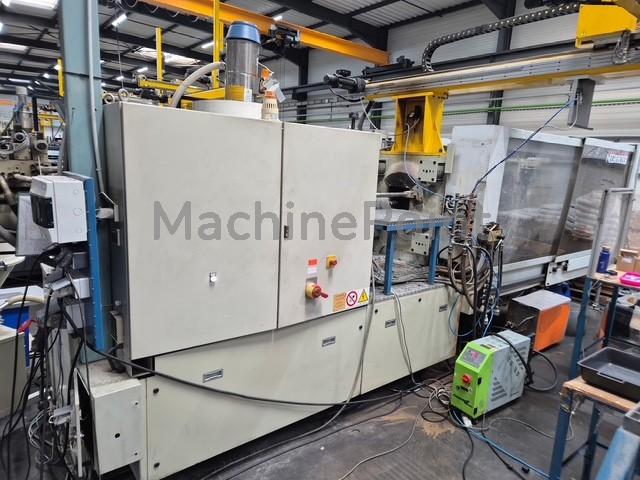

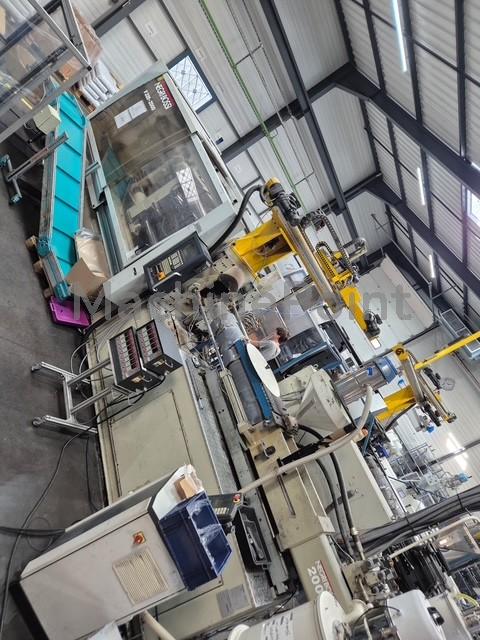

Used NEGRI BOSSI V320 – 3200 H - 2000 of 2000 for sale
2000 | Ref.: 300050324
Injection molding machine from 250 T up to 500 T NEGRI BOSSI, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.
Data Sheet of Used NEGRI BOSSI V320 – 3200 H - 2000
Ref.: 300050324
Year: 2000
Brand: NEGRI BOSSI
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 320 ton
- Shot Weight (Max): 1046 g
- Distance Between Tie-Bars (H): 630 mm
- Distance Between Tie-Bars (V): 570 mm
- Platen Size (H): 1000 mm
- Platen Size (V): 955 mm
- Screw Diameter: 70 mm
- Tie-Bar Diameter: 110 mm
- Daylight Between Platens (Max): 700 mm
- Opening Stroke (Max): 630 mm
- Ejector Force: 7 ton
- Ejector Stroke: 250 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Injection Volume: 1150 cm³
- Injection Pressure: 1700 bar
- Injection Rate: 340 cm³/s
- Nozzle Force (Max): 7 ton
- Nozzle Stroke (Max): 450 mm
- Plasticising Capacity: 70 g/s
- Oil Tank Capacity: 300 l
Other Specifications:
52.000 hours in production
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 65 Kw
More information
