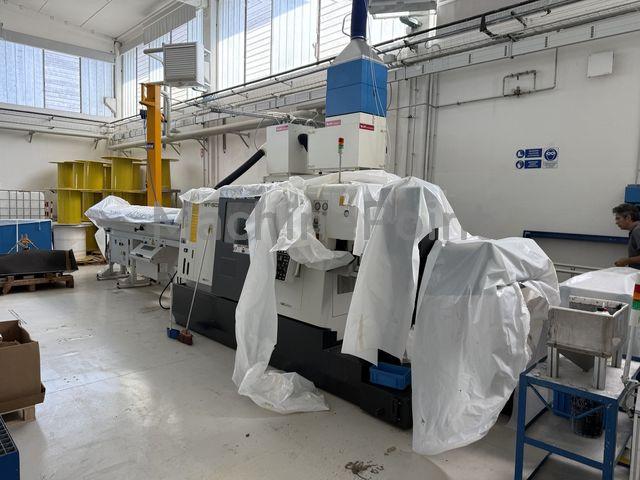

Used NAKAMURA TOME WT-150II twin-spindle cnc turning centre of 2017 for sale
twin-spindle CNC turning centre NAKAMURA TOME, MachinePoint chooses the best machinery on sale in the market and we offer our clients a selection of high quality machinery.
Data Sheet of Used NAKAMURA TOME WT-150II
Ref.: 300050325
Year: 2017
Brand: NAKAMURA TOME
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
twin-spindle CNC turning centre
Other Specifications:
Working Hours : 3000
The machine is supplied with:

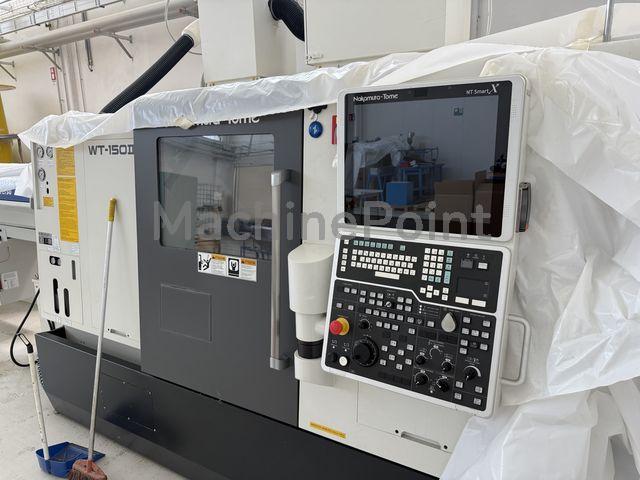

Fanuc 31iB PC-based numerical control with 19" LCD control panel and Fanuc-Luckbei automatic programming
19" colour display with touch screen
C-axis with continuous control over 360,000 positions and brake on left and right spindle
Two Unilock spindles model SMH65-ASA6 with 65 mm bar passage and 11/15 kW motor, complete with Unilock collet chucks diameter 65
Sub-spindle with 51 mm bar passage and 7.5/11 kW motor with full numerical control, complete with reduced-diameter Unilock collet chucks
Rigid tapping on spindle and driven tools
"Air Bag" impact protection system
Work light
Reduction sleeve kit
Operating manuals
CEE marking
Tool holder set
Enlarged tank with 2 medium-pressure pumps
Hydraulic unit with pressure sensor for system protection against pressure drops
Bar feeder interface
Spindle speed override for programmed RPM regulation
Three-colour end-of-cycle light
Auto shut-off
Preparation for type-G bar machining, including parts catcher for right spindle discharge, belt conveyor and gripper
Part transfer cleaning and washing option, including air blow through sub-spindle, external washing jets on both spindles and water cleaning jet through sub-spindle with 6-bar pump
Polygon turning function (flat surface machining on a rotating component using dedicated milling cutters on the CNC lathe) without tool holder
Manual Handle retrace
Cutting force monitoring system, tool life management and tool wear control
Automatic fast workpiece zero search system "Navigator"
Wireless net monitor (PC communication software)

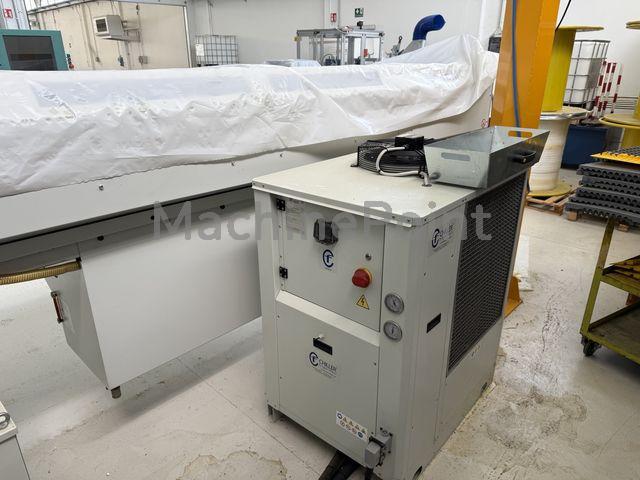

Original WY150 chiller-tank filter kit
High-pressure unit mod. PAPS 21/50 oil with maximum pressure of 70 Bar, serial no. A20281123
Built-in chip conveyor: chip evacuation unit Mod. NI50r/200+CEST*2+BS+VA+POMPA*2+FC*2+LES+LCM+LCA, serial no. M02259

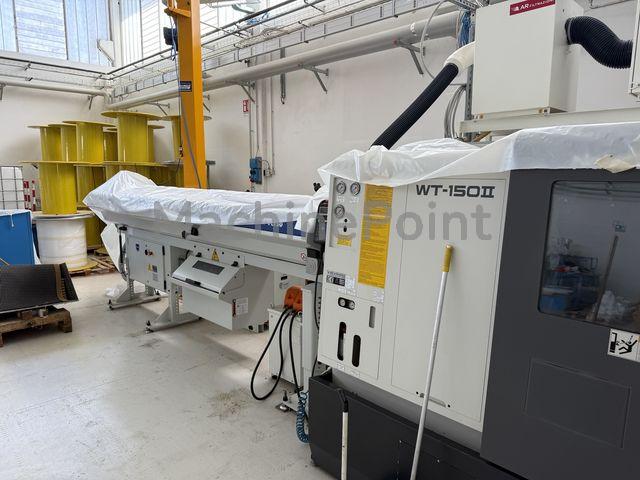

IEMCA automatic bar loader model Master 880 MP Verso, serial no. 021808SA05, with high loading platform and two sets of guide channels for machining diameters from 10 to 65 mm
Arno 2VFA GM YB air purifier, serial no. 043718
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
Voltage: 380 V Triphase
, Voltage: 400 V Triphase
, Voltage: 415 V Triphase
Frequency: 50 Hz
, Frequency: 60 Hz
