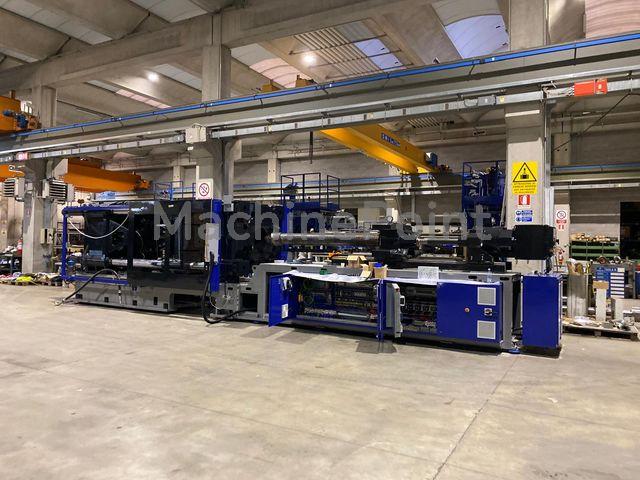

Used ITALTECH Impetus 900 of 2020 for sale
2020 | Ref.: 300050326
Injection molding machine from 500 T up to 1000 T ITALTECH, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used ITALTECH Impetus 900
Ref.: 300050326
Year: 2020
Brand: ITALTECH
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 900 ton
- Shot Weight (Max): 3174 g
- Distance Between Tie-Bars (H): 1120 mm
- Distance Between Tie-Bars (V): 1020 mm
- Platen Size (H): 1620 mm
- Platen Size (V): 1520 mm
- Screw Diameter: 120 mm
- Tie-Bar Diameter: 185 mm
- Mould Thickness (Max): 1100 mm
- Mould Thickness (Min): 400 mm
- Daylight Between Platens (Max): 2200 mm
- Opening Stroke (Max): 1100 mm
- Ejector Force: 11.8 ton
- Ejector Stroke: 350 mm
- Dry Cycle (S): 5 s
- Screw L/D Ratio: 20
- Screw Speed: 165 rpm
- Screw Torque: 8184 N·m
- Injection Volume: 6785 cm³
- Injection Pressure: 1523 bar
- Injection Rate: 1108 cm³/s
- Plasticising Capacity: 190 g/s
- Heating Zones: 6
- Heating Capacity: 66 kW
- Oil Tank Capacity: 1300 l
Other Specifications:
Italtech press, model Impetus 900
Year 2020
Toggle-type clamping unit
Hydraulic extruder unit with inverter

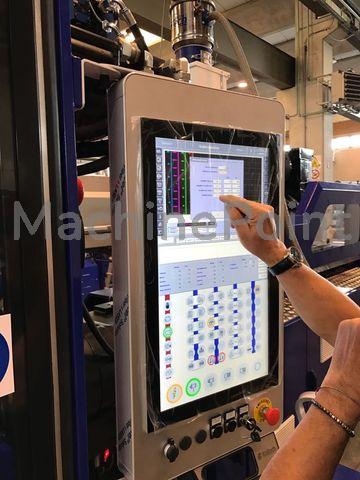

Gefran control system
Machine reconditioned and tested
12-month warranty on spare parts
Installation included within Europe. Please enquire for prices outside Europe.
Loading onto lorry/container included
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 237 Kw
