Used ITALTECH Impetus bt 600 of 2022 for sale
2022 | Ref.: 300050327
Injection molding machine from 500 T up to 1000 T ITALTECH, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used ITALTECH Impetus bt 600
Ref.: 300050327
Year: 2022
Brand: ITALTECH
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 600 ton
- Shot Weight (Max): 2244 g
- Distance Between Tie-Bars (H): 900 mm
- Distance Between Tie-Bars (V): 820 mm
- Platen Size (H): 1315 mm
- Platen Size (V): 1230 mm
- Screw Diameter: 85 mm
- Mould Thickness (Max): 850 mm
- Mould Thickness (Min): 350 mm
- Opening Stroke (Max): 900 mm
- Ejector Force: 8.8 ton
- Ejector Stroke: 300 mm
- Screw L/D Ratio: 21
- Screw Speed: 130 rpm
- Injection Volume: 2439 cm³
- Injection Pressure: 1694 bar
- Injection Rate: 606 cm³/s
- Plasticising Capacity: 138 g/s
- Heating Zones: 6
- Heating Capacity: 33 kW
- Oil Tank Capacity: 800 l
Other Specifications:

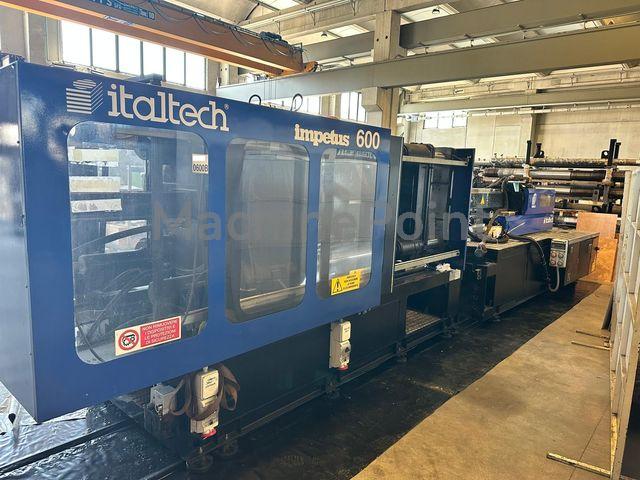

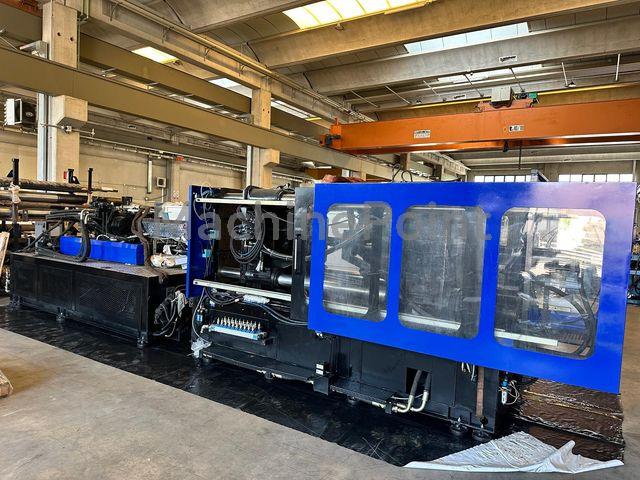

Italtech press, model Impetus BT 600
Year 2022
Toggle-type clamping unit
Hydraulic extrusion unit with inverter

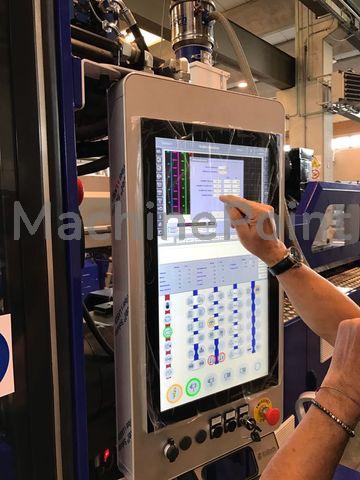

B&R digital control system
Machine reconditioned and tested
12-month warranty on spare parts
Installation included within Europe. Price to be quoted for destinations outside Europe.
Loading onto lorry/container included
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
