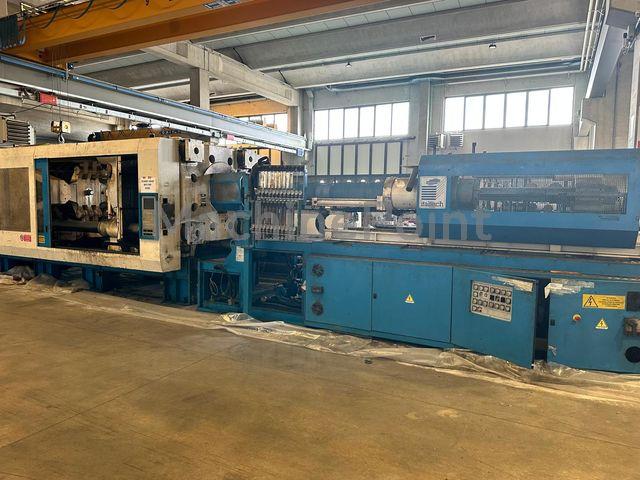

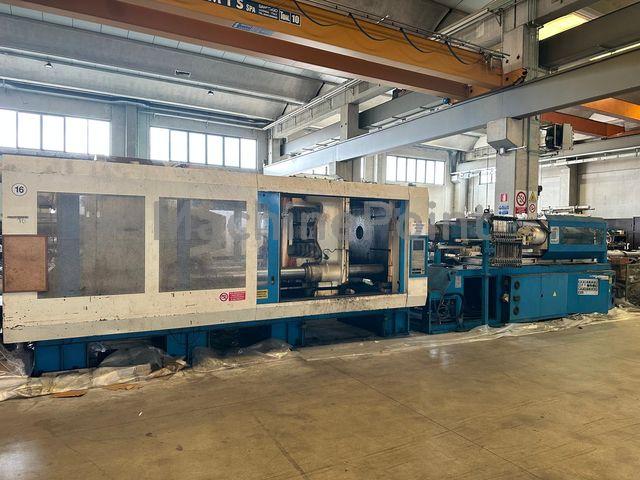

Used ITALTECH Impetus 1200 of 2018 for sale
2018 | Ref.: 300050329
Injection molding machine from 1000 T ITALTECH, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.
Data Sheet of Used ITALTECH Impetus 1200
Ref.: 300050329
Year: 2018
Brand: ITALTECH
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 1200 ton
- Shot Weight (Max): 10506 g
- Distance Between Tie-Bars (H): 1250 mm
- Distance Between Tie-Bars (V): 1250 mm
- Platen Size (H): 1830 mm
- Platen Size (V): 1830 mm
- Screw Diameter: 140 mm
- Tie-Bar Diameter: 220 mm
- Mould Thickness (Max): 1350 mm
- Mould Thickness (Min): 450 mm
- Daylight Between Platens (Max): 2700 mm
- Opening Stroke (Max): 1350 mm
- Ejector Force: 13.5 ton
- Ejector Stroke: 254 mm
- Dry Cycle (S): 7 s
- Screw L/D Ratio: 23
- Screw Speed: 90 rpm
- Screw Torque: 9200 N·m
- Injection Volume: 11545 cm³
- Injection Pressure: 1730 bar
- Injection Rate: 1230 cm³/s
- Plasticising Capacity: 145 g/s
- Heating Zones: 8
- Heating Capacity: 108 kW
- Oil Tank Capacity: 1350 l
- Orientation: Horizontal
Other Specifications:
Italtech press, model Impetus 1200
Year 2018
Toggle-type clamping unit
Electric die-setting unit with inverter
Gefran control system
Machine reconditioned and tested
12-month warranty on spare parts
Installation included within Europe. Please enquire for prices outside Europe.
Loading onto lorry/container included
Other Details:
Guarantee: Without guarantee
Current condition: Dismantled. Can be assembled to see running in dry cycle
Availability: Immediate
Voltage: 381 Kw
