Used KIEFEL KIRION W1600 Plus2 of 2006 for sale

2006 | Ref.: 300050338

Coextrusion lines KIEFEL, The team at MachinePoint will accompany you through the whole process of buying the machine.

Data Sheet of Used KIEFEL KIRION W1600 Plus2

Ref.: 300050338

Year: 2006

Brand: KIEFEL

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

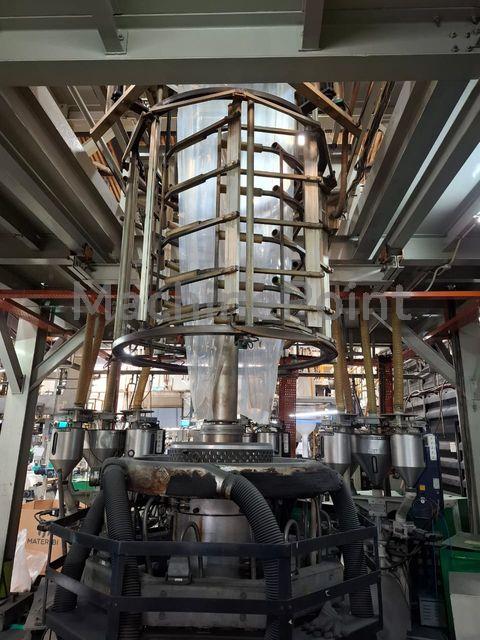

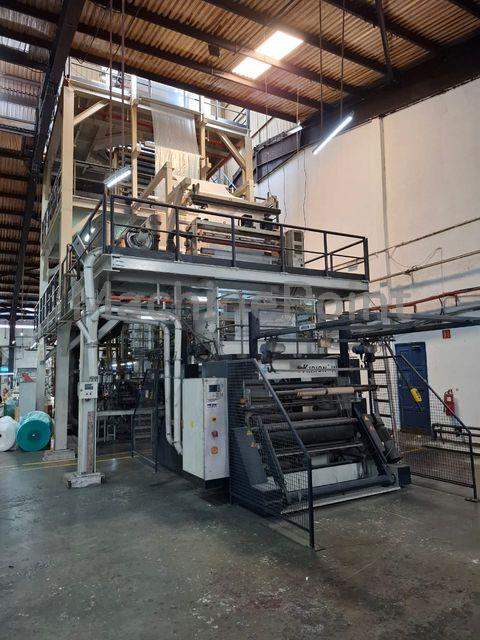

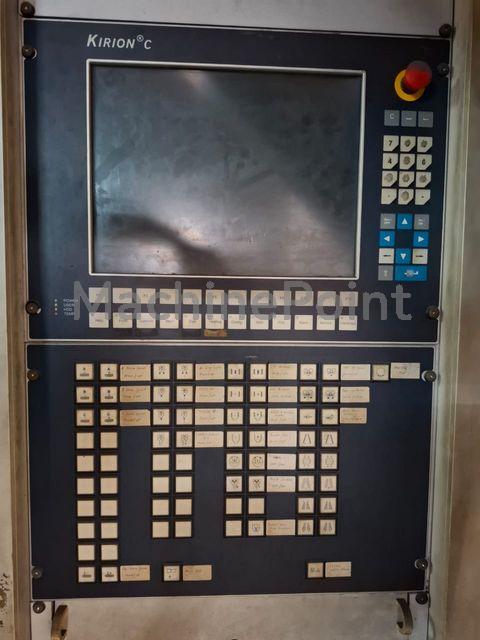

KIEFEL - KIRION W1600 Plus2 - Used machine

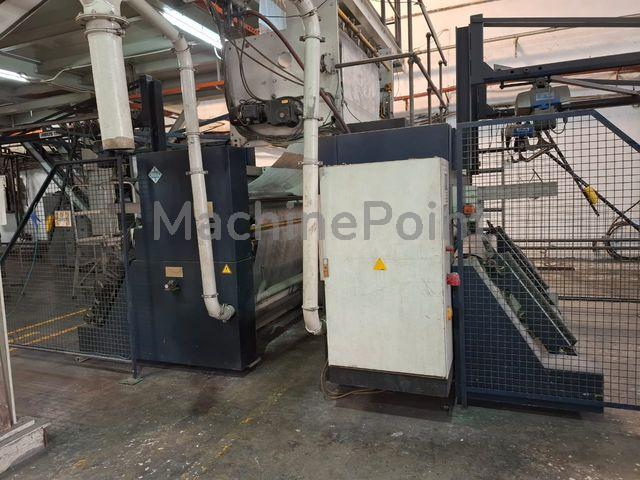

KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine
KIEFEL - KIRION W1600 Plus2 - Used machine

Technical Specifications:

  • Materials: LLDPE, LDPE, MDPE, mLLDPE
  • Film Width (Max): 1500 mm
  • Output Capacity: 150 kg/h
  • Number Of Extruders: 3
  • Layers: 3

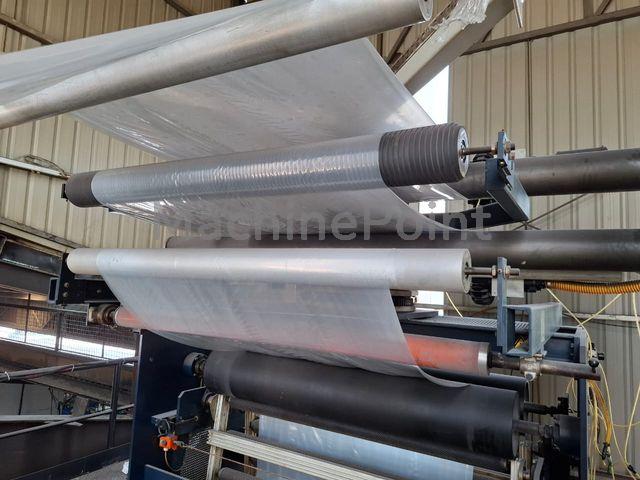

  • Rewind Unit Type: Double 1680 mm

Other Specifications:

Layer distribution: A (30%), B (40%), C (30%)

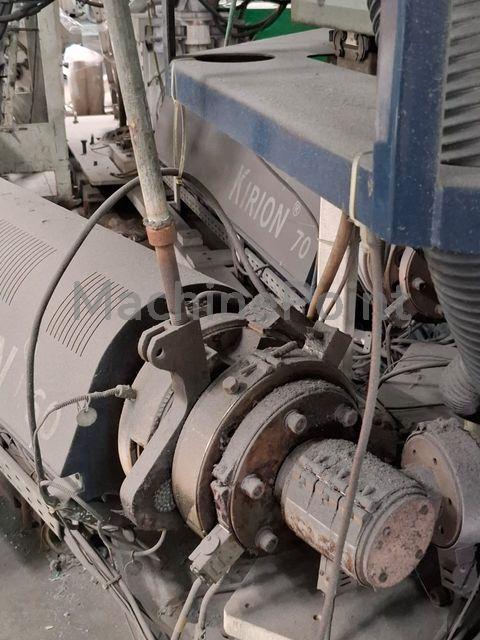

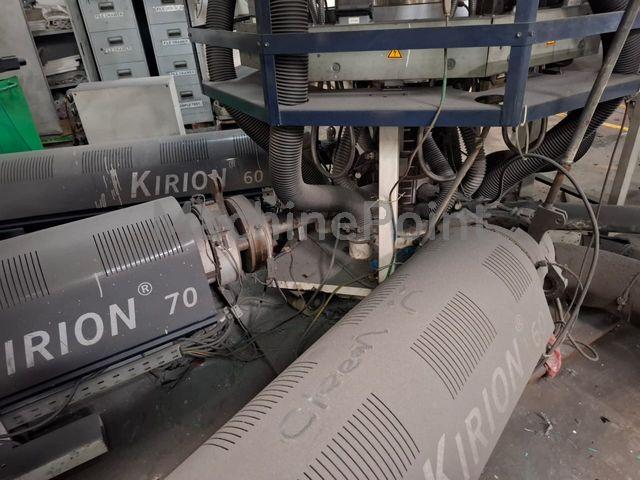

Screw size: A (60 mm), B (70 mm), C (70 mm)

Min. Width: 800 mm
Thickness: 0,02-0,2 mm
Die diameter: 200 mm
Corona treater size: 1500 mm

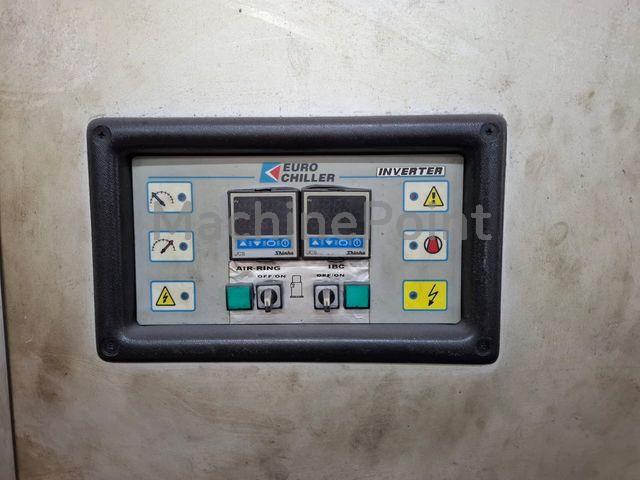

EURO Chiller: 21 kW (30 HP)

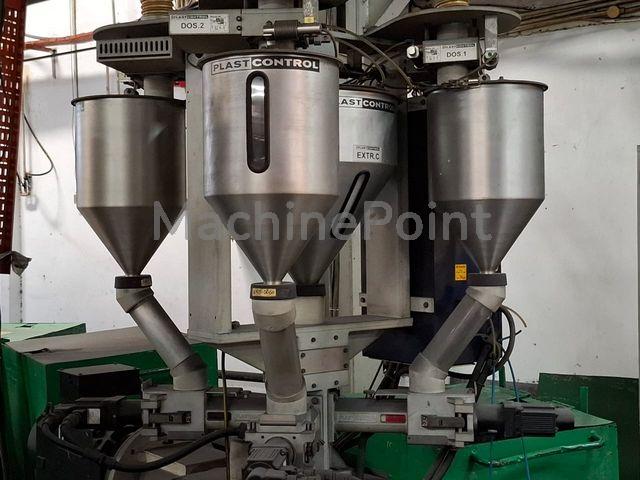

Batch gravimetric dosing system 4 components for each screw - PLASTCONTROL
Manually screen changer on each screw without machine stopping
IBC

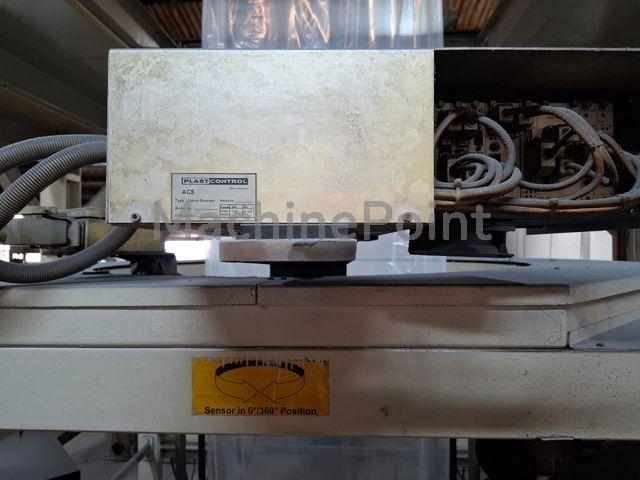

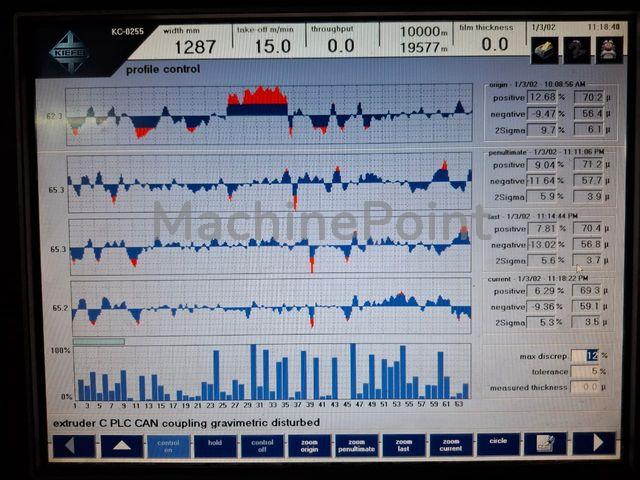

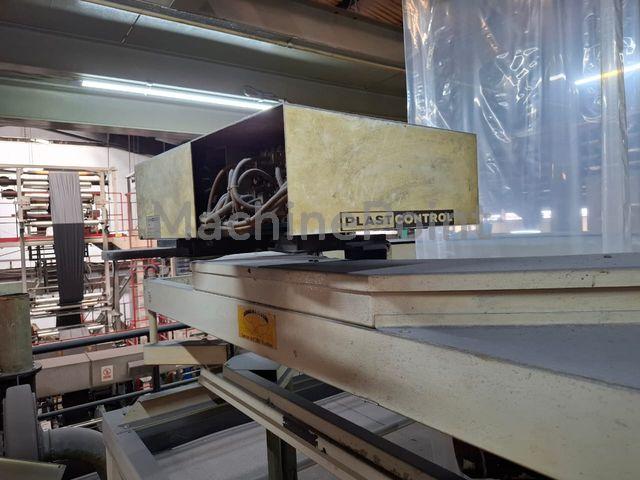

Contact-type online thickness measurement with 64 points - PLASTCONTROL

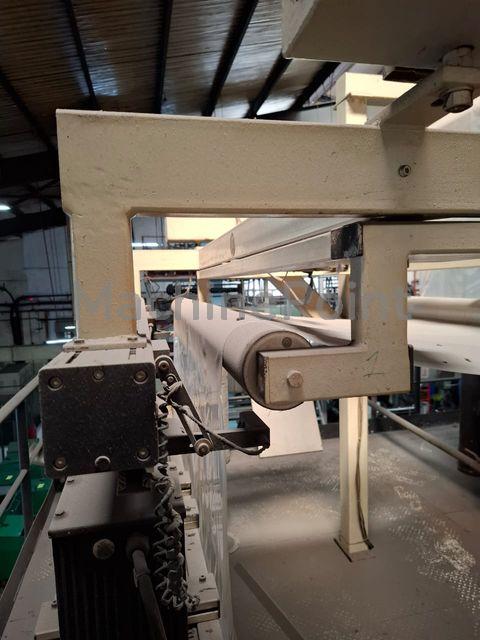

Horizontal oscillating take off unit - 1750 mm
Automatic edge guide system
Trim removal with blower system
Aluminium pneumatic winding shaft Ø76 mm)

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown with material

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 30 Kw
