Used OLMAS C44AP – 60 of 2018 for sale
Extrusion line for corrugated pipes OLMAS, The team at MachinePoint will accompany you through the whole process of buying the machine.
Data Sheet of Used OLMAS C44AP – 60
Ref.: 300050348
Year: 2018
Brand: OLMAS
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Maximum Diameter: 125 mm
- Minimum Diameter: 25 mm
- Double Wall: No
Other Specifications:

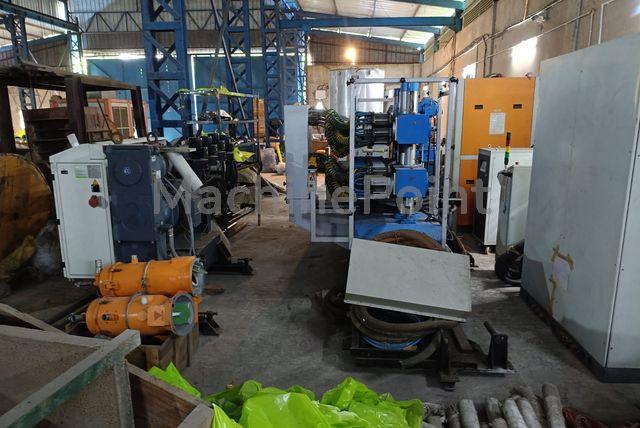

Extrusion line for production of PA6 corrugated pipes water cooled corrugator
Description of items to be supplied

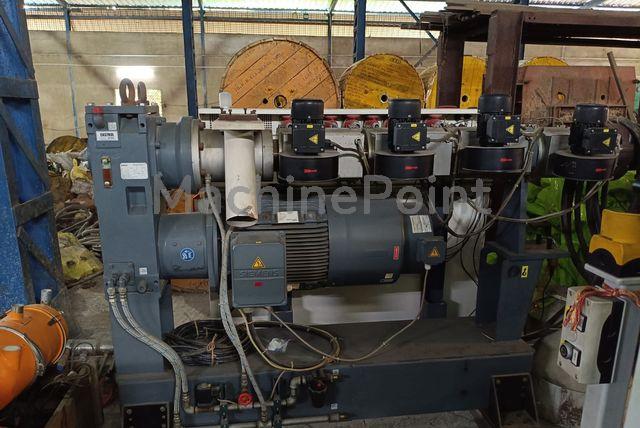

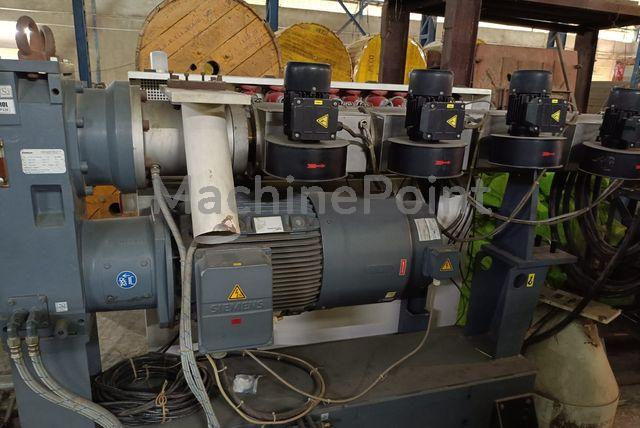

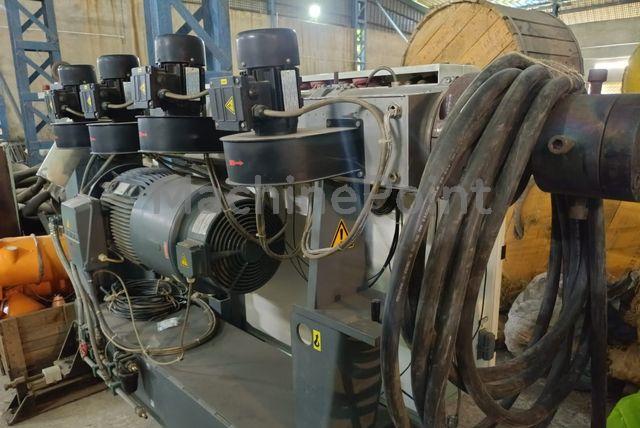

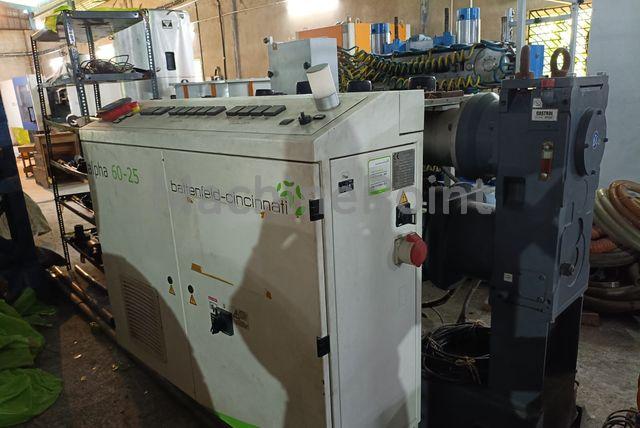

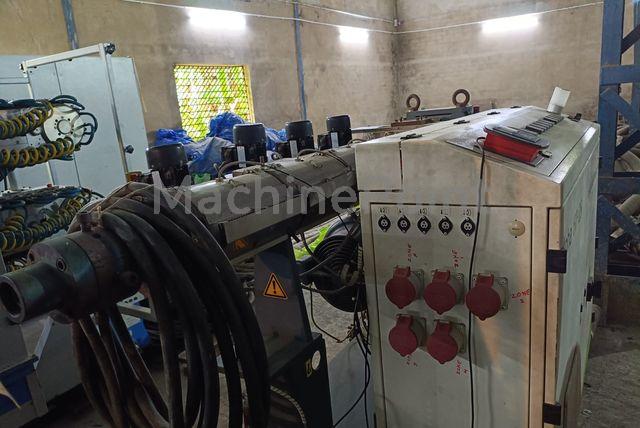

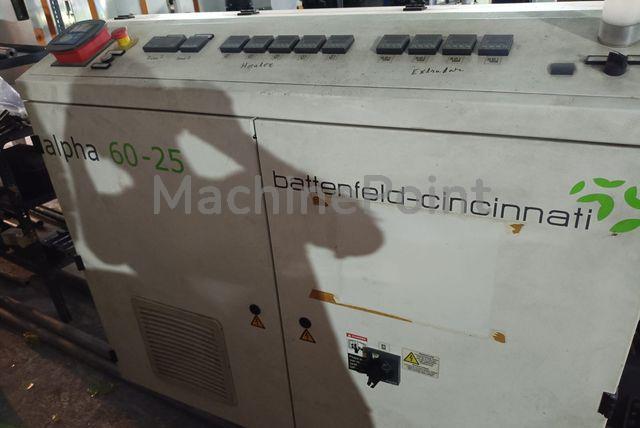

- 1x Single screw extruder Cincinnati-Battenfeld type ALPHA 60/25. Ratio L/D, 25/1. A.C motor 33 KW. Screw designed for PA for a better blending of the two different materials.

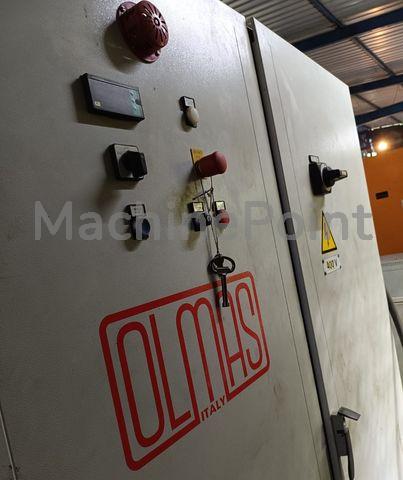

5 Heating sections for the barrel, of 2.4 kW each, tot. 12 kW. 5 Cooling sections for the barrel, of 0.25 kW each, tot. 1.25 kW. Water cooling ring under the hopper. Hopper with 45 kg of capacity. Mica bands for the barrel. Vertical gear box. Control panel located on board with all extruder's main controls. Temperature control board for extruder. Provided with 9 heating sections.
- 1x Melt pressure and temperature measuring probe
- 1x Extrusion die head for SINGLE wall pipes. For size up to Ø25 and 125 mm OD. Complete with extruder adapter and mica heater bands

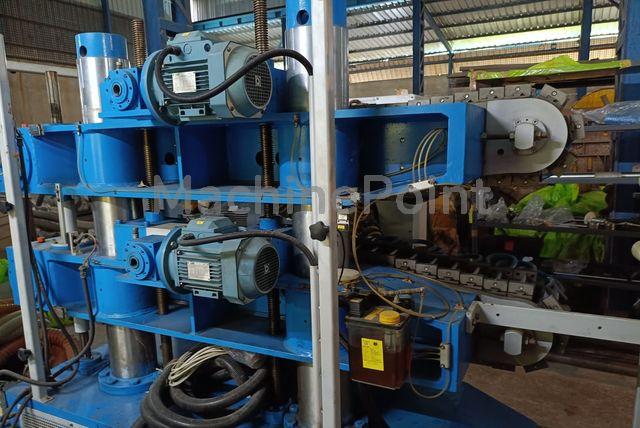

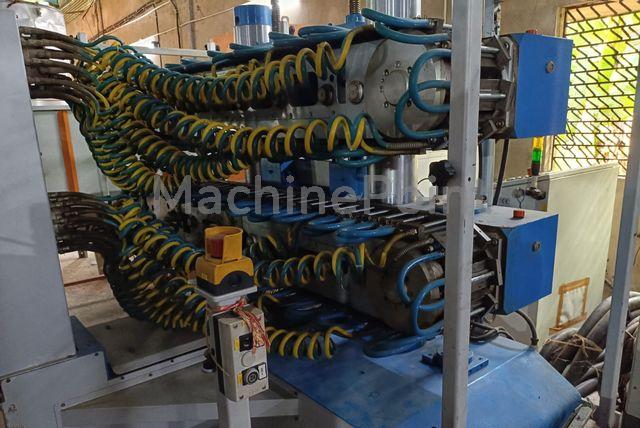

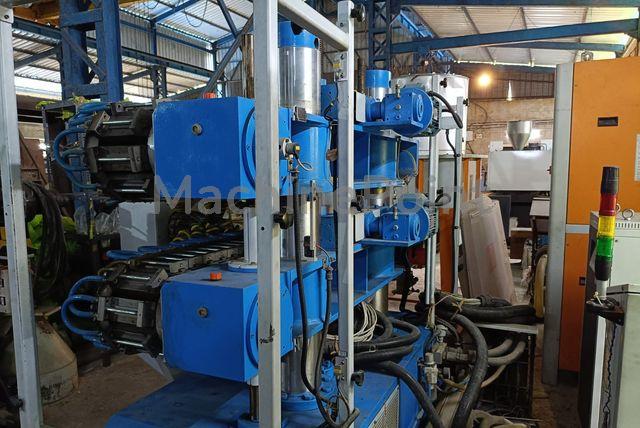

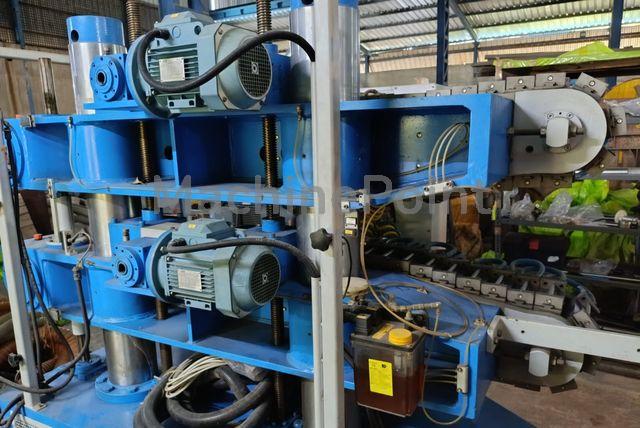

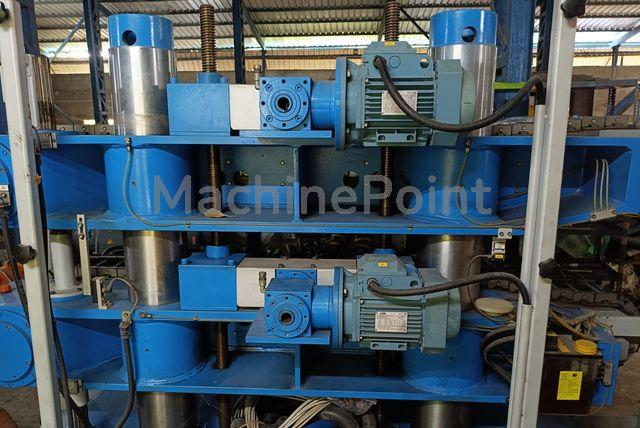

- 1x Corrugator machine model C44AP – 60 water cooled. Range of size from Ø25 and 125 mm OD. Vertical type corrugator, with direct under shell cooling system
- 1x Set of dual channel moulds, for pipe Ø42.4 and Ø67.2mm OD, 60+2 blocks, designed for blow forming system.
- 1x Set of dual channel moulds, for pipe Ø28.5 and Ø80mm OD, 60+2 blocks, designed for blow forming system.
- 1x Set of dual channel moulds, for pipe Ø34.4 and Ø54.4mm OD, 60+2 blocks, designed for blow forming system
- 7x Sets of Extrusion nozzles for pipe OD Ø28.5, 34.4, 42.4, 54.4, 67.2, 80 mm
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
