Used STARLINGER RECOSTAR PET 165 FG of 2018 for sale

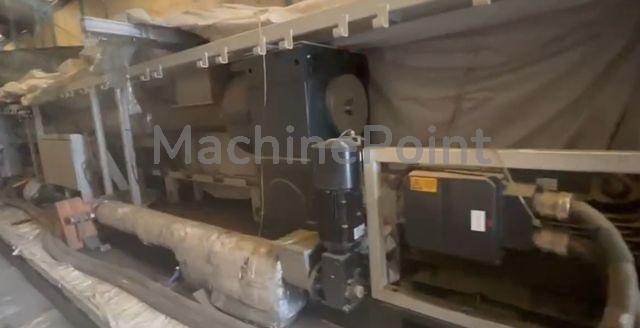

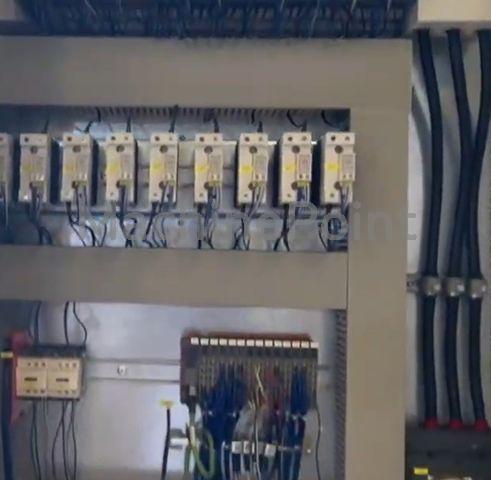

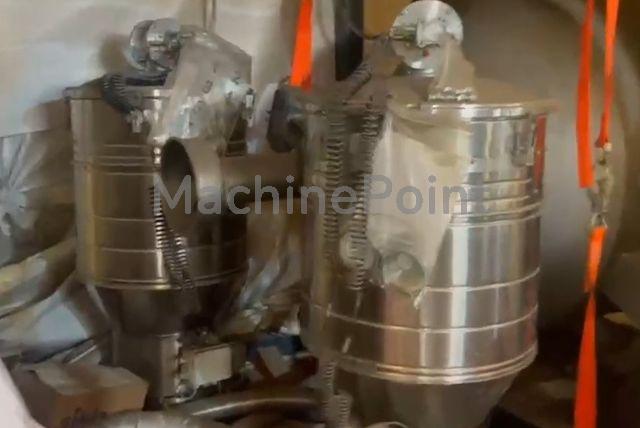

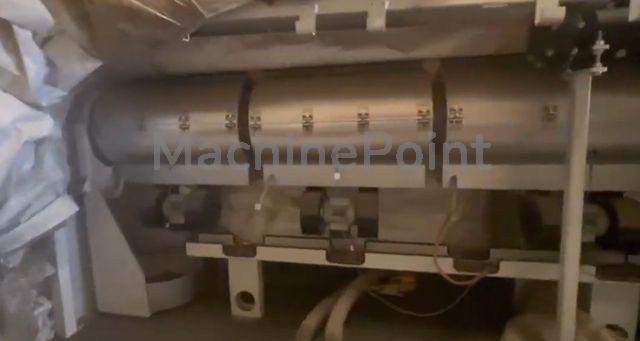

Working hours: 9,000 Smartfeeder CB800 belt conveyor with metal detector Sesotec Reel feeder Degassing station Electrical cabinet Cyclone Compressor Extruder Fan SPB 180 single piston filter WRP 120CC water ring pelletising unit

The tape stretching line is developed for processing high quality PP tapes. Operating speed up to 420 m/min Die width up to 930mm, Die lip aperture 0.1-1mm Vacuum feeder and elliptic Dosing Unit volutec 1+2 components smartTRONIC processor control for tape stretching line Temperature controlled lock-out device Automatic filter system Water quench with app. 500lt capacity including pump and heat exchanger FILM TAKE-OFF with pneumatically operated nip rollers SLITTING UNIT, pneumatically operated, with cross adjustment - final tape width of 1.5-5 mm Edge trim recycling with direct injection Hot air oven 5.4mtr Stretching unit with 8Godets (2N 4H 2C) including protecting cover & Hot oil system Tape extraction - vacuum system for broken tapes incl. collecting box Winding machine stacoTAPE 2OOXE 180 heads - each spindle is driven by a 3-phase AC-motor. Technical Data: Tape material: PP/HDPE Tape width:1.8*-6mm Tape tension control (electronically): Central adjustable Tape tension range (electr. controlled): 40-350 9 Denier range: 400-3000 den Tape thickness: 25-120mic** Standard yarn guide: slot type Shoes yarn guide: 2.5, 3.5mm Winding speed: 50-550 m/min Traverse length: 200 mm Vertical arrangement: 6 Winders / frame: 18 Core inside diameter: 35 +0,2/-0 mm Core outside diameter: 40 (47) +/-0,3 mm Core length: 218 +0/-1 mm Maximum bobbin diameter: 180mm Connected load per winder: 0.16 kVa Average power consumption per winder: 48W 1. Circular Loom RX 6.0 - 1Nos. Optional Equipment Included: 1 Heddle Band Version-720 Position 1 Heavy Duty Version 1 Unfolding Device & Surface Winder 1 Heat Cutting Device, Centre New 2. Circular Loom RX 6.0 - 2Nos. 3. Circular Loom RX 6.1 - 4Nos. Optional Equipment Included: 4 Heavy Duty Version 4Warp Monitoring System 4 Heat Cutting Device, bilateral New 4 Second Surface Winder back toback 4. Circular Loom RX 8.2 - 1Nos. Optional Equipment Included: 1 Creel Monitoring System2592 Positions 5. Circular Loom RX 8.2 - 2Nos. Optional Equipment Included: 2 Creel Monitoring System 2592 Positions 2 Second Surface Winder behind the other with Balancer 2 Heat Cutting Device, bilateral New 2 Heat Cutting Device, Centre New

Working hours: 5188 (in June 2025) Fimic Laser Filter – RAS 500 included Material to be processed : Film of LDPE, LLDPE and HDPE including agricultural film, MFI (190/2,16)=0,8 - 2g/10min washed post-consumer waste, clean (without PVC and paper, abrasive or metallic contamination), unprinted-slightly printed and up to 100% surface printed, dry (max 5% surface moisture). Material proportioned to adequate shape for conveyor belt : Pre-cut with 30-50mm screen. The line consists of the following components : Conveyor belt CB800D including metal detector Masterbatch dosing unit MBD150 P including feeding and control SMART feeder SF1100 (90kW) including temperature control, shock sensor & intake slider Dynamic automation package DAP1100 (90kW) Air flushing for SMART feeder Dust and steam exhaust unit for SMART feeder Extruder EXD85 (90kW) including melt pressure sensor, melt temperature sensor and air conditioning for electrical components and control panel. Color touch panel (15" display, recipe management) Speed controlled extruder drive (90kW) 2 adaptors with covers including heating and 2 pressure transducer Cascade vacuum unit C-VAC85CC (closed with water circuit) Waterring pelletizing WRP180CC Additional die plate WRP 180CC Automatic change of pelletizing speed Double filling station 1000L with piping & conveyor system Throughput measurement for filling station New screw as spare part.

The starEX 800 is especially designed for the extrusion of PP or HDPE/LLDPE tapes for woven bags, FIBC fabrics, geo- and agrotextiles, carpet backing, and various other technical applications. Granulate feeding and volumetric. 3-component dosing/mixing unit Film take-off with two drives and vibration drying unit Automatic filter Static mixer Flat die with reversible die lip smartTRONIC control unit Water quench tank with heat exchanger Tape slitting unit Holding unit Edge trim recycling and refeeding system Stretching section with 6 godets, incl. heating unit Vacuum tape extraction system incl. collecting container Hot air oven, length 5.8 m Cross winding machine stacoFIL 200XE stacoFIL 200XE 3-phase inverter control for the drive motor Yarn tension control Automatic motor switch-off Quick-clamping device Yarn catching device High precision traverse mechanism Tape guide Supporting frame

Specially designed to weave endless tubular or flat cloth out of PP, HDPE or PET tapes. (Price shown is for a single unit, 10 units available for sale.) Working width, double flat 300-850 mm At reduced pick rate 300-390 mm 700-850 mm No. of tapes 576 Shuttle/ machine 6 pcs Weft insertion with 576 positions(max.) 1100 ppm Weft insertion with 720 positions(max.) 1100 ppm Reduced pick rate 880 ppm Weft density 20 – 55 /10 cm Revolutions 183 min -1 Warp/weft core inside diameter 35 +0,2/-0 mm Warp weft length of core 218 +0/-1 mm Warp bobbin diameter (max.) 180 mm Weft bobbin diameter (max.) 110 mm Winding roll diameter (max.) 1200 mm The basic machine includes: Basic machine with heddle wire – 576 positions Two creels (cores are not included) Electrically controlled warp infeed system Contrast sensor for monitoring weft tape end (black tapes require light cores) Warp break detecting system Weft break detecting system Memory stop for weft change Central drive system with frequency controlled motor Automatic weft cramming device Three manual control units Six shuttles and weft insertion system + intermediate bow Ceramic insertion finger Cloth haul-off Loom controller Surface winder Max. cloth width 300 -850 mm Max. roll diameter 1200 mm Inside diameter of core 100,5 mm Outside diameter of core 124 mm Bobbin storage above the intake
