Used WEBER DS 85 of 1980 for sale
Extrusion line for PVC profiles WEBER, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used WEBER DS 85
Ref.: 300050357
Year: 1980
Brand: WEBER
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Profile Width (Max): 450 mm
- Output Capacity: 280 kg/h
Other Specifications:

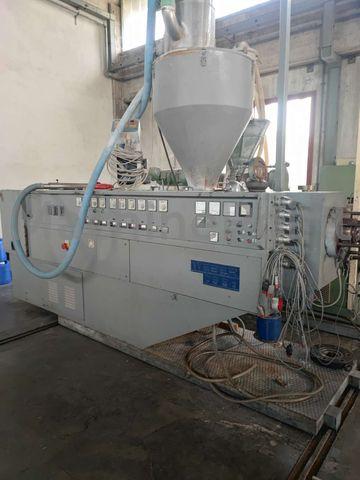

Extruder — WEBER DS 85
Manufacturer: Germany (WEBER)
Model: DS85
Year: 1980
Screw diameter: 85 mm
Screws: Parallel
Output capacity: 280 kg/h
Main drive power: 63 kW (new motor, 2022)
Running hours: 500 h

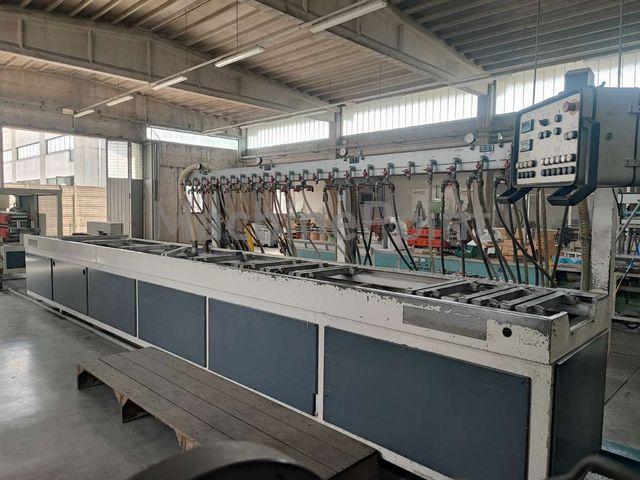

Calibration table — BANDERA
Model: B8MT
Year: 2000
Length: 8 m
Number of pumps: 5+1
Pump power: 4.5 kW each

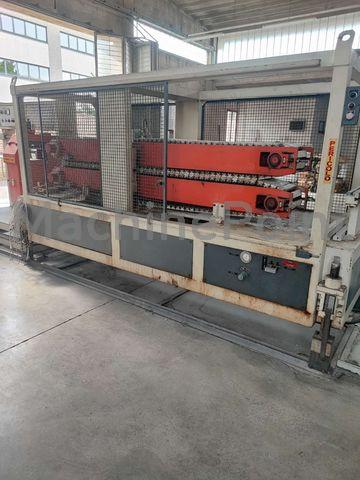

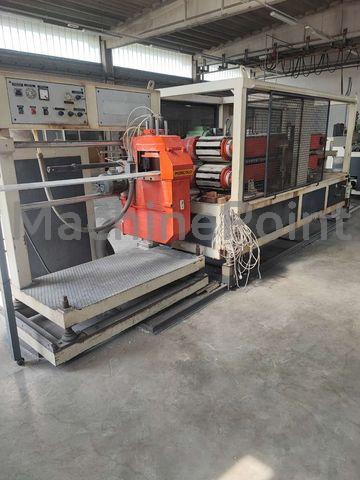

Caterpillar haul-off — BANDERA
Model: TR 2500
Year: 1980
Tractive effort: 2.2 kW
Belt contact length: 2500 mm
Belt width: 350 mm
Saw — BANDERA
Model: TS400
Year: 2000
Type: Blade
Cutting height: 150 mm
Stacking table
Year: 2000
Table length: 4 m
Other details
CE certified: No
Machine manuals available: Yes
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
