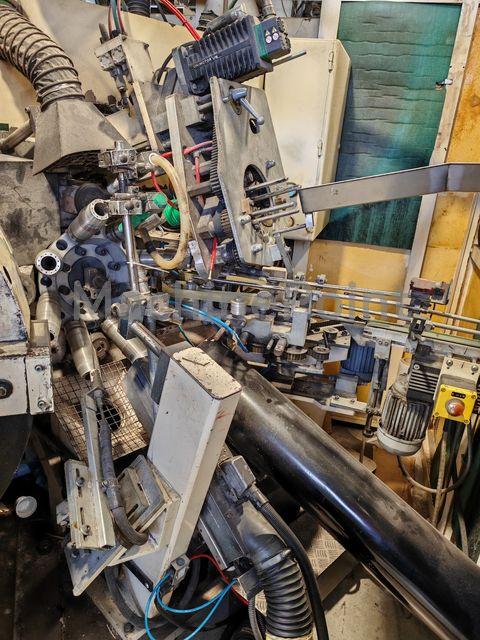

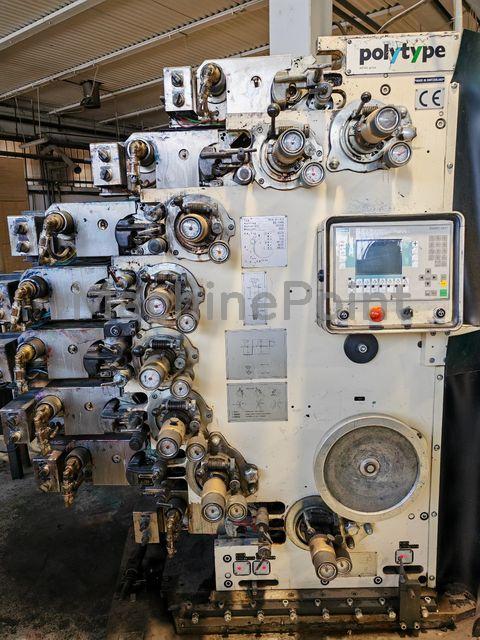

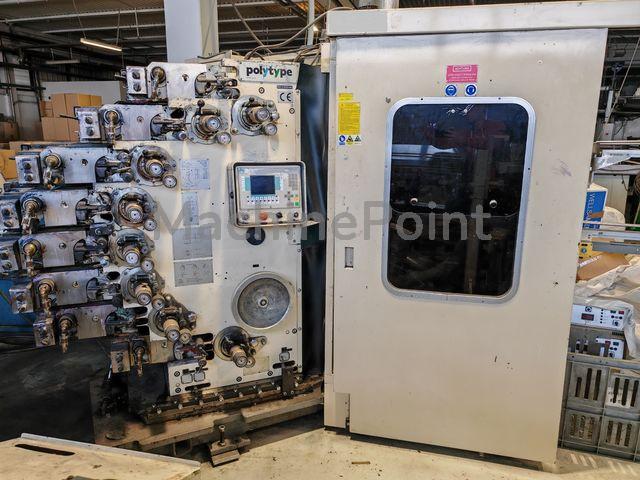

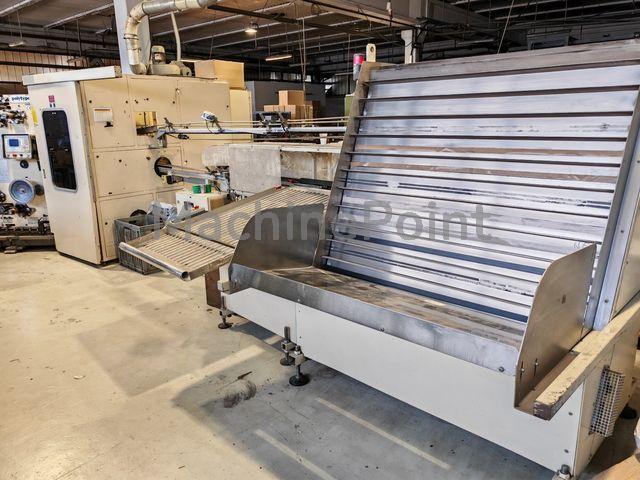

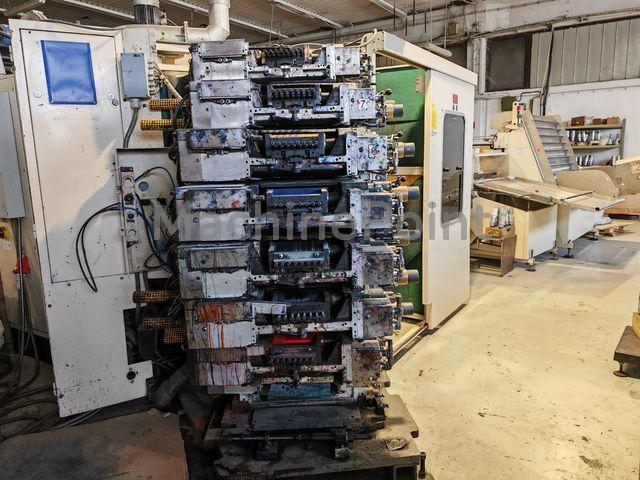

Used POLYTYPE BDM 611/916 of 2001 for sale

Used Tube Manufacturing Line for Sale This offer includes a complete tube-manufacturing line with four main components: Polytype ITH 42.5EP – Head Injection Machine Rotary table with 8 molding stations that inject polypropylene heads onto tube skirts. Tubes are fed via a chain transfer, optionally oriented using color photocells for elliptical designs, then cooled and formed before machine-vision inspection and expulsion to the next stage . Polytype RHM 200 – Capping Machine 16-mandrel indexing table with 8 work stations. Trims the injection sprue, positions caps using printed reference spots, and handles both press-fit and screw caps — including torque-controlled tightening and heat-sealed tamper-evident seals where required. Packsysglobal BT2300L – Packing Machine Groups tubes via a synchronized conveyor, arranges them into rows and mosaics on format plates, then loads them into bagged boxes for output, with parallel box feeding for continuous operation. Line Platform (3 Accumulators) Chain-driven buffers linking extrusion, printing, injection, and capping stages, with capacities of 1000, 550, and 550 tubes respectively.

Printing system for rectangular/square/round cups 8 colors Min/max height: 30-125mm Min-max side of cup: 65x85mm - 135x180mm Max printing height 145mm Max printing length: 417-520mm Min-max angle: 2-10- Max printing speed : up to 9000/h UV curing Cup loading with screw feeder, corona pretreatment for coat and bottom on two stations, transfer, positioning before and after printing and universal discharge Horizontal ink fountains mounted with ink mixers. They allow a better printing quality on screened or solid surfaces. The ink fountains are equipped with a separate drive to facilitate washing and pre-inking.

Machine is producing PET cups and the factory where machine is located is controlled under strict food safety regulations so hygiene and safety production process is top priority as the products make direct contact with food. So the machines are well maintained and installed where the temperature and the humidity is controlled at all times at a constant level which suits best for the machine. Standard cup infeed and discharge automation (Standard layout) Inking/Printing unit Model DW-C92-160 -separate Servo-drive for printing unit chrome plated offset cylinder with 6 printing sections, for placing the rubber blankets with adhesive tape -electronic switch from 6 blanket to 3 blanket mode -No cup - no print system, pneumatically loaded for consistent pressure Each unit opens horizontally a full 90 degrees for easy access to rollers & plate cylinder Automatic central lubrication for all inking units controlled over the PLC Wash up system - semiautomatic Turret head drive & indexing with Torque Motor Servo-drive screw loader Mandrel drive for pre-treatment station Separate mandrel servo-drive for print station Quality Control/Reject station Belt Take-off unit Siemens SIMOTION PLC Safety Devices according to Standard CE-Norm Corona pre treatment at position 12 o'clock (3 kW) UV Curing System at position 6 o'clock, UVITERNO system type EVO, 9kW, 600 W/cm, 1525 W/inch Infeed Elevator, with electric pusher above 2,1 m wide Discharge Automation Accessories included Chiller system, for the cooling water preparation (air/water) Printing plate punch (punching by one step, with 30 x magnification) General technical characteristics: BDM-682: Dia. of printing plate cylinder: 200mm Max. print height (depends on UV lamp length):145mm Max. print length with standard plate cylinder: 502mm Number of blanket (electronically switchable): 6 / 3 sections (6/3 blanket mode depends on cup size and production speed) Max. stack length: Infeed up to 2100 mm / Discharge up to 800 Min./Max. taper: 2 - 15degrees Printing rubber roll thickness (+/- 0,02 mm): 2 x 1,9mm Double sided adhesive tape (+/- 0,02 mm): 2 x 0,3mm Printing plate thickness: 0.73 mm Max. production speed (depending on cup size, shape, stack height, stack length, materials, quality and print design) up to 650 cups/min Air treatment unit 33% rel. at 20°C Permissible humidity 20 micron abs. / oil-free Water connection: (with chiller air/water no needed) Water temperature (for cooling of the ink unit) 25°C+/- 3°C /3 -5 bar Exhaust (dia. of pipe 140 mm) height 2620mm 1600 m3/h 30°C Electric . load: 38 KVA Electrical power: 3 x 380 V / 60 Hz Transformer from 3x380 V / 60 Hz to 3x440 V / 60 Hz will be provided. So machine can work with 50 or 60 Hz Earliest pick up at the end of 2022

Machine is producing PET cups and the factory where machine is located is controlled under strict food safety regulations so hygiene and safety production process is top priority as the products make direct contact with food. So the machines are well maintained and installed where the temperature and the humidity is controlled at all times at a constant level which suits best for the machine. Standard cup infeed and discharge automation (Standard layout) Inking/Printing unit Model DW-C92-160 -separate Servo-drive for printing unit chrome plated offset cylinder with 6 printing sections, for placing the rubber blankets with adhesive tape -electronic switch from 6 blanket to 3 blanket mode -No cup - no print system, pneumatically loaded for consistent pressure Each unit opens horizontally a full 90 degrees for easy access to rollers & plate cylinder Automatic central lubrication for all inking units controlled over the PLC Wash up system - semiautomatic Turret head drive & indexing with Torque Motor Servo-drive screw loader Mandrel drive for pre-treatment station Separate mandrel servo-drive for print station Quality Control/Reject station Belt Take-off unit Siemens SIMOTION PLC Safety Devices according to Standard CE-Norm Corona pre treatment at position 12 o'clock (3 kW) UV Curing System at position 6 o'clock, UVITERNO system type EVO, 9kW, 600 W/cm, 1525 W/inch Infeed Elevator, with electric pusher above 2,1 m wide Discharge Automation Accessories included Chiller system, for the cooling water preparation (air/water) Printing plate punch (punching by one step, with 30 x magnification) General technical characteristics: BDM-682: Dia. of printing plate cylinder: 200mm Max. print height (depends on UV lamp length):145mm Max. print length with standard plate cylinder: 502mm Number of blanket (electronically switchable): 6 / 3 sections (6/3 blanket mode depends on cup size and production speed) Max. stack length: Infeed up to 2100 mm / Discharge up to 800 Min./Max. taper: 2 - 15degrees Printing rubber roll thickness (+/- 0,02 mm): 2 x 1,9mm Double sided adhesive tape (+/- 0,02 mm): 2 x 0,3mm Printing plate thickness: 0.73 mm Max. production speed (depending on cup size, shape, stack height, stack length, materials, quality and print design) up to 650 cups/min Air treatment unit 33% rel. at 20°C Permissible humidity 20 micron abs. / oil-free Water connection: (with chiller air/water no needed) Water temperature (for cooling of the ink unit) 25°C+/- 3°C /3 -5 bar Exhaust (dia. of pipe 140 mm) height 2620mm 1600 m3/h 30°C Electric . load: 38 KVA Electrical power: 3 x 380 V / 60 Hz Transformer from 3x380 V / 60 Hz to 3x440 V / 60 Hz will be provided. So machine can work with 50 or 60 Hz

Machine is producing PET cups and the factory where machine is located is controlled under strict food safety regulations so hygiene and safety production process is top priority as the products make direct contact with food. So the machines are well maintained and installed where the temperature and the humidity is controlled at all times at a constant level which suits best for the machine. Cup infeed and discharge automation (LEFT VERSION layout) Inking/Printing unit Model DW-C92-160 -separate Servo-drive for printing unit chrome plated offset cylinder with 6 printing sections, for placing the rubber blankets with adhesive tape -electronic switch from 6 blanket to 3 blanket mode -No cup - no print system, pneumatically loaded for consistent pressure Each unit opens horizontally a full 90 degrees for easy access to rollers & plate cylinder Automatic central lubrication for all inking units controlled over the PLC Wash up system - semiautomatic Turret head drive & indexing with Torque Motor Servo-drive screw loader Mandrel drive for pre-treatment station Separate mandrel servo-drive for print station Quality Control/Reject station Belt Take-off unit Siemens SIMOTION PLC Safety Devices according to Standard CE-Norm Corona pre treatment at position 12 o'clock (3 kW) UV Curing System at position 6 o'clock, UVITERNO system type EVO, 9kW, 600 W/cm, 1525 W/inch Infeed Elevator, with electric pusher above 2,1 m wide Discharge Automation Accessories included Chiller system, for the cooling water preparation (air/water) Printing plate punch (punching by one step, with 30 x magnification) General technical characteristics: BDM-682: Dia. of printing plate cylinder: 200mm Max. print height (depends on UV lamp length):145mm Max. print length with standard plate cylinder: 502mm Number of blanket (electronically switchable): 6 / 3 sections (6/3 blanket mode depends on cup size and production speed) Max. stack length: Infeed up to 2100 mm / Discharge up to 800 Min./Max. taper: 2 - 15degrees Printing rubber roll thickness (+/- 0,02 mm): 2 x 1,9mm Double sided adhesive tape (+/- 0,02 mm): 2 x 0,3mm Printing plate thickness: 0.73 mm Max. production speed (depending on cup size, shape, stack height, stack length, materials, quality and print design) up to 650 cups/min Air treatment unit 33% rel. at 20°C Permissible humidity 20 micron abs. / oil-free Water connection: (with chiller air/water no needed) Water temperature (for cooling of the ink unit) 25°C+/- 3°C /3 -5 bar Exhaust (dia. of pipe 140 mm) height 2620mm 1600 m3/h 30°C Electric . load: 38 KVA Electrical power: 3 x 380 V / 60 Hz Transformer from 3x380 V / 60 Hz to 3x440 V / 60 Hz will be provided. So machine can work with 50 or 60 Hztest
