Used KUKA ROBOTER GMBH KR5 robotised cell for inspecting plastic medical components of 2009 for sale
ROBOTISED CELL FOR INSPECTING PLASTIC MEDICAL COMPONENTS KUKA ROBOTER GMBH, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.
Data Sheet of Used KUKA ROBOTER GMBH KR5
Ref.: 300050379
Year: 2009
Brand: KUKA ROBOTER GMBH
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
ROBOTISED CELL FOR INSPECTING PLASTIC MEDICAL COMPONENTS
Other Specifications:
Manufacturer: ZIMAC
Year of manufacture: 2009

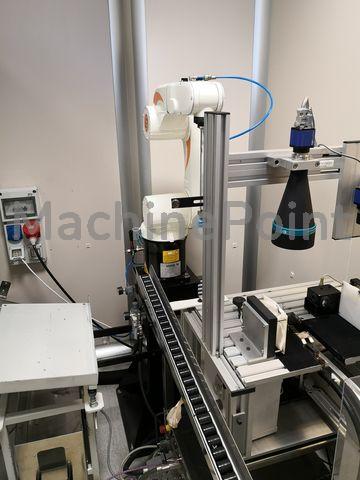

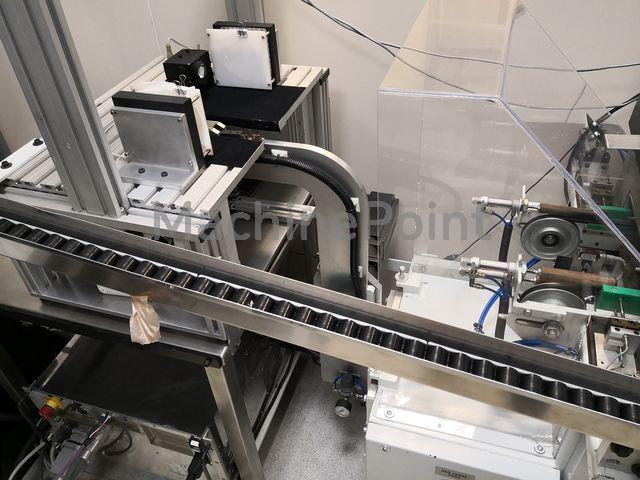

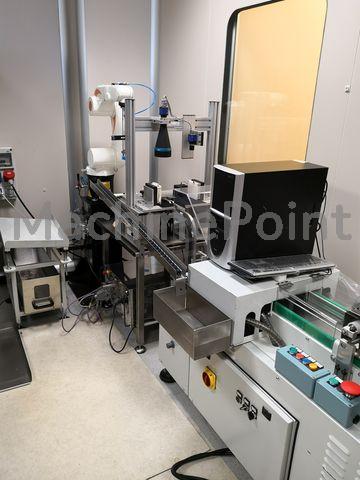

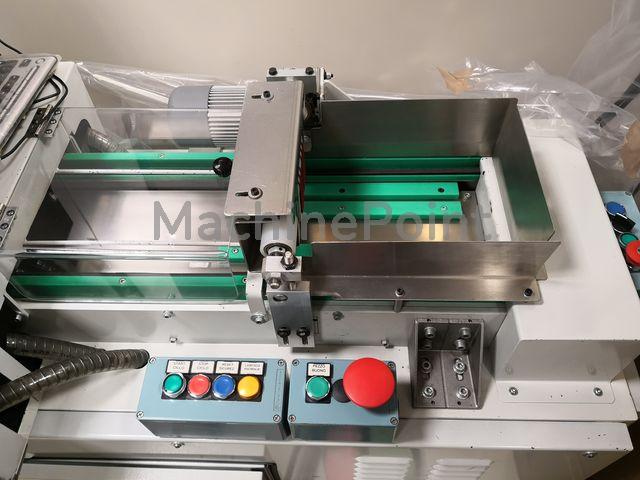

Description: The system consists of an electric belt conveyor that enables the continuous transfer of cylindrical plastic components along a fixed route. The components are conveyed by being dragged along a series of motorised V-belts running on dedicated guides. At the end of the route, one component at a time is gripped by a pneumatic gripper, which is in turn moved by a mechanical arm mounted on a gear motor, transferring the component to a camera station (Manufacturer: SmartVision). At this station, two cameras capture and display on a monitor a magnified image of both ends of the component, highlighting any burrs or filaments. Once the visual inspection is complete, a KUKA KR5 robot positions the component in the pre-determined order inside a rectangular cardboard box (if the part is compliant) or onto a dedicated reject tray (if the part is non-conforming).
In this configuration, the system requires an operator to change the box. The operator can also manually reject any component they deem defective on screen by pressing a button.
Productivity: cycle time 5 seconds / approx. 700 pieces per hour
Hours of use: approx. 15,000
AVAILABLE also for sale: 2 other automatised devices year 2010 and 2011 (ask for price and pictures)
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
