Used BRUKER D8 ADVANCE X-Ray Diffractometer x-ray diffractometer of 2009 for sale

2009 | Ref.: 300050380

X-Ray Diffractometer BRUKER, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.

Data Sheet of Used BRUKER D8 ADVANCE X-Ray Diffractometer

Ref.: 300050380

Year: 2009

Brand: BRUKER

Status:

For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

$BRUKER - D8 ADVANCE X-Ray Diffractometer - Used machine$

Photos

Technical Specifications:

X-Ray Diffractometer

Other Specifications:

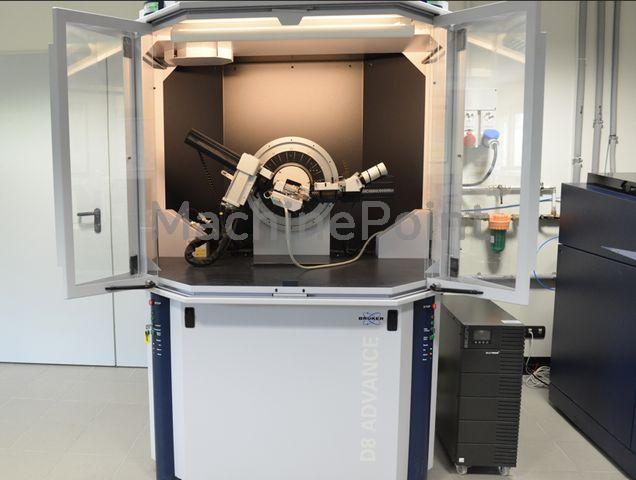

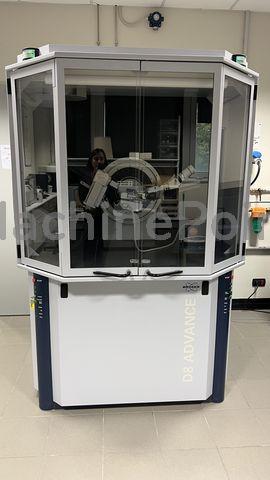

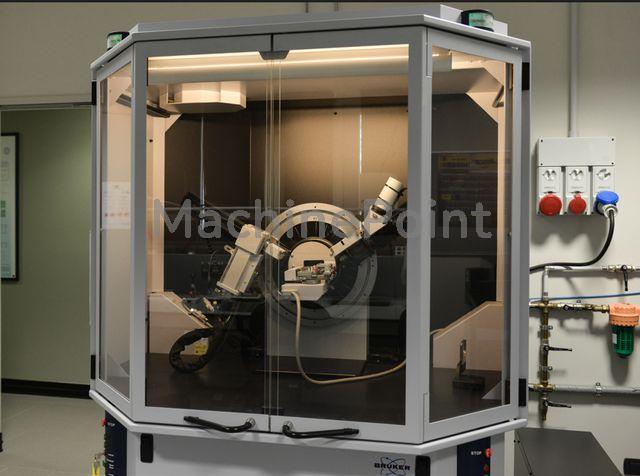

Bruker D8 ADVANCE X-Ray Diffractometer
Brand/Model: Bruker D8 ADVANCE
Year: 2009

Overview:
The D8 ADVANCE is a powerful, versatile X-ray diffractometer used for characterizing the crystallinity of natural and synthetic materials. Its software supports both SAXS (Small Angle X-ray Scattering) and WAXS (Wide Angle X-ray Scattering) measurements, with adjustable angular range, integration time, and step size.
Key Technical Specifications:
Configuration: θ/θ or θ/2θ
Standard measuring diameter: 500 mm and 560 mm
Angular range: 360°
Measurable range: -110° < 2θ ≤ 168°
Angular resolution: 0.0001°
Maximum angular speed: 20°/s
Software/Analysis Capabilities:
SAXS/WAXS: Supported natively by the diffractometer software.
PDF analysis: Possible via Xpowder (third-party), but not through the native software (DIFFRAC.EVA — license expired). The installed system does include a PDF2 Powder Diffraction File database (2010) for phase identification.
Rietveld analysis (TOPAS): Not supported natively — would require additional software from Bruker or a third party.
Important Note:

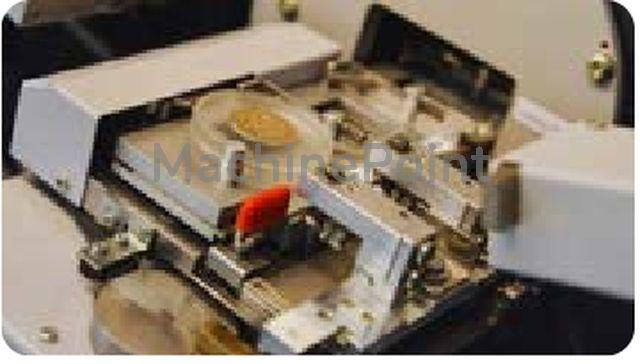

The powder sample holder does not rotate during XRD measurements. If rotation is needed to improve measurement statistics, an alternative solution — such as a compatible rotating sample holder — would need to be sourced separately.
