STARLINGER Recostar universal 85 H-VAC of 2020 used

Technical Specifications:

Screw Diameter: 85 mm

Output Capacity: 350 kg/h

Forced Feeding: Yes

Degassing System: Yes

Heating Power (Extruder): 49.5 kW

Heating Zones (Extruder): 6

Cooling Zones (Barrel): 6

Motor Rating: 90 kW

Type Of Die Head: Spaghetti

Suitable For Processing (Material): PET;PA

Last Material Recycled: PET

Suitable Material Form: bottles, flakes, film, preforms, pipes, fibre, filaments, bobbins, fabrics

Destination Of Product: Injection moulding Spinning

· SCREEN CHANGER: Automatic and hydraulic

Type Of Screen Changer: Hydraulic

Other Specifications:

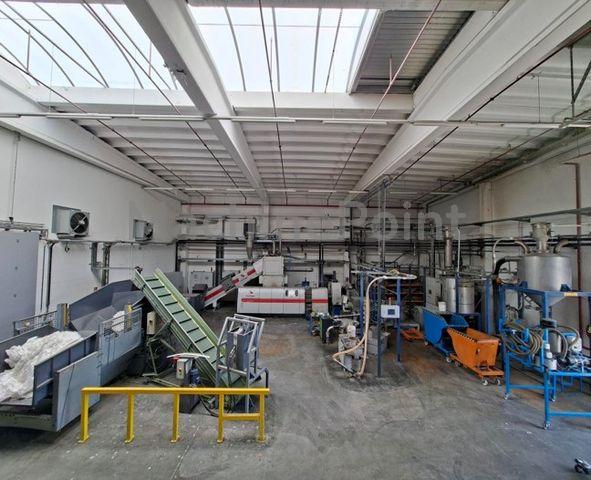

This recycling line is specifically designed for recycling High-Tenacity polyester yarns.

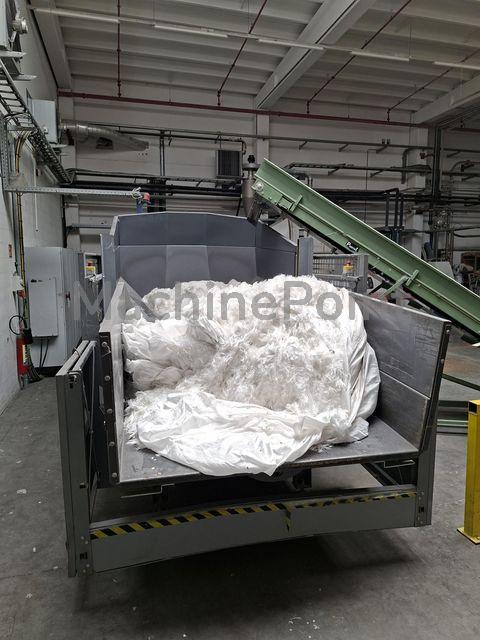

The bales can be placed directly into the robot, where they are cut a first time. After a metal inspection, they are cut a second time and automatically fed onto the conveyor belt to the shredder.
After a metal inspection, they are ground by the shredder and fed into the extruder by an Archimedes screw.

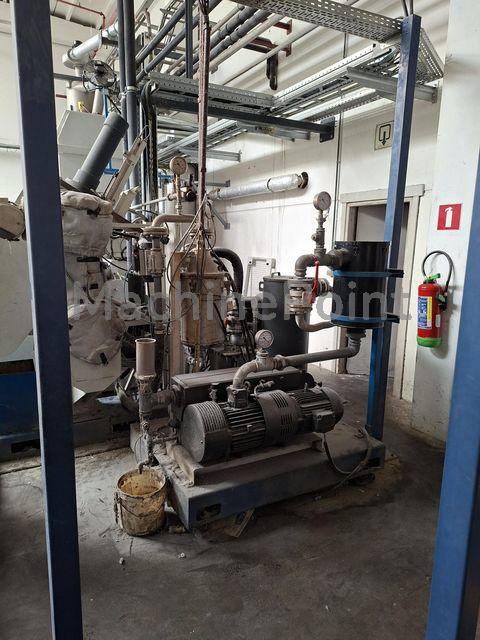

In the shredder, dried air is blown at a temperature of 130° to reduce humidity. The extruder is equipped with a double degassing zone powered by a high vacuum pump Busch.
An automatic backflush filter with two filter channels automatically cleans the filters when the differential pressure becomes too high.
The molten polymer is cooled by means of a water slide before entering the granulator. After granulation, the pellets enter a centrifuge to separate the water and dry further.
At the end, the granules end up on a sieve to separate non-conforming granules from the good product. The granules can then be transported directly to the crystallizer or directly into the storage silo.
The complete line can be operated by 1 person and has a capacity of 300 - 350 kg/h depending on material input

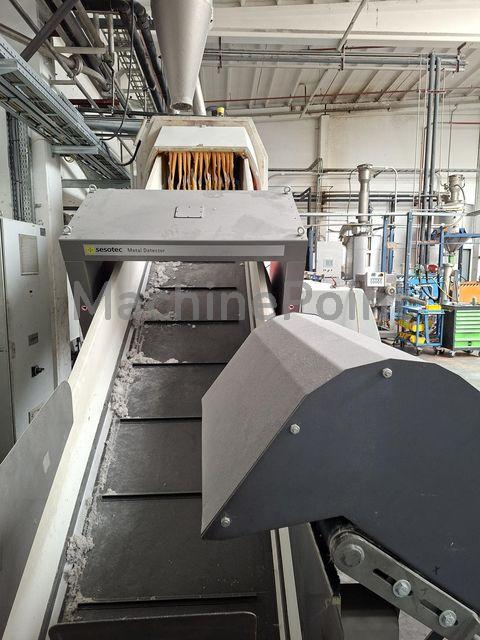

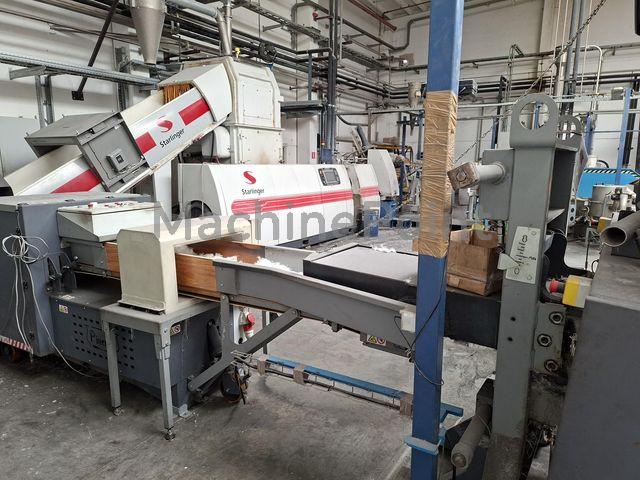

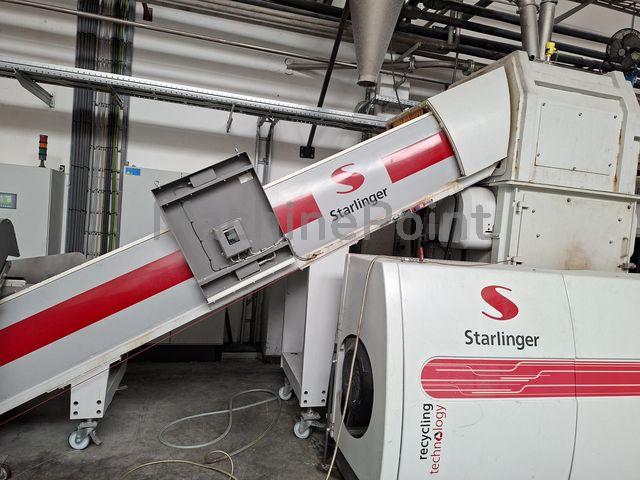

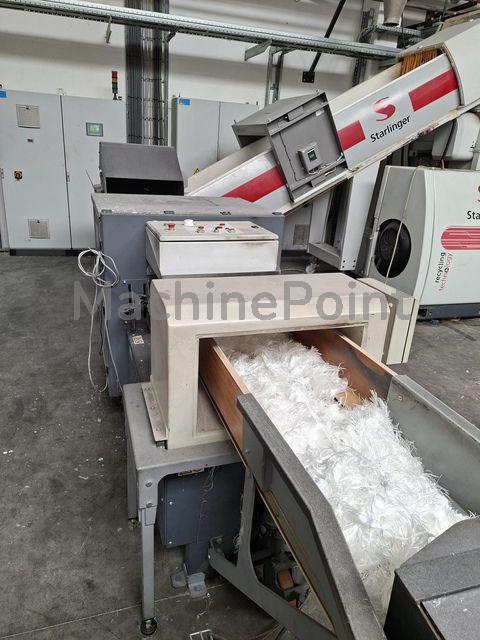

Conveyor belt CB800 with metal detector SESOTEC, 800mm width / 4800mm long - 0,55kw – 0,2m/s

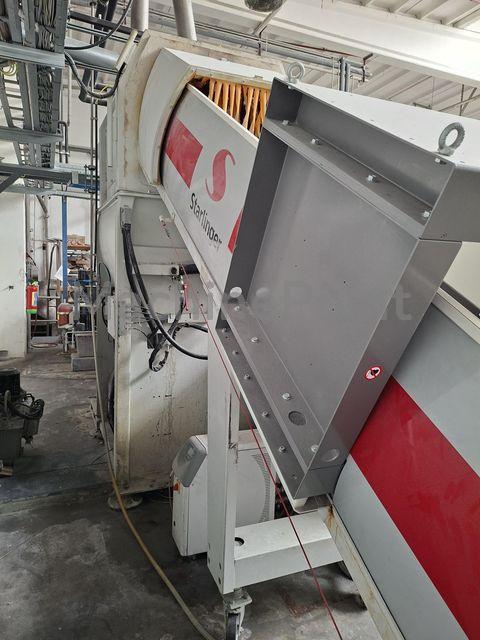

Active shredder Starlinger AS1200-105 - 90kw
TV-monitoring cutting area shredder
Piovan RPA dehumidification module with heater

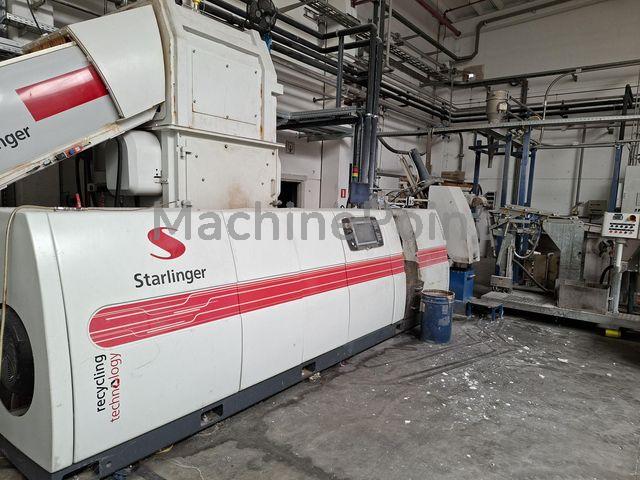

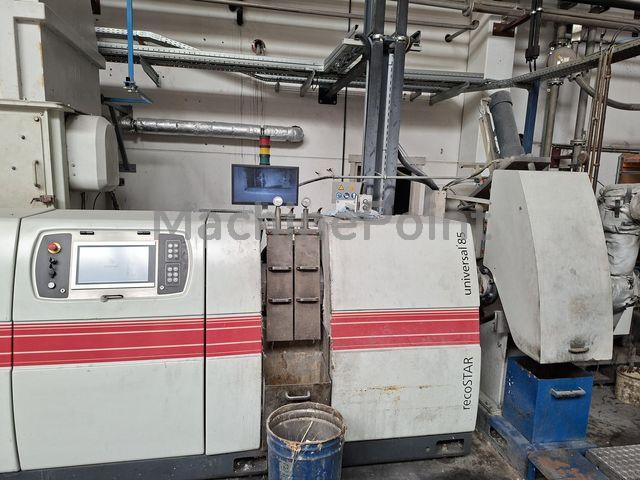

Venting extruder EXU 85 - motor 90kw with melt and T° sensor and infrared heating system, double degassing zone with high vacuum unit

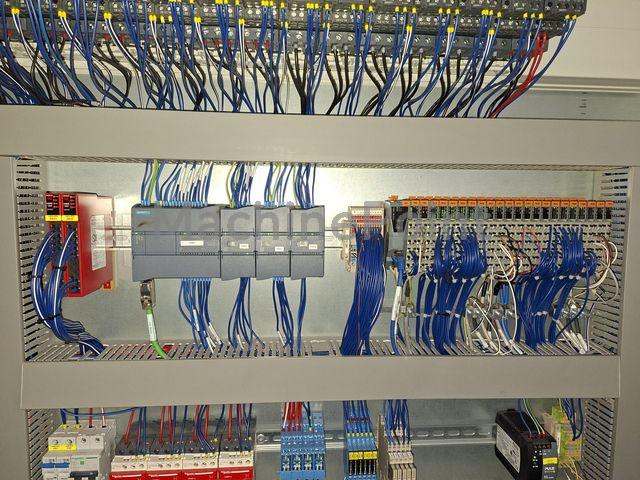

Color touch panel with visualization
Speed controlled extruder drive

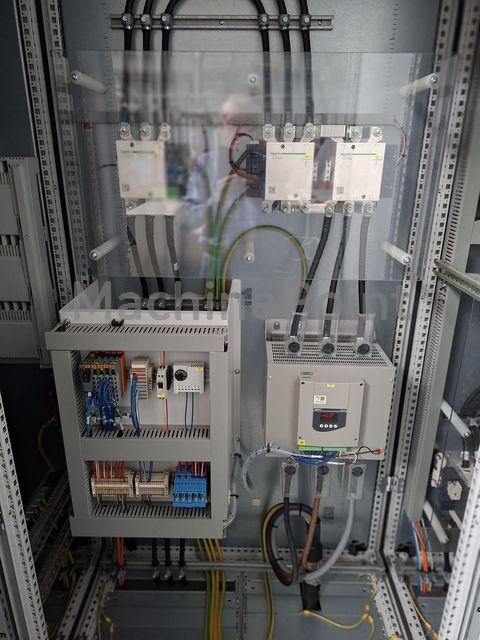

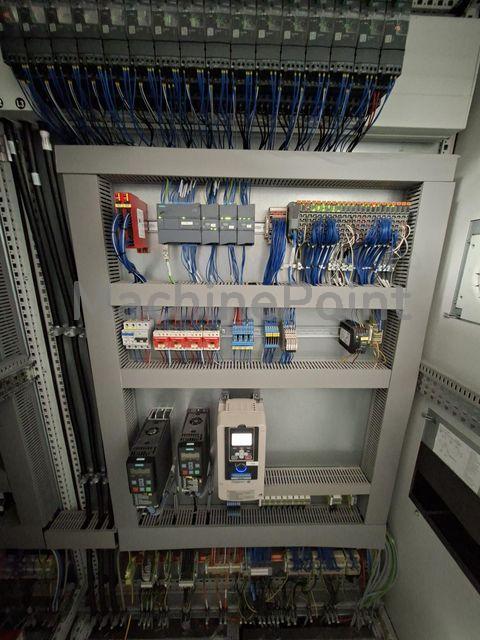

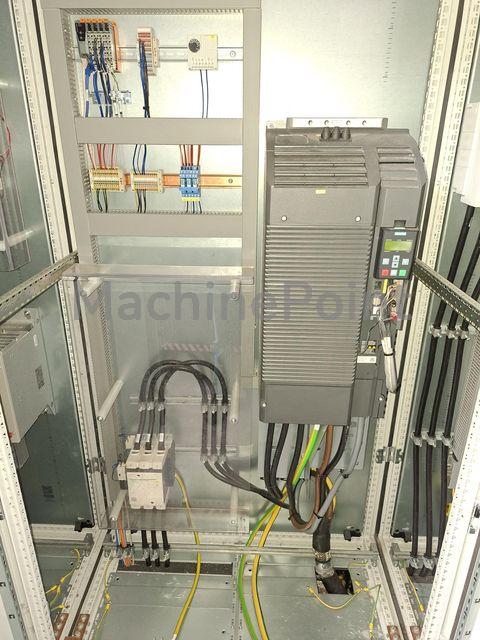

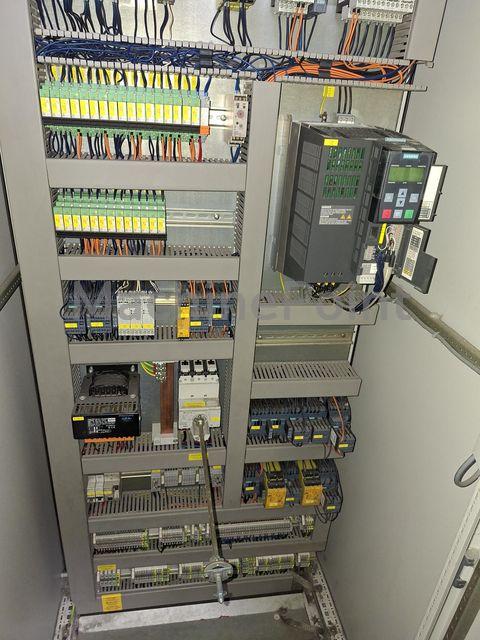

All frequency converters are SINAMICS

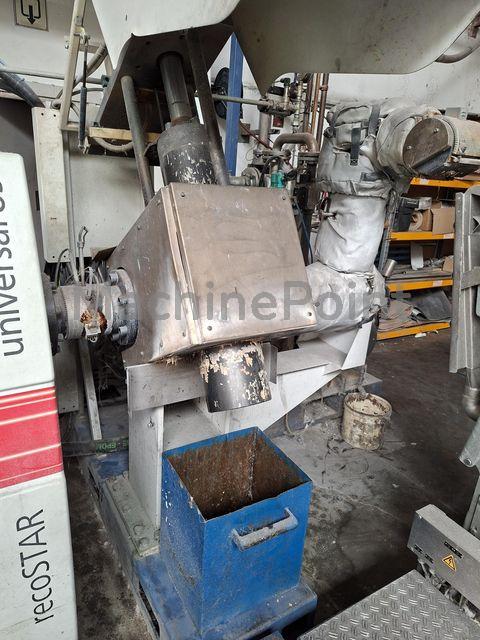

Single piston backflushing filter SPB490P with power backflush

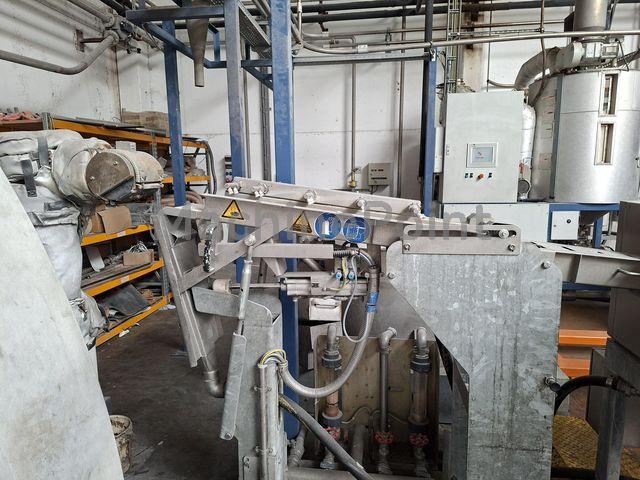

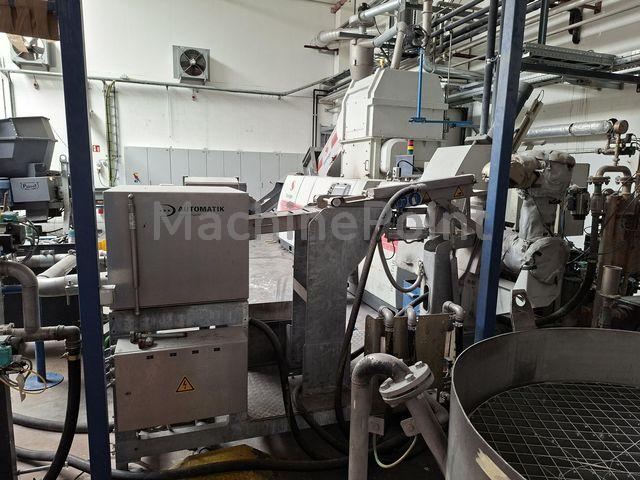

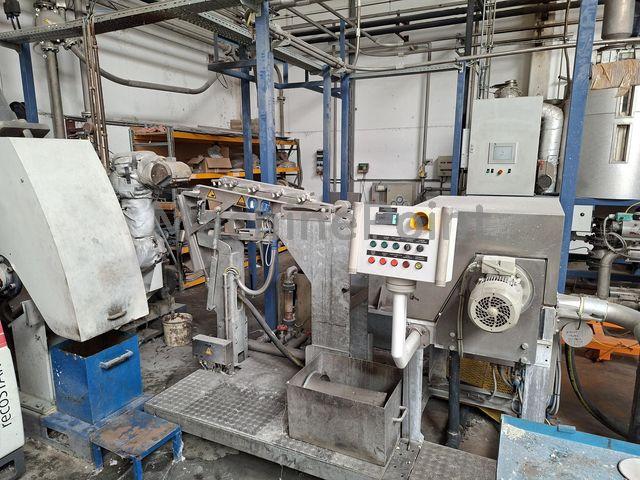

'AUTOMATIC - MAAG' strand pelletizing line A-SPU500CC
Automatic change of pelletizing speed in function of pressure
Two stage classifier TSC800
Vacuum feeding for crystallizer CRY 1000 with outlet rotary

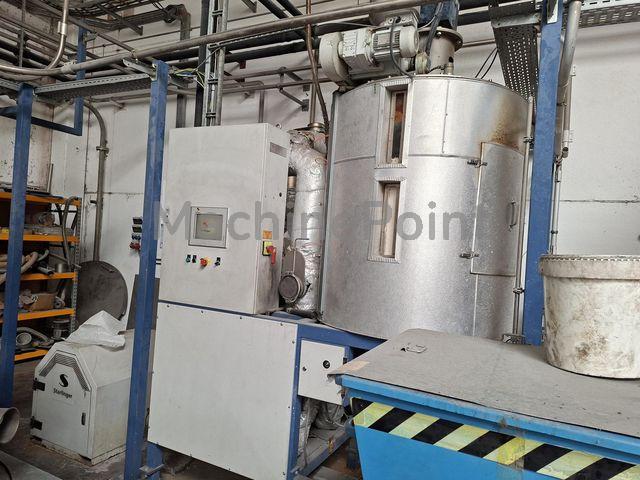

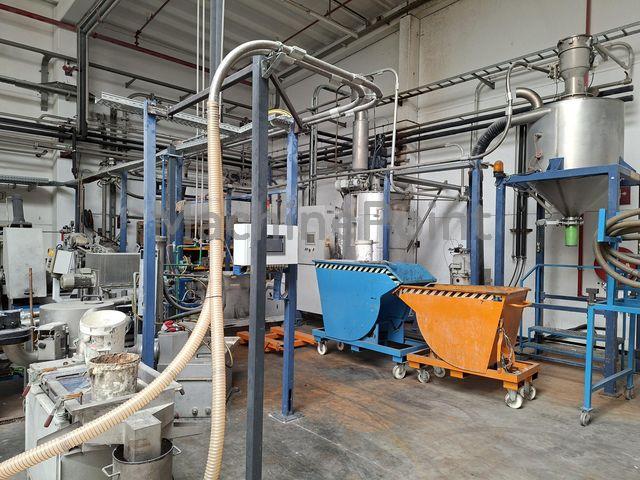

Crystallizer CRY 1000 inline inclusive air filtration with cyclone
Filling station 1000L with blower, piping - discharging

Screw length : 2040 + 1360 > TOTAL = 3400 Screw L/D ratio: 24L/D + 16L/D for 2 degassing openings
Number of holes die head : 7
Water consumption : 50 – 100 l/h – closed circuit Power installed : 437 kva starlinger Power consumed : +/- 50% depending on material and output

Also equiped with :

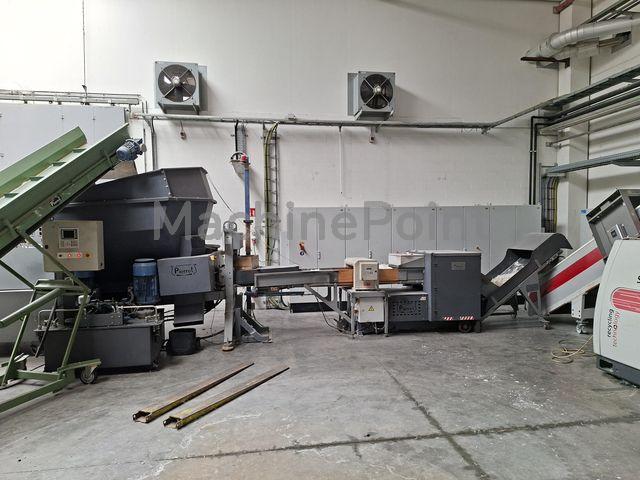

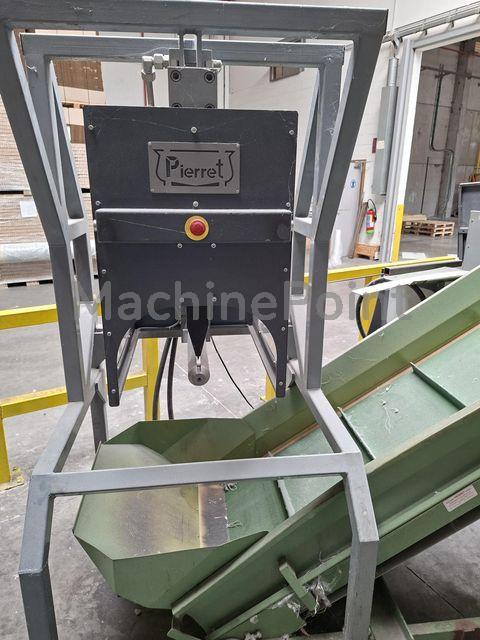

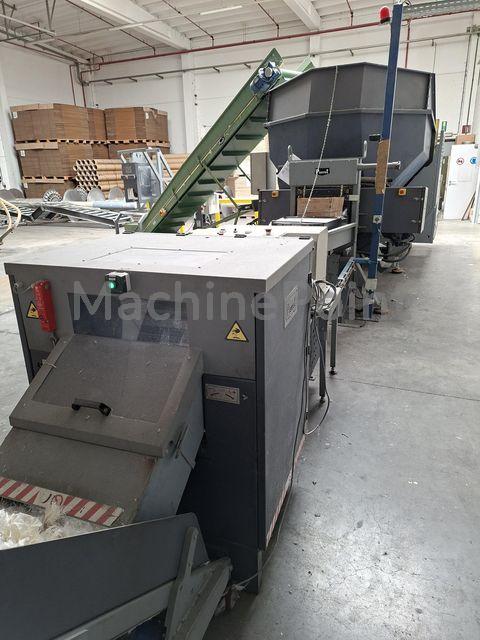

Pierret bobbin cutter / guillotine
Pierret guillotine continu cutter N45

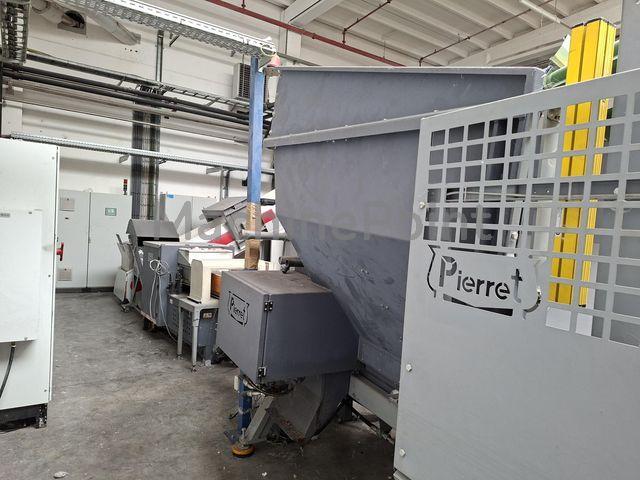

Pierret compact robot GH COMPACT : 2 x 15kw

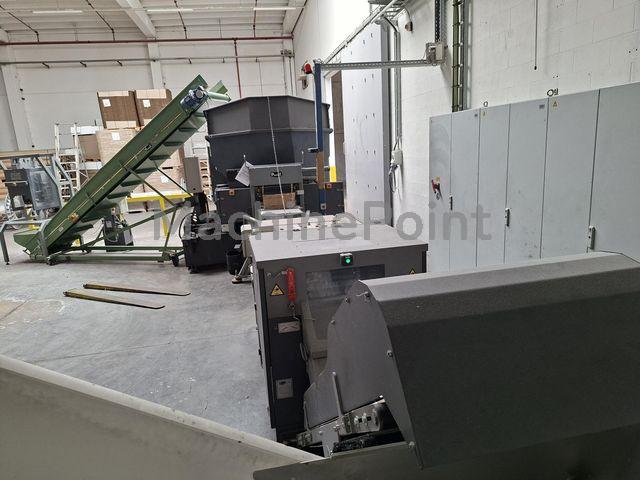

Pierret conveyor belt
Piovan RPA dryer for dry hot air feeding in shredder to absorb moisture
Piovan crystalliser 1000L for inline crystallizing of polyester with rotary
Air lock for discharge and air filtering
Vacuum feeding for crystallizer CRY1000
1 Filling station of 1000 L incl. blower, piping for discharge in bigbags / octabin
A 2-stage classifier for sorting the granules
