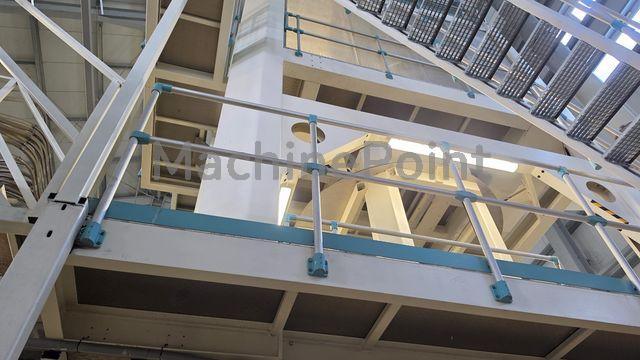

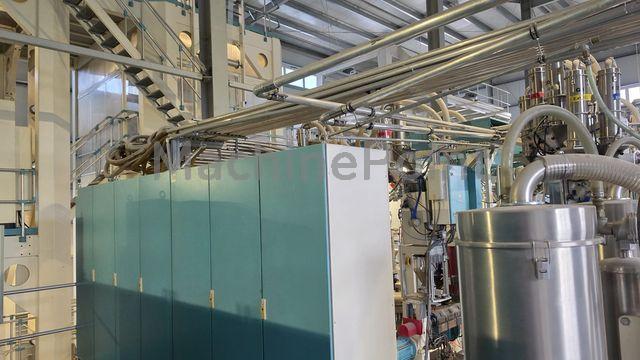

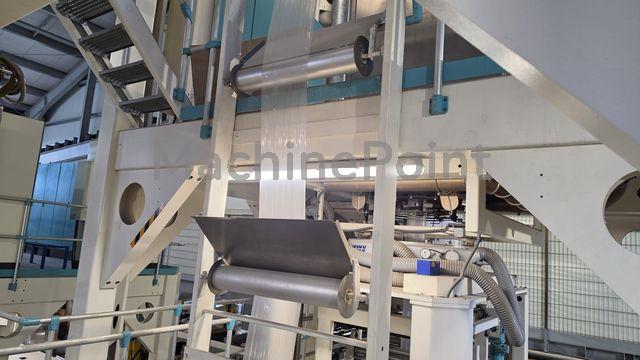

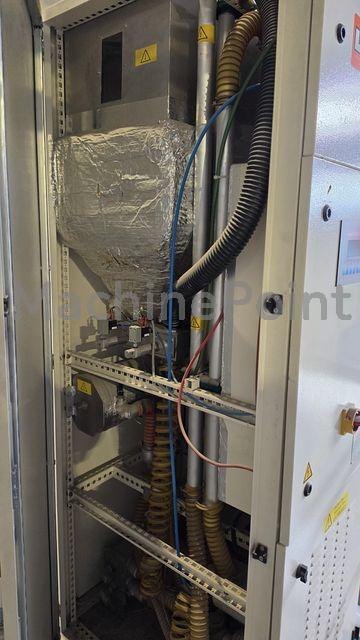

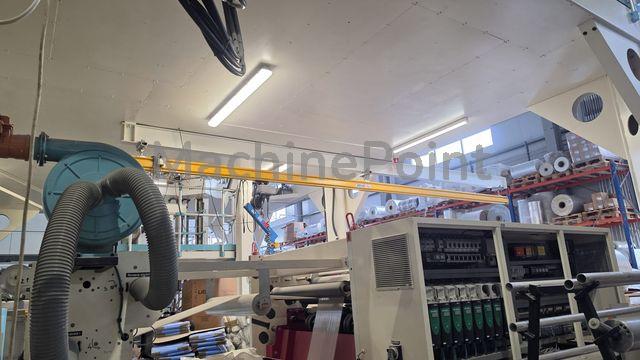

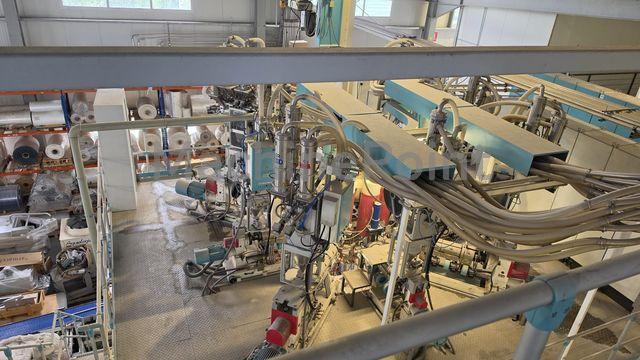

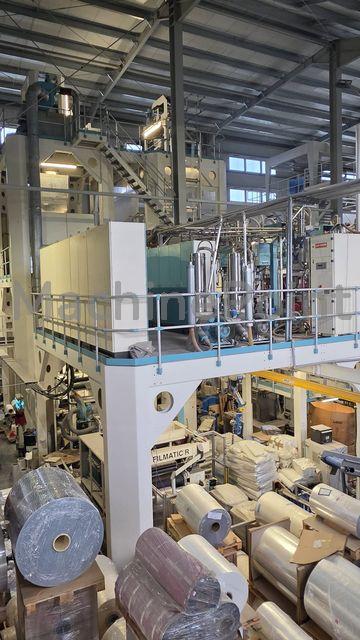

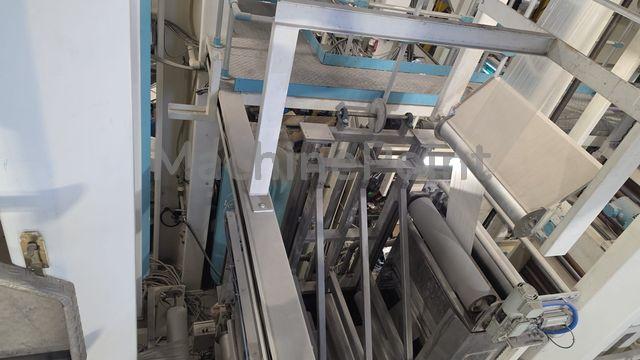

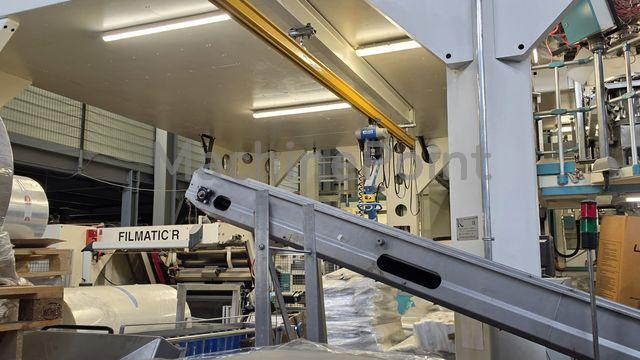

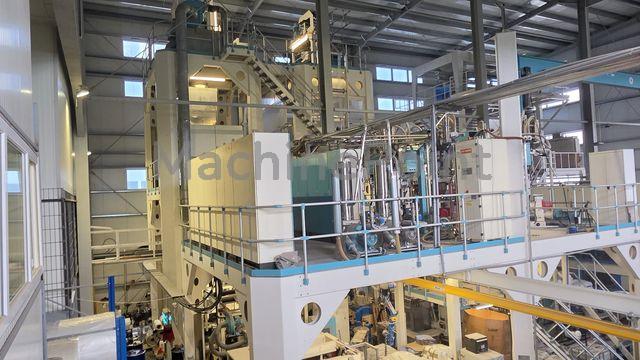

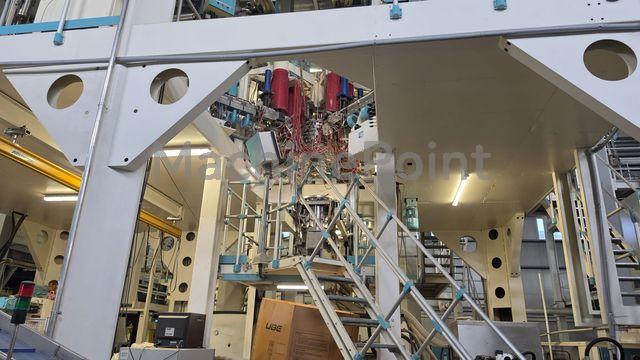

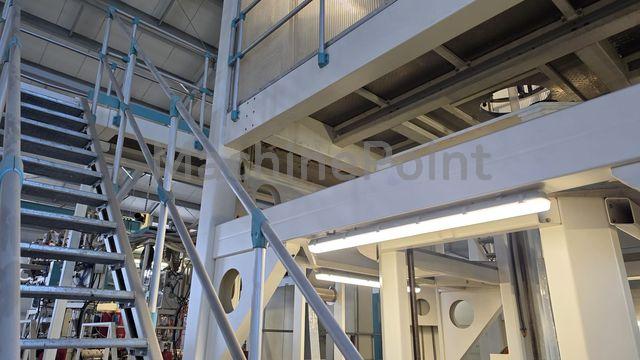

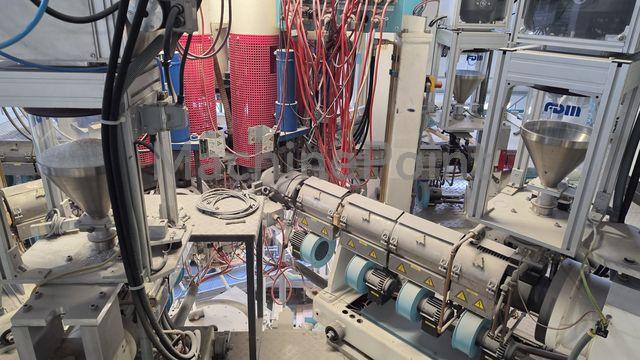

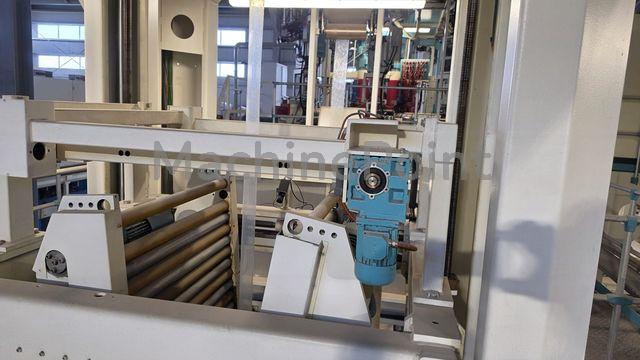

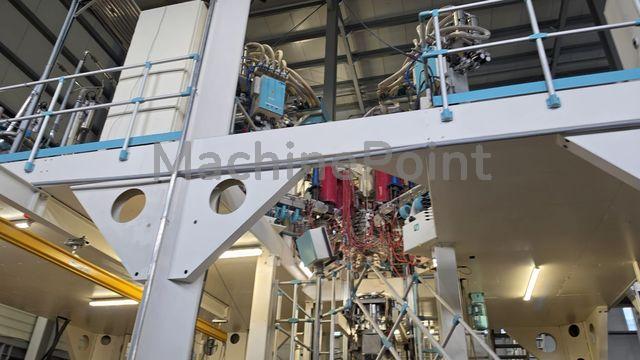

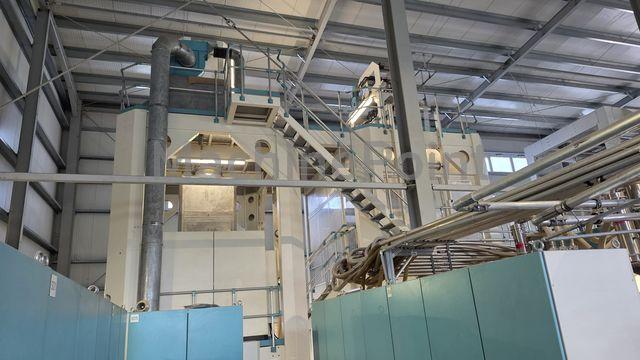

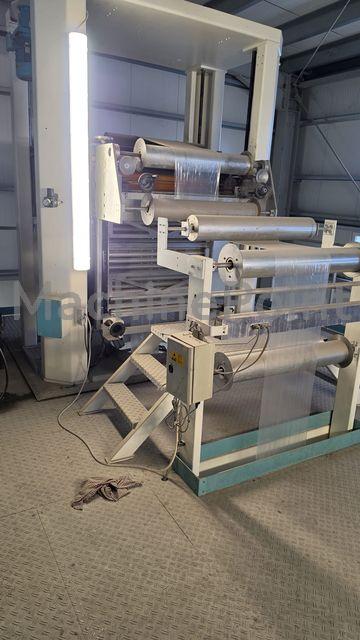

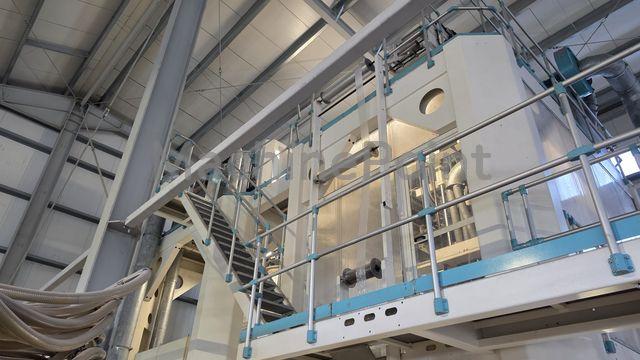

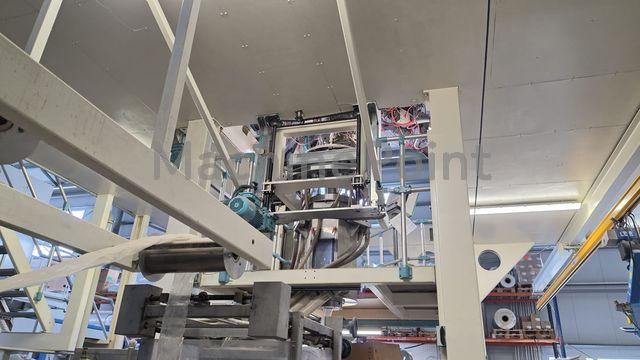

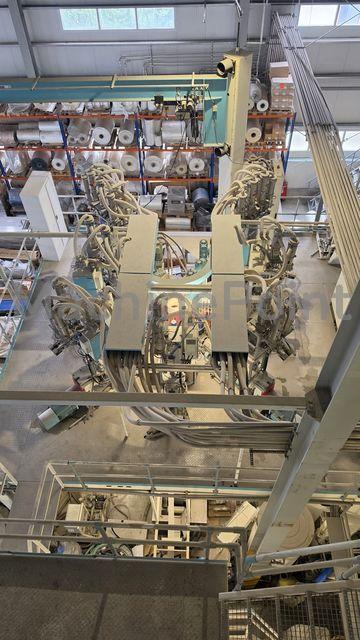

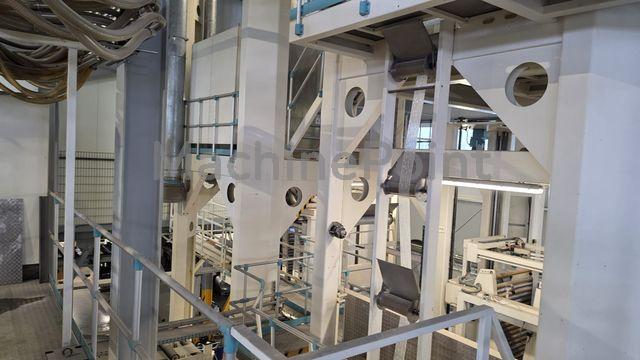

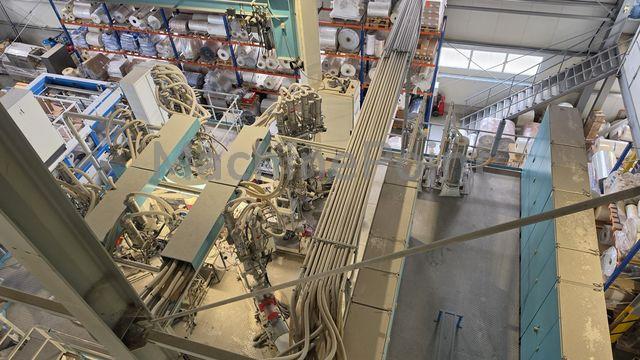

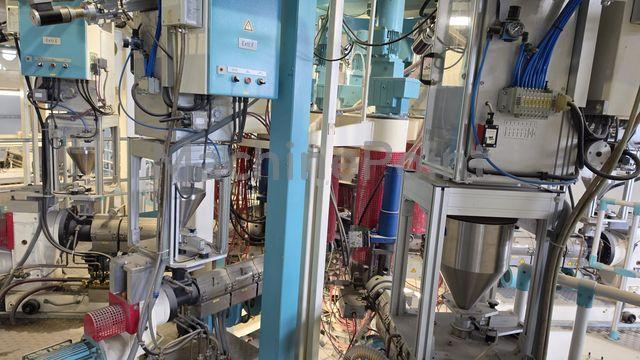

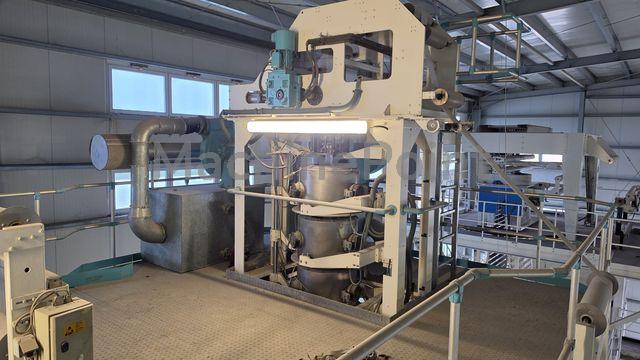

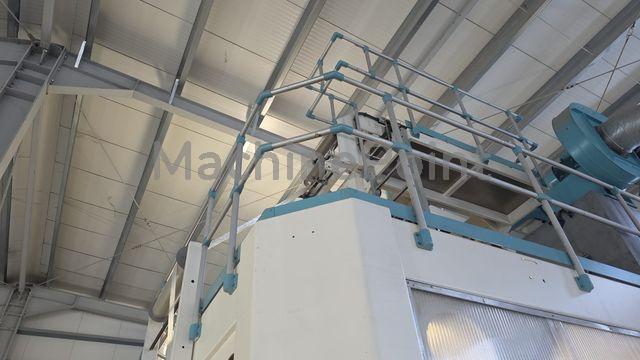

Used KUHNE Tripple bubble of 2006 for sale

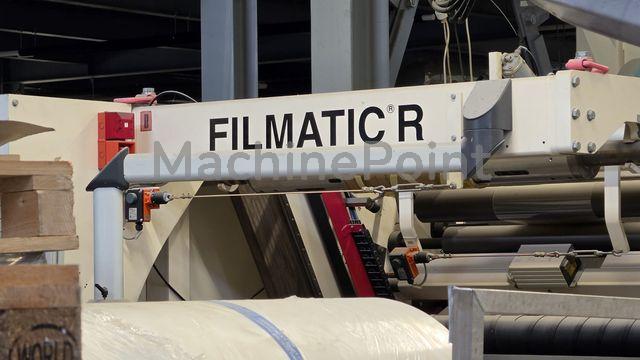

Average consumption: 160 kW No dosing system Includes co-extruder Battenfeld for hot lamination (PP/PE) Includes refurbished grinder HERBOLD. In 2016 the line was modernised. Changes: 1. Modern double rewinder 2. Melt pump 3. Control cabinet 3. 4 calender motors SEW Eurodrive.

Water-quench 3 Layer blown film extrusion line turned up-side-down for production of Films (ex. Medical) of PP/TPP/PP Layer Structure: A - B - C H-PP /T-PP/H-PP 20-25 % / 50-60 % / 20-25 % Extruder capacity K 105 - 30 D: max.250 kg/h PP K 60 - 24 D: max. 100 kg/h PP Output is depending on raw materials, layer structures, as well as on film width and -thickness Width tolerances: +2 / -0 mm Disk calibrator and cooler for connection to water chiller Rotating Haul off Web Edge control Automatic Turret Winder to wind up the film tube winding speed 100 m/min. max. winding shaft for cores with 6 inches Inner-diameter max. winding diameter* 800 mm mm max. film width* 700 mm *maximum diameter/width only with 6“ cores Raw material feeding- and Dosing unit consisting of: 1 gravimetric dosing unit, 3 components, incl. suction feeder for Extruder B 2 gravimetric weighing hopper, incl. suction feeder for Extruder A and C 1 central filter with suction blower Thickness measuring device with capacitive sensor Automatic thickness regulation via cooling ring Unit for Multiple-up slitting up to 4 up's and edge trim 1 Annealing Unit for heat setting of the film Some Spares available Control Siemens S7 with profibus disc

Coextrusion line for PS and PP processing. Sheet width: up to 1250 mm. Up to: 7 layers Extruders : Main extruder type: KHS70EE-33D Year of manufacture: 2008 Driven by a KNODLER asynchronous motor, type CMG 61.1-4, power 147 kw, year of manufacture 2012. Equipped with a gear pump: EXTREX 56GP, year of manufacture 2008. Co-extruder 1: K60E-33D Year of manufacture 2008. Driven by a KNODLER asynchronous motor, type CMG 30.1-4LL power 75 kw, year of manufacture 2018. Equipped with an EXTREX 45GP gear pump, year of manufacture 2008. Co-extruder 2: K45-24D Year of manufacture 2008 Co-extruder 3: K45-24D Year of manufacture 2008 Mann Hummel gravimetric system, managed by an S7-300 PLC. Year of manufacture 2006, overhauled and upgraded in late 2014. 2 raw material suction pumps, power 6.6 KW K70 main screw: equipped with 6 dosing components. - CS1 and CS3 with a volume of 50L (22 kg). - CS2 volume 25L (12 kg). - CS4 volume 15L (7kg) - CS5 and CS6 volume 6L (3kg) K60 coextrusion screw: equipped with 4 dosing components. - CS1 volume 25L (12kg) - CS2 volume 15L (11kg) - CS3 and CS4 volume 6L (3kg) 45 coextrusion screw: equipped with 2 dosing components. - CS1 volume 15 L (7kg) - CS2 volume 6L (3kg) Die 1250 mm , Year of manufacture 2014 Chill roll GA3.5/4V - 1300 equipped with 3 smoothing rolls C0-C1-C2 and 2 auxiliary cooling rolls and a belt conveyor, the roll dimensions are as follows: - C0: 350 * 1300mm - C1 - C2: 400* 1300mm - 4 auxiliary rollers: 300 * 1300mm Year of manufacture 2008. Cooling system (heat exchangers) with chilled water: Consisting of 3 FRIGOTROL cooling units Type S-TT 140/12 C-ST Year of manufacture 2008. Main puller: Type BA 1/200/1300. Equipped with two 200*1100mm drawing rollers: 1 rubber roller and a second metal roller. Year of manufacture 2008 Winding and cutting system: LSF brand, year of manufacture 2008, consisting of 4 winding stations, stations 1 and 2 with twin shafts on mobile carriages and 3 - 4 with complete shafts on mobile carriages, giving us the following possibilities: 1 track, max width 1600 mm. 2 tracks, 2*550mm 3 lanes, 3*360mm Equipped with : - 50m capacity accumulator, winding speed varying between 5 and 70m/min and 85m/min overspeed for accumulator emptying, capable of applying a tension of 120N to 700N to the strip. - Cutting system comprising 4 blades and 4 counter-blades driven by a hexagonal spindle driven by an electric motor (2 edge cuts, 2 center cuts). Winding shafts on mobile carriages are designed for 8" (203.2mm) chucks. Thickness gauge brand SBI TMD4G-EL/120.35.200, Year of manufacture 2016

It is a single screw extruder with Ø60mm. There are 2 screws available: a flat one (universal) and one with a mixing element at the end. It has a DC motor with peak Power of 48 kW and 5300 Nm max Torque The machine was used for profile extrusion. The Throughput is rated by the manufacturer as follows: 150 kg/h PVCw 170 kg/h LDPE 140 kg/h HDPE 120 kg/h PP

Minimum thickness 8 my Maximum thickness 100 my Dosing system: Octogon; 1 component Rotating die head Gap: 1,6 Rewinder: max. diam 800 mm Corona treatment Fixed haul off Gusseting device: yes The motor was renewed in 2022: new driver The screw was changed in 2022
