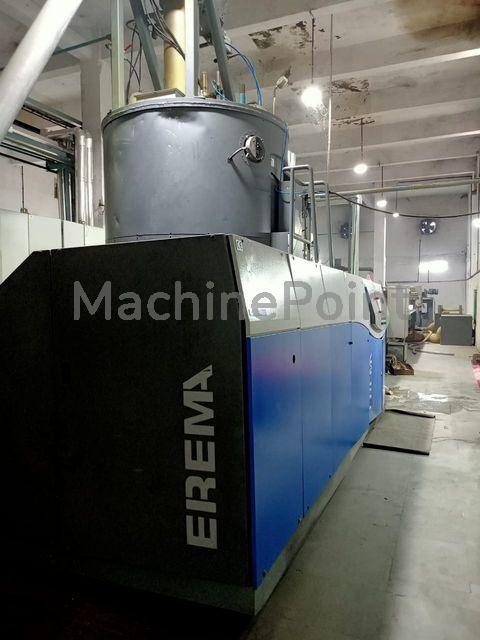

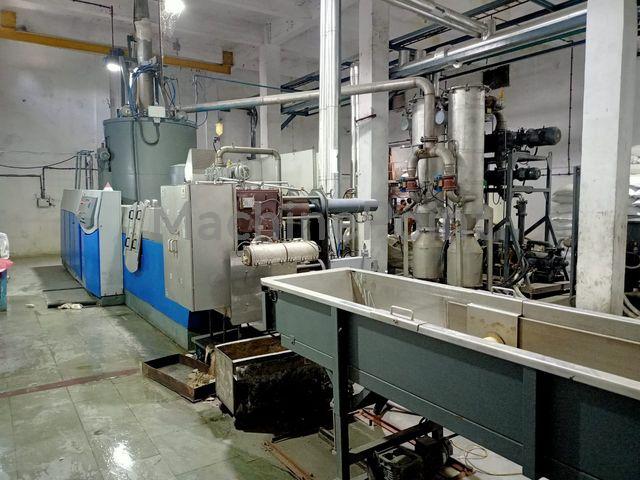

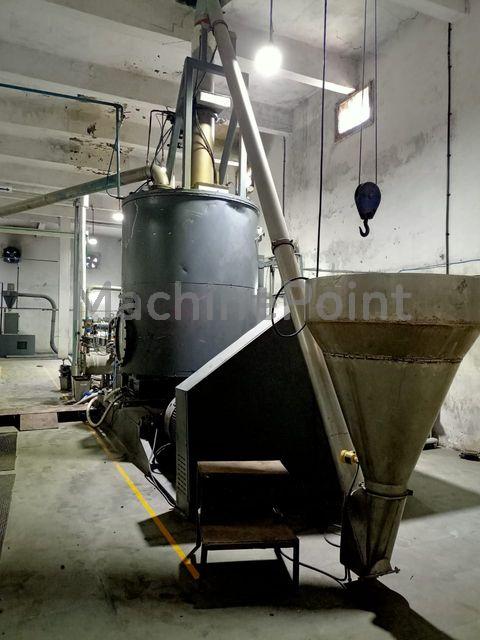

Used EREMA Vacurema 1716TE-VSV of 2007 for sale

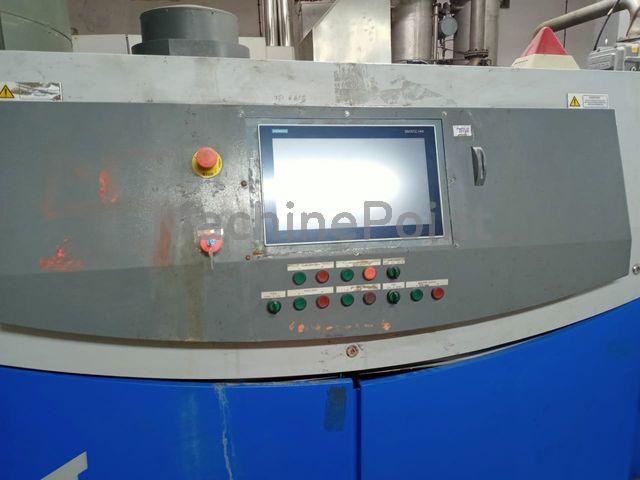

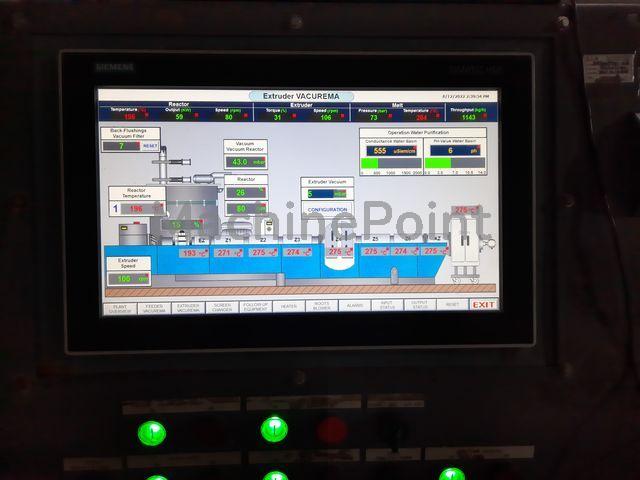

Max. Output (Capacity): PP : 500 kg/h PE : 400 kg/h Other specs: Material : LLDPE, LDPE, HDPE, PP 2 die plates available: one for PE and one for PP Belt conveyor Double layer all metal detector Intarema process combination Erema air flush technology Erema backflush system Set die face pelletising system - Hot die face pelletiser -Pellet dewatering screen -Water pump station -Pellet drying centrifuge Pellet transport system Bag fill unit Touch control panel Standard control system Intarema

INTAREMA® 1310 TVEplus® RegrindPro® regranulation line Recycling line with next accesories: - Conveyor belt FB_7000_110_SH - Piovan feeding system - Backflush filter - Extraction system - Roller feeder- RZ_120S - Dosing unit for granulate DUPE_40_G - Twin screw extruder I_1310_TVEPLUS - Process water basin - Hot cut granulation HG_244D - Granulate dewatering screen GS_201_700 - Water pump stand - Granulate scale - Granulate centrifugal dryer GZ_700_M7 - Granulate transport system - Filling station - Swiveling side wall for PCU hood Belt 7000 x 1100 mm with metal detector Operating water tank Filling capacity approx. 860 l Backflush filter : - Screen diameter: 215 mm - Number of screen packages: 4 Hot cut - Granulation - Number of knives: 4 Granulate dewatering screen Granulate centrifugal dryer Drive power 7.5 kW Roll-feeder Feed cross-section: 450 x 150 mm Drive power: 1 x 1.5 kW Max. feed speed 20 m/min Dosing unit for granules Functionality gravimetric Bulk density 0.6 kg/dm³ Dosing 4 to 40 kg/h Double screw compactor Bulk density 0.6 kg/dm³ Throughput 0 to 100 kg/h Screw diameter 40 mm Bagging station Frame for 2 big bags Switch pneumatic Level sensor

Material : LLDPE, LDPE, HDPE, PP LDPE screw refurbished Another screw for PP and die plate for PP are included Belt conveyor Double layer all metal detector Intarema process combination Extruder motor : 132 kW Process utility supervision Erema air flush technology Trox exhaust unit Automatic input slider Powered exhaust system Water system for vacuum pump Erema laser filter, screen diameter 350mm, 2 screens Set die face pelletising system - Hot die face pelletiser -Pellet dewatering screen -Water pump station -Pellet drying centrifuge Pellet transport system Bag fill unit Touch control panel Standard control system Intarema

HDPE : 900-1200 Kg/h LDPE/LLDPE : 1000-1300 Kg PP Conveyor belt FB_10000_1200_SH Inner width of the belt : 1150 mm Usable conveyor length : 9900 mm Max. load by conveyor belt : 200 kg Drive power : 1.5 kW Belt speed : 4.7 m/min Weight with metal detector : approx. 2180 kg Process combination I_1714_TVEplus Shredder drive : 315 kW Gate: 0.12 kW Extruder drive : 315 kW Heating capacity zone 1 cylindrical zone (ZZ-1) : 13,2 kW Heating capacity zone 2 cylindrical (ZZ-2) : 8,80 kW Heating capacity zone 3 cylindrical (ZZ-3) : 10,90 kW Heating capacity zone heating zone of plug (VEZ) : 2,70 kW Heating capacity zone 4 cylindrical (ZZ-4) : 15,50 kW Heating capacity zone 5 cylindrical (ZZ-5) : 9,90 kW Heating capacity zone 6 cylindrical (ZZ-6) : 8,80 kW Heating capacity zone 7 cylindrical (ZZ-7) : 8,80 kW Heating capacity adaption zone (AZ-1) : 3,40 kW Cooling pump : 1,10 kW Vacuum pump : 4,30 kW Total weight : approx. 20700 kg Laser filter LF_2_350 Drive : 4,00 kW Heating capacity of laser filter zone 1 (LFZ-1) : 2,70 kW Heating capacity of laser filter zone 2 (LFZ-2) : 4.70 kW Heating capacity of laser filter zone 3 (LFZ-3) : 7.22 kW Heating capacity of laser filter zone 4 (LFZ-4) : 4.30 kW Heating capacity of laser filter zone 5 (LFZ-5) : 5.50 kW Heating capacity - Discharge zone 1 (LFZ-6) : 0,87 kW Cooling fan - Discharge zone 1 (LFZ-6) : 0,36 kW Heating capacity - Discharge zone 2 (LFZ-7) : 0,62 kW Cooling fan - Discharge zone 2 (LFZ-7) : 0,36 kW Max. operating temperature : 300 °C Max. permissible mass pressure : 400 bar Dust extraction SAS_2500 Ventilation capacity : max. 3000 m3/h Drive power : 1,50 kW Weight : approx. 174 kg Service water tank BWB_500_500_S Tank volume : approx. 420 l Drive power of the water pump : 0,25 kW Weight : approx. 155 kg Hot cutting pelletizing head HG_244D Number of pelletizing blades : 4 Revolutions per minute of the knife head (50Hz) : 1420 rpm Drive power of the knife head : 2,20 kW Pelletizing zone heating capacity (GZ-1) : 4,30 kW Max. working temperature : 300 °C Max. permissible melt pressure : 160 bar Granulate dewatering screen GS_2010_1000 Vibrating screen dimensions : 1900 x 700 mm Lump separation : < 20 mm Tank volume : 630 l Drive power of vibrating motors : 2 x 0.30 kW Weight of the water separating screen : approx. 360 kg Condition of the water pump WPS_700 Driving power of the water pump : 5,50 kW Weight: approx. 245 kg Granule centrifugal dryer GZ_1000_M15 Drive power : 15 kW Weight : approx. 616 kg Conveyor blower FG_40 Ventilation capacity : max. 2600 m3/h Drive power : 3,0 kW Weight + soundproofing : approx. 123 kg Vertical Silo & Big Bag station included The entire electrical and mechanical part of the extruder was overhauled and new screws and gears were ordered. The machine is delivered with new rear screw, new intermediate assemblies (sprockets) and renewed front screw. The engine part is delivered with all the engines overhauled and with the bearings changed and the gearbox also overhauled. Invoice and reports of everything can be delivered.

It is an edge trim extraction + regranulation line. Sell since only used 10hours Output 10-50kg/h Water cooled
