Used BOA IMPRESS D130 of 2012 for sale

Technical Specifications:

Other Specifications:

Channel baler equipped with vertical pre-compression flaps, an automatic tie-down system, and a
hydraulically operated compression channel for fully automatic bale production.

The vertical pre-compression flaps in the baler's feeding opening close simultaneously, creating a
closed compression channel. This results in the production of optimally heavy, homogeneous bales
without the need for cutting. The flaps are constructed in such a way that the forces acting upon
them are effectively absorbed. The front flap is smaller in relation to the load distribution and is
equipped with teeth that allow material to be cut between the flaps. The rear flap is equipped with a
hydraulic escape mechanism and an anti-blocking switch, so that intervention is kept to a minimum.

The baler is ideally suited for processing paper, cardboard, plastic film, rigid plastics, big bags, and
other recyclable materials. The press ram is equipped with teeth, which facilitates the processing of
very expansive materials.

Baler is available excluding conveyor belt and roller platform

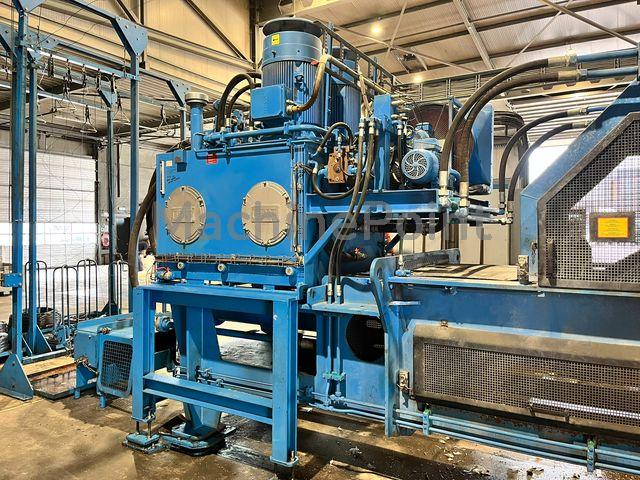

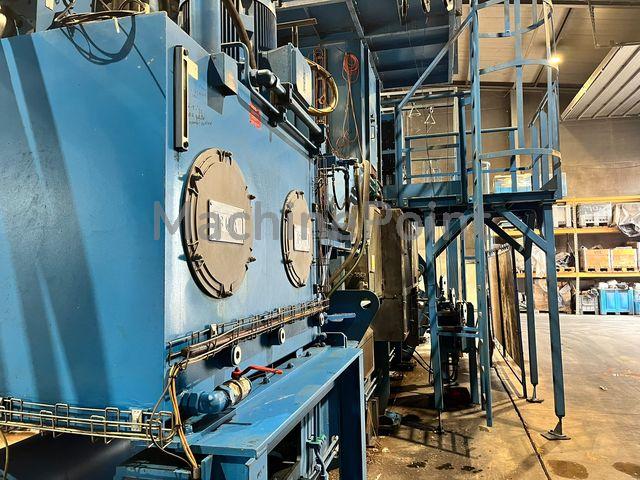

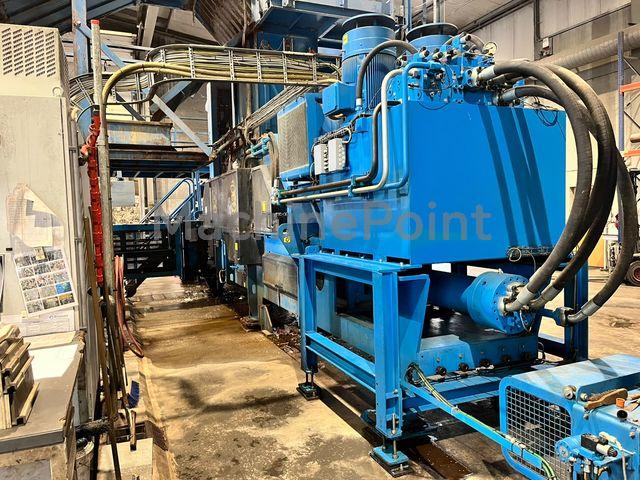

- Hydraulic unit drive: 160 kW (total)
Main pump(s): 2 x 55 kW
Steering pump: 18.5 kW
Filter pump: 5.5 kW
Oil cooler: 3 kW
- Insulation class: IP 55
- Working pressure: 280 bar
- Oil tank capacity: 2.700 liters
- Pressing force: 1.266 kN 126 t
- Specific pressing pressure: 16.0 kg/cm²
- Pressing stroke: 2.900 mm
- Pressing channel dimensions: A- channel: Width : 1.100 mm , Height : 720 mm
- Pressing chamber volume: 2.3 m³
- Bale length: Adjustable (approx. 180 mm to 1 .800 mm)
- Bale weight indication: up to approx. 650 kg (material dependent)
- Capacity with cross-tying: varying by type of material: avg. approx. 450 kg/bale
- Press stroke volume unloaded: 567 m³/h
- Average cycle time loaded: 19 sec
- Tying: Cross - wire, single-wire tying also possible.
- Number of tying wires: 5 vertical and 3 horizontal
- Filling chute dimensions: 1,620 x 1,000 mm

Specials:
- Extended bale outlet.
- Filling hopper with inspection hatch, platform, and cage ladder.
- Extra door in the filling hopper at the level of the flaps.
- Wire links are supplied in large rolls.
- Operating platform for the hydromat.
- Control panel with swing arm.
- To ensure optimal filling for various material types, additional photocells have been installed, a total of 5 units.
- The platform is mounted opposite the belt outlet, allowing a direct view of the belt through the hatch.
- Balelocks.
- The horizontal beams of the back-pressure channel are fitted with 5 mm thick stainless steel plating on the inside!
Due to this fully stainless steel construction, there is no degradation/rust formation on the material in the presence of moisture.
- The pump motors are equipped with a frequency converter.
- Wire retraction system for cross-tying to create very small bales.
- Remote control

Maintenance history :

The baler has always been serviced by BOA or a related company specializing in the maintenance of BOA balers.
The baler has been fully lubricated here weekly and fully cleaned several times a week.
Below is a list of some (major) replacements/repairs carried out over the past year(s). Only major replacements are listed in proportion to time.
- Replaced wiring for filler eyes (2026);
- Replaced the seal kit of the flap - cylinder(2025)
- Installed a completely new hydraulic gear pump (2025)
- Overhaul of horizontal and vertical Domat (2025)
Twist fingers
Wear plates
Knives
Twist shafts
Bearings
- Replaced threading cylinder (2025)
- Renewed PLC screen (Siemens) (2024)
- Replaced Cilinders of flaps (2024)
- Replaced master cylinder sleeves (2022)

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
