Used ZHEJIANG OUNUO MACHINERY SJFM-1700D of 2024 for sale
Extrusion lines for coating ZHEJIANG OUNUO MACHINERY, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used ZHEJIANG OUNUO MACHINERY SJFM-1700D
Ref.: 300050453
Year: 2024
Brand: ZHEJIANG OUNUO MACHINERY
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
Other Specifications:

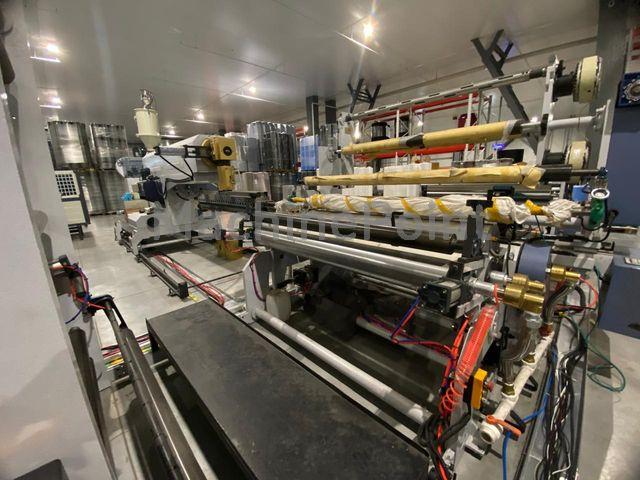

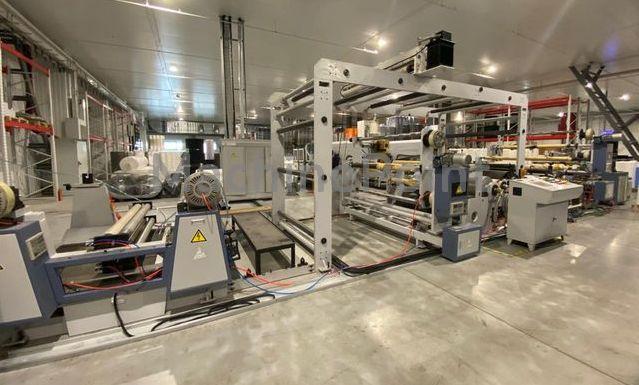

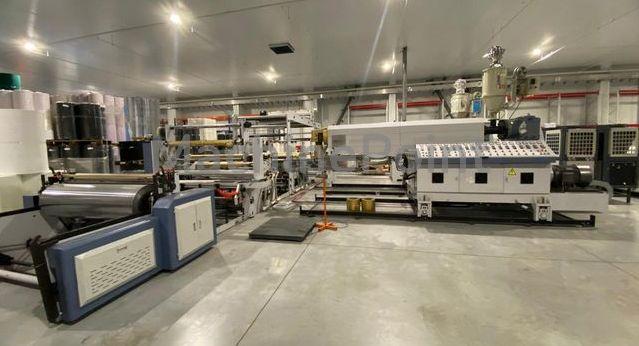

Extrusion coating and lamination line.
Two independent extruders for double-sided coating application in a single pass.The line is optimized for processing LDPE, PP, EVA, as well as biodegradable PLA / PBS polymers.
Working width: 1600 mm
Maximum unwinding roll width: 1700 mm
Laminating speed:
Designed speed: up to 150 m/min
Production speed: 100–120 m/min
Operating temperature range: 150°C – 320°C
System heat-up time to operating temperature: 90–150 minutes

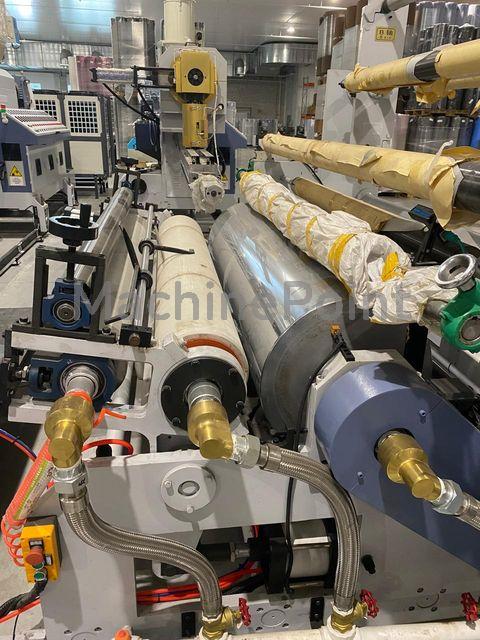

Number of rollers/shafts: 40 pcs. (Including mirror-finished cooling rollers and silicone pressure rollers.)
The line includes:

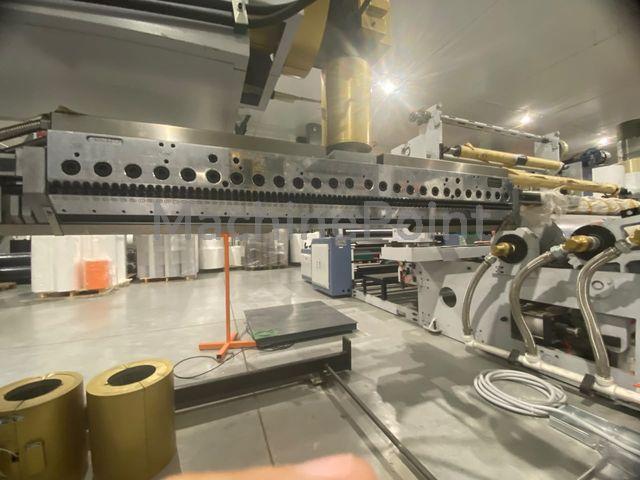

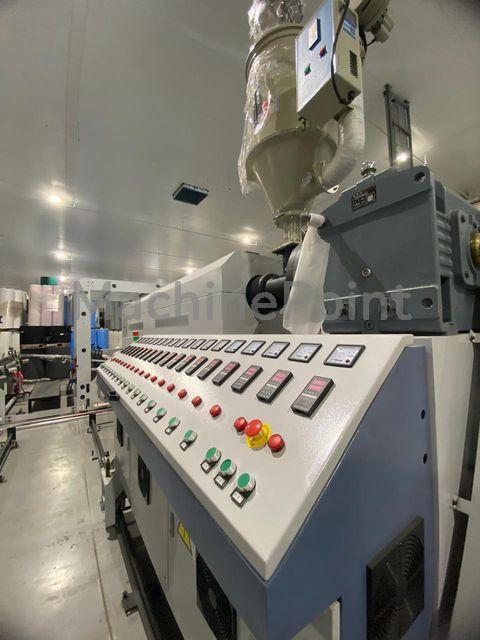

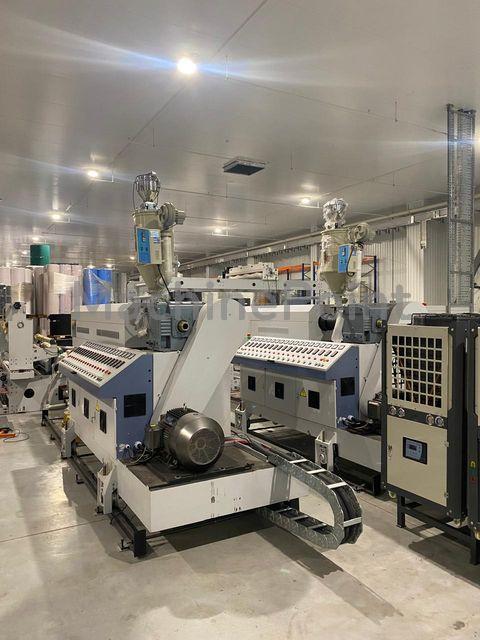

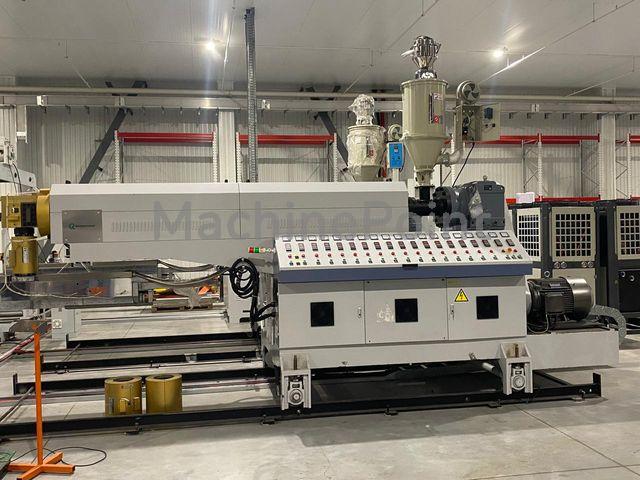

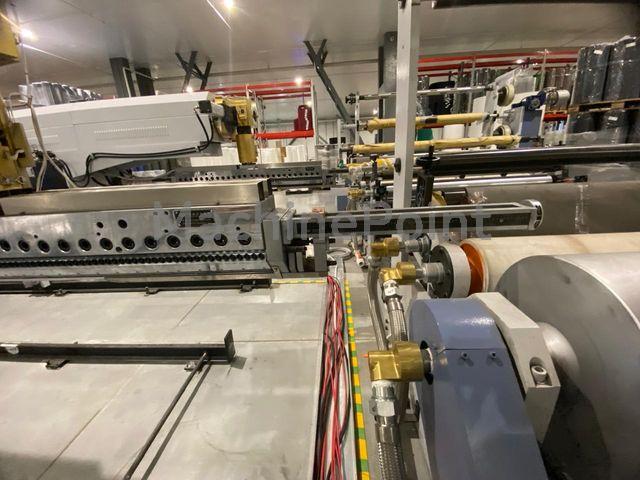

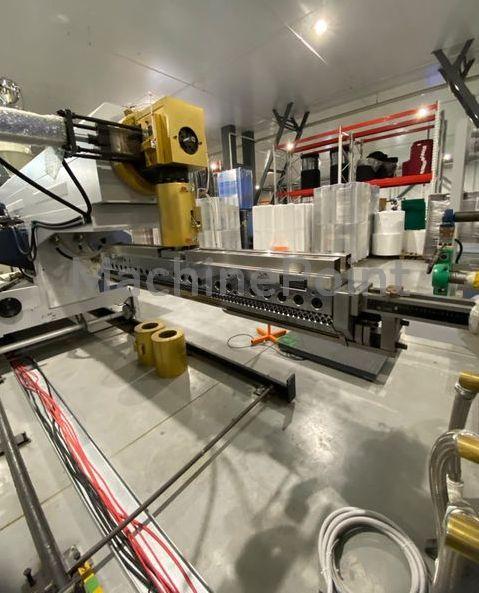

Two independent extrusion units with 1700 mm T-Die extrusion die head.

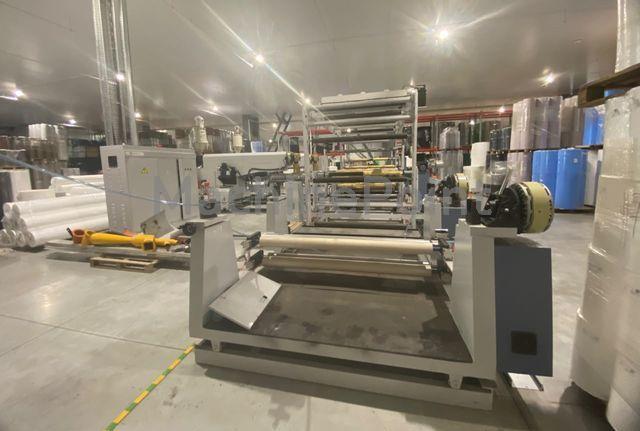

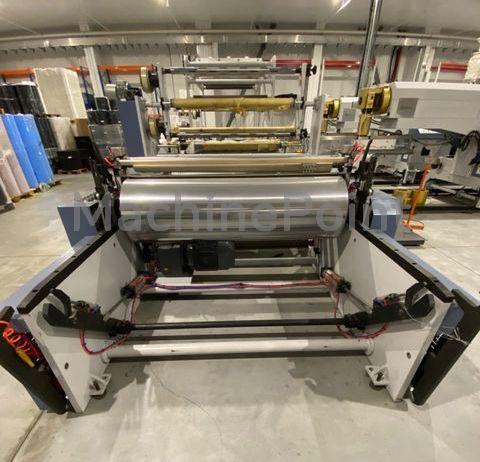

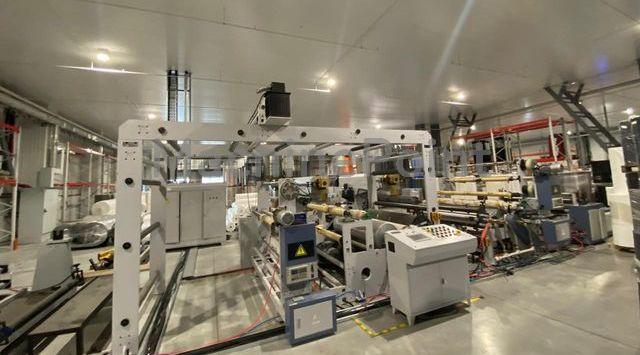

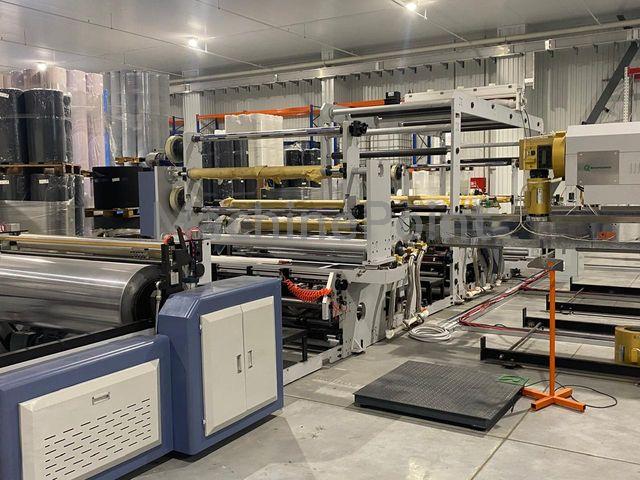

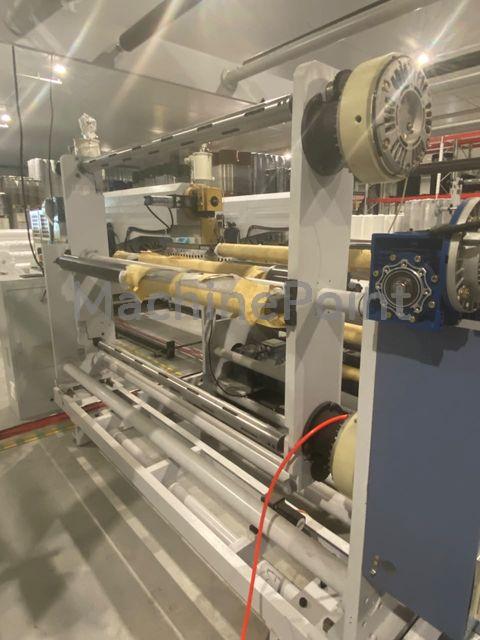

Two-position automatic turret-type continuous unwinding and rewinding system.
2 primary unwinders and 2 rewinders working in continuous (reversing) mode for rapid roll changes without reducing speed or stopping production.
High-efficiency corona treatment unit for substrate surface activation and preparation.

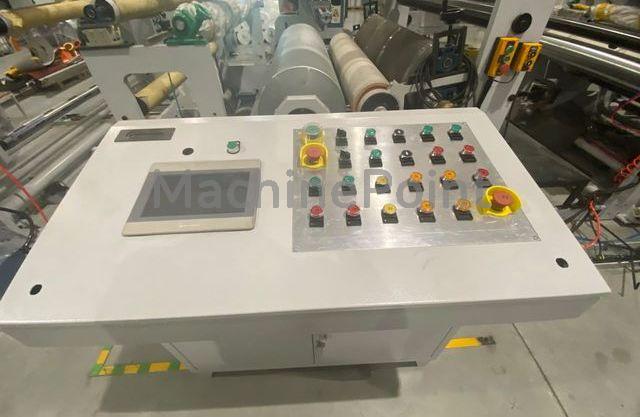

Centralized automatic web tension control system based on PLC with HMI touch-screen control panel.
Heavy-duty compression unit for rapid melt cooling.
Precision edge trimming system with rotary knives and vacuum extraction.
The primary purpose of the line is the production of multilayer composite and aseptic packaging materials requiring protection and coating on both sides.

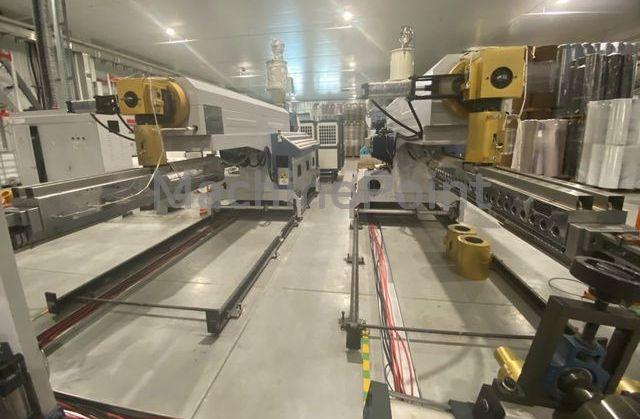

The presence of two independent extruders (dual-frame configuration) makes it possible to apply molten polymer (PE, PP, EVA, EAA, etc.) to both the front and reverse sides of the substrate without re-threading the roll.
Applicable substrates:
Various types of paper and paperboard. (Kraft paper, packaging cardboard and cardboard for cups.)
Woven polypropylene materials (PP bags) and nonwoven fabric.
Aluminum foil.
Polymer films. (BOPP, BOPET.)
The line is practically new: it has been installed but has never been put into production. It includes all the original factory components.
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 50 Hz
