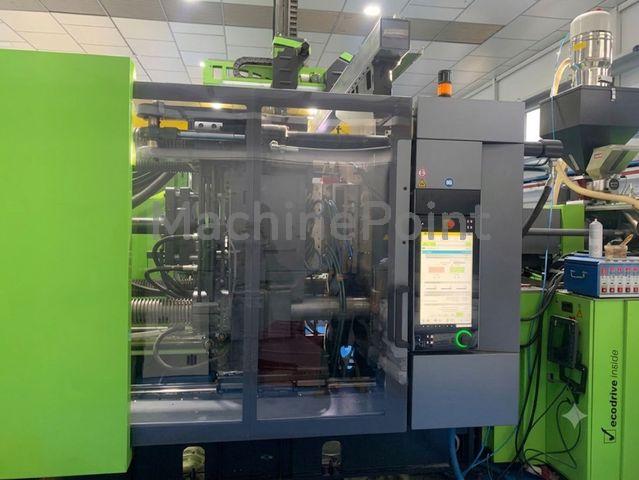

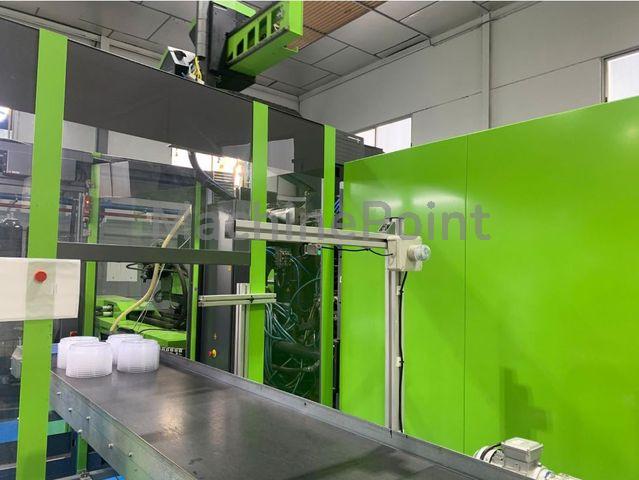

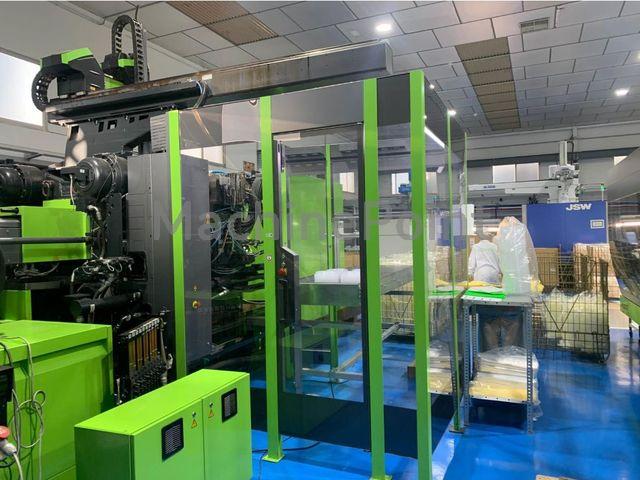

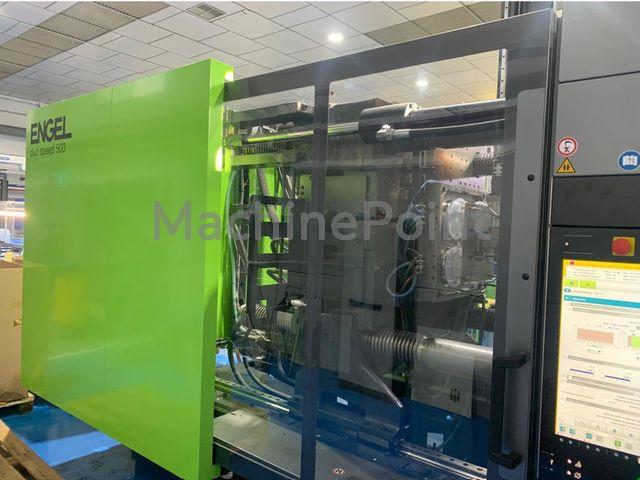

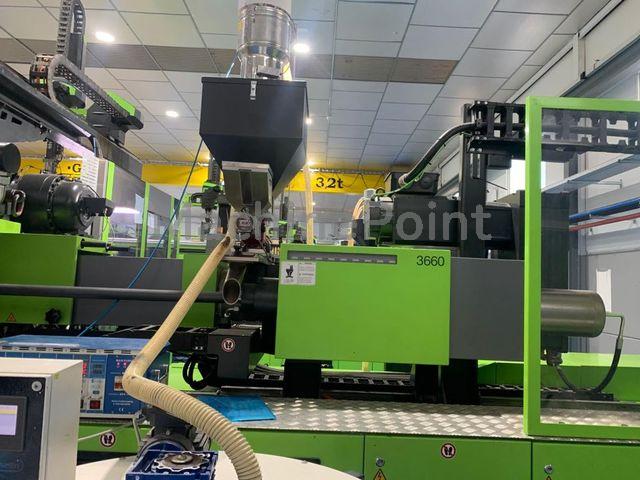

Used ENGEL DUO 3660/500 Speed of 2021 for sale
2021 | Ref.: 300050461
Injection molding machine from 250 T up to 500 T ENGEL, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.
Data Sheet of Used ENGEL DUO 3660/500 Speed
Ref.: 300050461
Year: 2021
Brand: ENGEL
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 500 ton
- Shot Weight (Max): 1183 g
- Distance Between Tie-Bars (H): 910 mm
- Distance Between Tie-Bars (V): 830 mm
- Platen Size (H): 1270 mm
- Platen Size (V): 1260 mm
- Screw Diameter: 70 mm
- Mould Height (Max): 1100 mm
- Mould Height (Min): 350 mm
- Daylight Between Platens (Max): 1850 mm
- Opening Stroke (Max): 1500 mm
- Ejector Force: 9.5 ton
- Ejector Stroke: 250 mm
- Core Pulls: Yes
- Number Of Core Pulls: 2
- Screw L/D Ratio: 25
- Screw Speed: 255 rpm
- Screw Torque: 3030 N·m
- Injection Volume: 1300 cm³
- Injection Pressure: 2300 bar
- Injection Rate: 439 cm³/s
- Nozzle Force (Max): 11 ton
- Nozzle Stroke (Max): 600 mm
- Heating Zones: 8
- Heating Capacity: 40.8 kW
- Oil Tank Capacity: 759 l
Other Specifications:
INCLUDED OPTIONS
- Electric loading motor
- 2 cores ulls
- 4 blowers

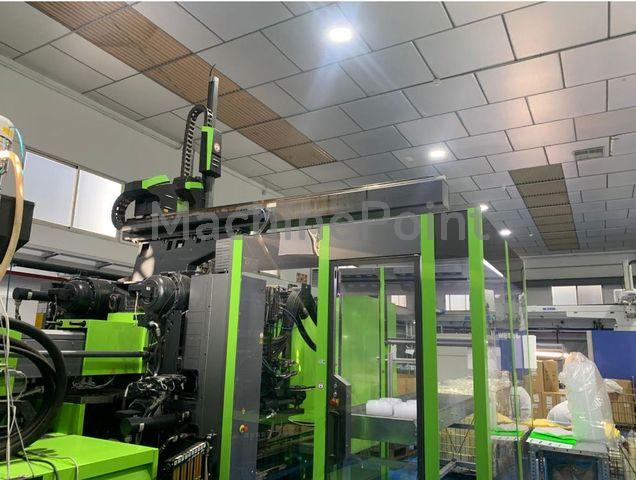

- Integrated Viper robot
- Safety fencing
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
