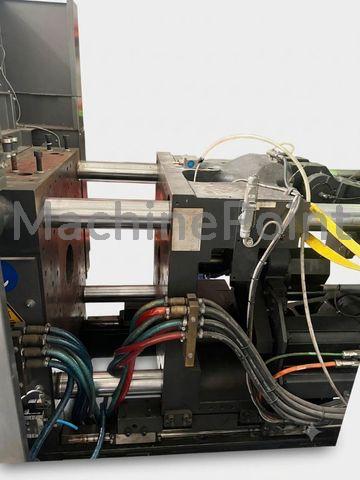

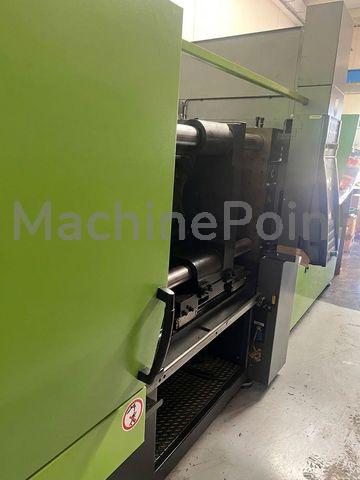

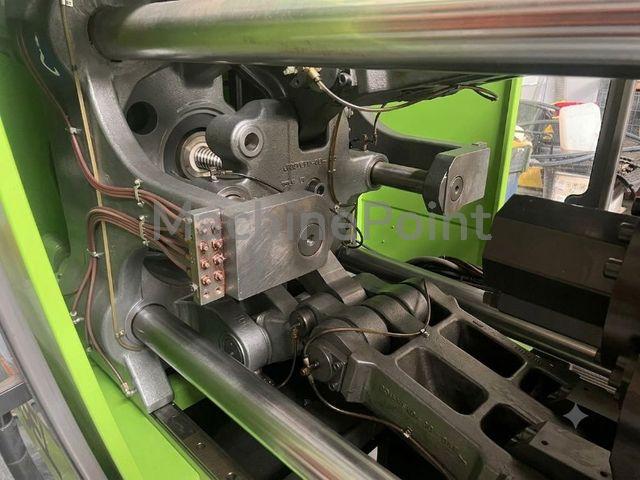

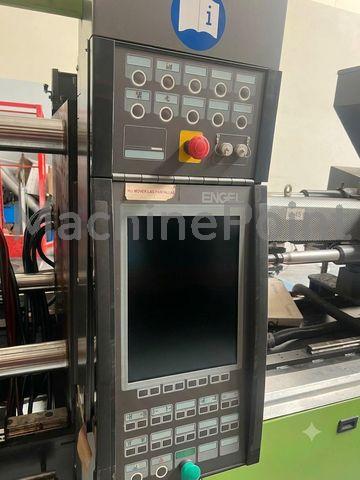

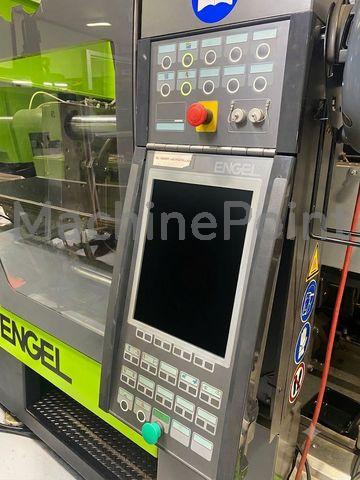

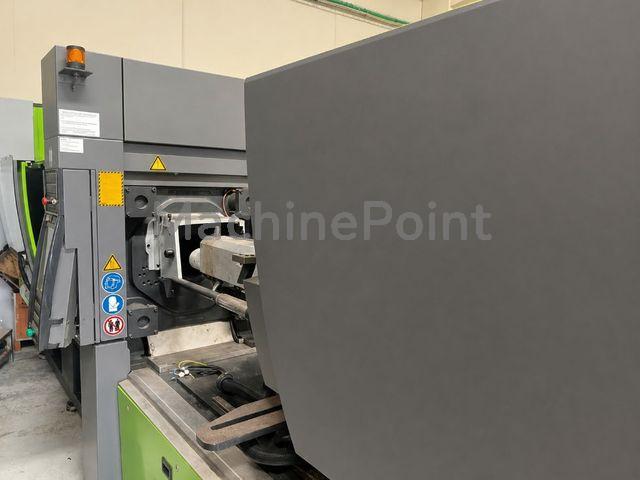

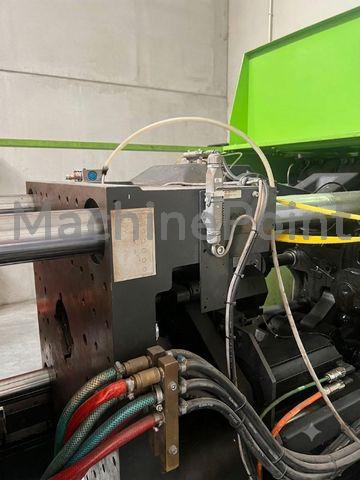

Used ENGEL EMAX 180/430 of 2010 for sale
2010 | Ref.: 300050476
Injection molding machine up to 250 T ENGEL, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used ENGEL EMAX 180/430
Ref.: 300050476
Year: 2010
Brand: ENGEL
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 180 ton
- Shot Weight (Max): 216 g
- Distance Between Tie-Bars (H): 520 mm
- Distance Between Tie-Bars (V): 520 mm
- Platen Size (H): 760 mm
- Platen Size (V): 760 mm

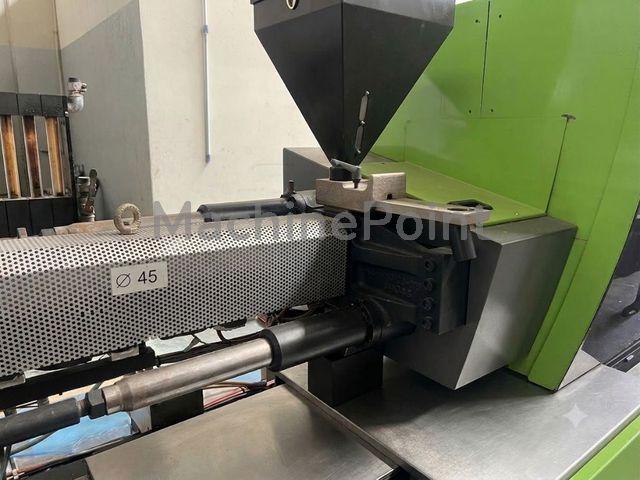

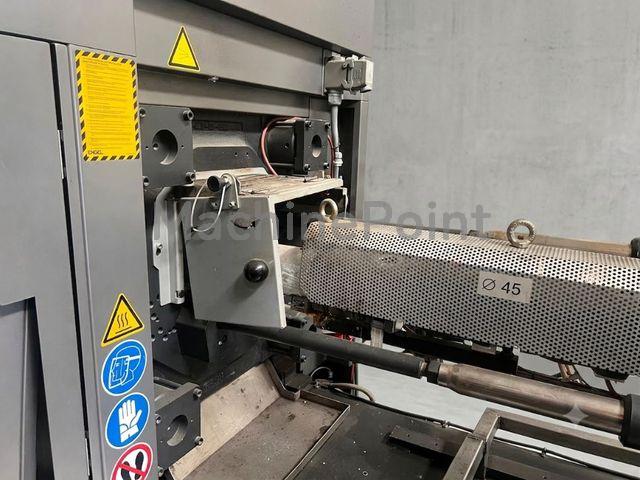

- Screw Diameter: 45 mm
- Mould Height (Max): 600 mm
- Mould Height (Min): 250 mm
- Daylight Between Platens (Max): 1060 mm
- Opening Stroke (Max): 460 mm
- Ejector Force: 3.7 ton
- Ejector Stroke: 130 mm
- Screw L/D Ratio: 19,3
- Injection Volume: 238 cm³
- Injection Pressure: 1510 bar
- Injection Rate: 171 cm³/s
- Nozzle Force (Max): 2.8 ton
- Nozzle Stroke (Max): 305 mm
- Heating Zones: 4
- Heating Capacity: 9.2 kW
- Orientation: Horizontal
Other Specifications:
INCLUDED OPTIONS
Electric machine
2 blow units

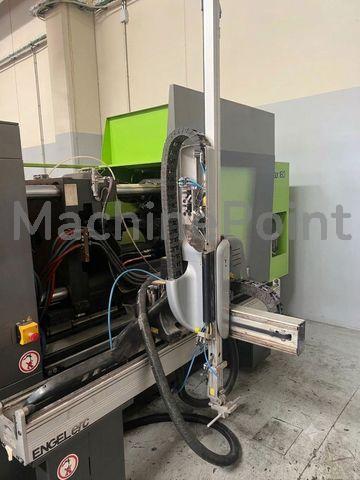

Integrated Viper robot
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Full Electric
