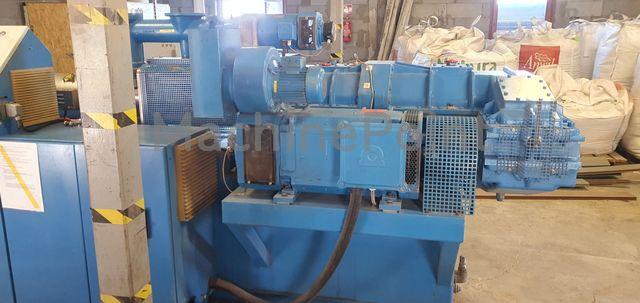

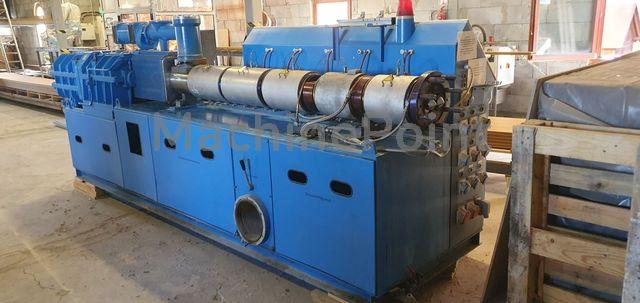

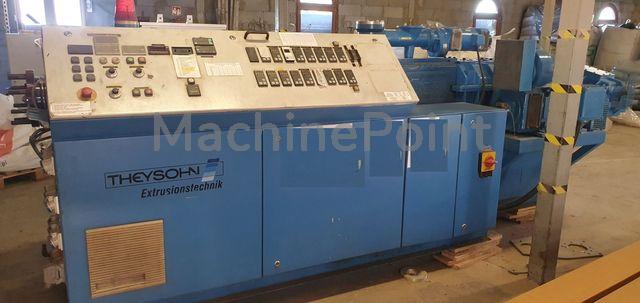

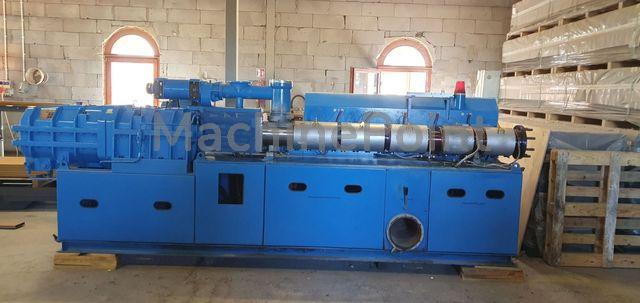

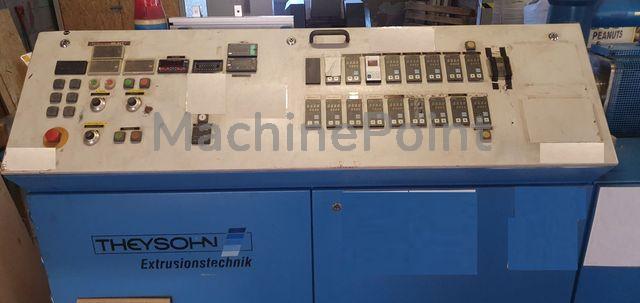

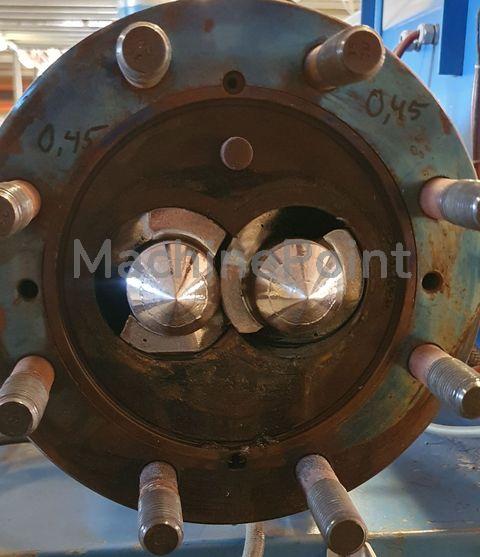

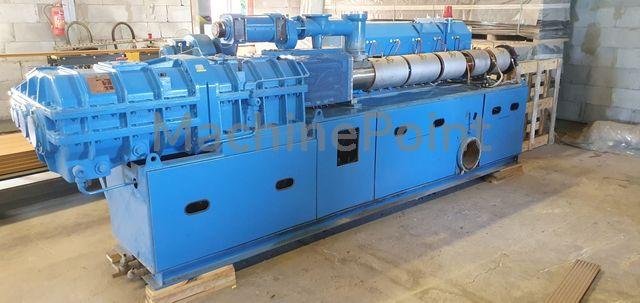

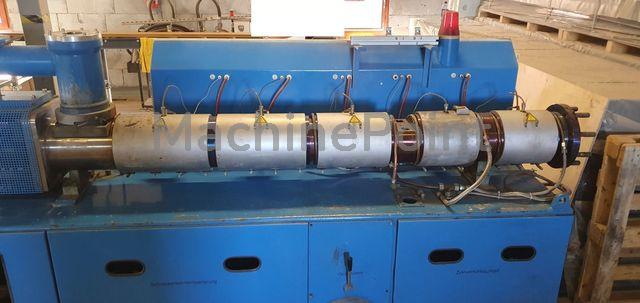

Used THEYSOHN PAR 88 of 1995 for sale

The line consists of: - co-rotating twin-screw extruder TSK 75N; - four BRABENDER dosing scales included in the line control system; - threaded head with replaceable plates; - degassing pump; - cooling bath - own design; - working platform and raw material bins feeding the line - own design Output: 600 kg/h FEEDING SYSTEM: BRABENDER Number of hoppers: 4 Gravimetric Dosing: YES - 4 EXTRUDER: THEYSOHN TSK75 Screw diameter: 75 Screw L/D ratio: 40 Output capacity: 600 kg/h Side feeder: 2.2kW Running hours: 45.961 h CONVEYING SYSTEM Granule cooler: COOLING BATH Granule blower: FAN BLOWER

Set of feed-block TW4-10 + die-head RK6-F (3-layer foam core sandwhich pipe) Feed block TW 4-10: Feed block type TW 4 -10 for co-extrusion Diameter range: 50 to 710 mm 9 heating zones Angle between extruders : 35° Trolley Heating power 15 kW Die-head RK 6-F : Die-head RK 6-F, DN 280 to 710 mm Available tooling : DN 400, 500 and 630, CR4 and CR8 21 heating zones Trolley with side movement (electric motor) and axial movement (manual) Heating power 75 kW

Parallel twin - screw extruder TTS 88R-26D Output for rigid-PVC pipes, depending on tooling and formulation: 120-420 kg/h Screw diam. 88 mm Active Screw length 26 D Effective Screw length 28 D Screw speed 40,0 RPM Drive power 45 kW/AC Drive speed 1770 rpm Torque 10600 Nm Application factor gear box: 1,5 Barrel heating power 34 kW Extrusion height 1100 mm Temperature controls for extruder: Barrel heating zones 2 Barrel heat/cooling zones 3 Adapter 1 Barrel cooling unit for zone 5 Power of pump motor 1,1 kW AC - Motor (8 poles) controlled by a frequency controller Capacity of pump (approx.) 12 litres/min Cooling of thermo-oil by means of water Single-screw extruder ME B H / 60/4x25 D for ASA and PVC granulate, pigy-back version for PVC/PVC granule and PVC/ASA International size 1-60-25 Screw diam. 60 mm LD 25D Screw speed max. 72 rpm for ASA and 42 rpm for PVC Vacuum calibrating Table VCT 3 - 5000 Clamping length 5000 mm Clamping width 380 mm DC - drive 35 kW in U-construction Profile Haul -Off CP 1,2 - 1345 E max. profile width 170 mm max. profile height 190 mm Profile Cut-off Saw SP-400 E Saw blade diam. 400 mm at max. cutting height 106 mm width 80 mm at max. cutting width 340 mm height 10 mm max. saw travel 740 mm Profile Tilting Chute PCT-6000 Profile width/height 250x250 mm Length 6000 mm Height adjustment +/- 75 mm

Theysohn HDPE extrusion pipe line Tooling: pipe diameter with variable thicknesses (16, 20, 25, 32, 40, 50, 63, 75, 90, 110)mm * Single screw Extruder Type: AS 63 Screw diameter 63mm Effective length 1610mm Speed 170rpm Torque (available) screw 3900 Nm (170rpm) Main drive DC Motor Drive Power 70kW Speed of Drive motor 2000rpm Gear Reduction i=5.77 Belt reduction ratio 450/224 i=2 Admissible backpressure of screw 323kN No. of heating zones 4 Total heating power of barrel 9.6kW Adapter 0.7kW No. of temperature controller 9 Connected power per tool zones Max 7kW Power of temp. unit for Grooved bushing 1.5kW weight 1600Kg Water consumption at 3 bar min. 1200l/h cooling water intake 3/4'' cooling water drain 3/4'' lengthx widthx height 2735x1240x1890mm Noise level 85dB * Vacuum and cooling Tanks Type VK110/6m Measure 6200x700x1200mm weight 1050Kg Design St37-Steel tank hot galvanized water supply 1 1/4''x30mm Extrusionheight 980-1150mm Data for Vacuum pump Water pump ProducerSpeck Calpeda Type VM 90 GRD14 NM 40/16 AE Power (kW) 2.2/30 4 suction capasity 70 mᶟ/h ــــ Circulation Volume ـ 33 mᶟ/h Speed (rpm) 1450/1720 2900 * Caterpiller Haul off Type: RA 110/3E Measures 3100x1450x1900mm weight 1200Kg Pipe diameter 8-114mm Haul off speed 0.1-18(32.0)m/min Haul off force 6500 (3500)N No. of caterpillars 3 Caterpillar contact length 1050mm Drive Single drive with AC Servodrive Power 2.88kW Pneumatic 6Bar * Profile Saw APS 3/U-VDE 220V Saw Blade diameter 400mm Extrusion Speed Aprox. 7m/min Clamping force (6bar) 2x67daN Saw motor 2.2kW Speed of saw motor 2800/3360rpm cutting speed 58/70 m/sec cycle time with 3.22m/min 2.5sec compressed are consumtion 0.011Nmᶟ chip suction motor 0.55kW suction capacity 780 mᶟ/h measurments 1600x1565x2180 mm * Winding machine type: ML 5-2700 double Height 3500mm width 2700mm length 3150mm consumed power 2x4.5kW Max. Air pressure 6Bar max speed 20-63 rpm * Tilting table Type KR 250/6m pneumatically operated with time relay adjustment to extrusion height and pipe diametermechanical LxWxH 6100x1200x1200mm Weight approx. 500kg

Twin Screw Extruder for PVC Manufacturer: THEYSOHN Model: TTM 138 Year of construction: 2008 Screw Diameter: 138mm Effective Screw Length: 32 D Rotation: Counter Rotating Output: 1.350 Kg/h. Pipe Range: 250-800mm Type of Barrel heating: Heater Bands Number of Heating Zones: 5 Total Heating power for Barrel: 104 kW New Gear, New Barrel & Screw in 2014.
