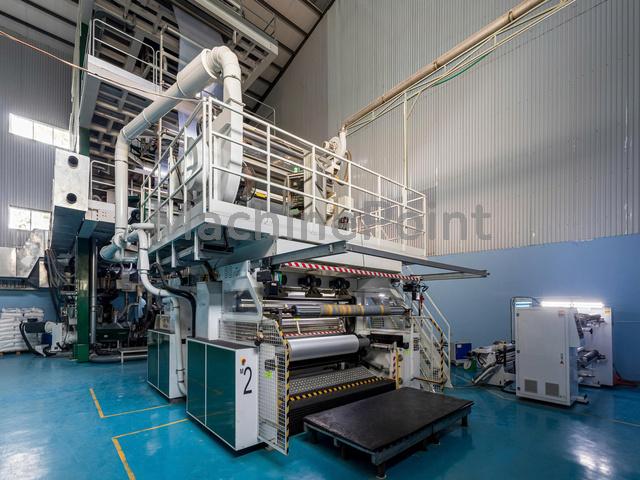

MACCHI COEX FLEX® of 2020 used

Other Specifications:

Coextrusion Group COEX FLEX® 3-layer extrusion group:
Extruder A 80/30
Extruder B 120/30
Extruder C 80/30
TE504 die Ø400/600 with JET8 IBC and Siemens AIR
Die diameter 500 mm, die gap 2.4 mm
Additional interchangeable chrome-plated die pin Ø420/550 for 500 mm die
Gravimetric Package- N.R 3 Blender with 4 ingredients- Max 900kg/h- PLASTCONTROL
Karat3 COM3 triple-flow air ring with integrated automatic profile control, 60 segments, Ø400/600 with 30 kW blower
Air cooling system BRA+90 & BRA+55 for air ring and IBC, 138,000 kcal/h, 800/1000 kg/h
Easy Control Plus supervision system for mono-3-5 layers with stand-alone monitor rack and automatic profile control
Primary modular bubble cage Radial 2350, 8/5, height adjustment, layflat range 650–2360 mm
Non-contact capacitive online thickness measurement AIR-CC head with slewing-ring bearing, layflat range 1230–3200 mm
Secondary modular bubble cage FM2350, 8/2, fixed, layflat range 520–2380 mm
Horizontal oscillating 360° take-off unit ST 265R, layflat 2400 mm
Banana spreader roller and rubber grooved spiral spreader roller, layflat 2400 mm
E+L automatic edge guide system, layflat 2400 mm
ME.RO 2-sided corona treater for external sides of tubular film, layflat 2400 mm

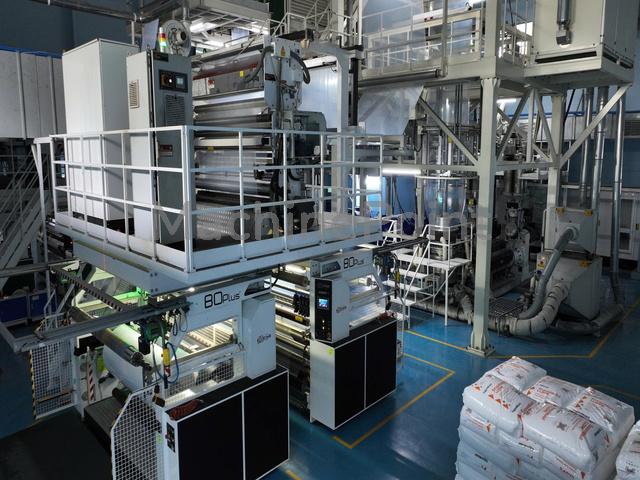

Double-station automatic BO PLUS winder, layflat 2400 mm
6 additional longitudinal slitting knives
2 active antistatic bars, layflat 2400 mm
5 steel pneumatic winding shafts Ø76 mm
5 aluminium pneumatic winding shafts Ø152 mm
Additional cylinders for film cooling type “S” with thermoregulation unit
6 aluminium idler rollers Ø150 mm for blow film tower
Carbon fiber cylinders and idle rollers for bubble collapsing panels
Additional PC with pre-installed software for line 140049

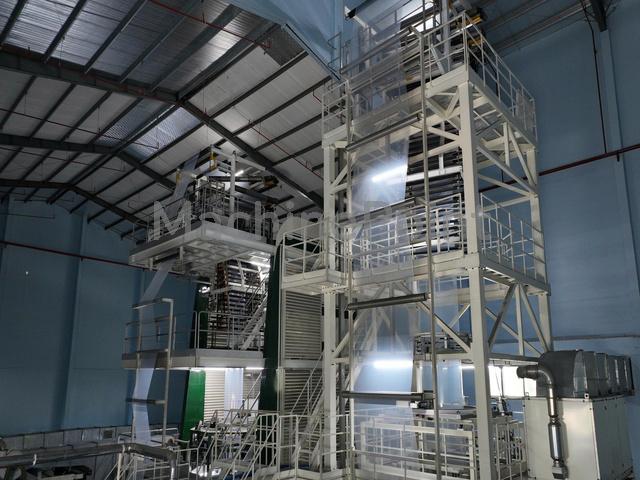

Including tower
