MACCHI COEX FLEX 5 of 2013 used

Other Specifications:

Extruders:

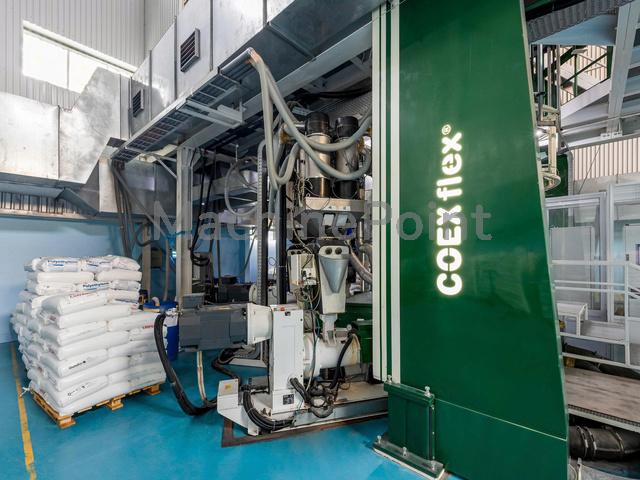

5 × PLASTEX 65/30D extruders, 86 kW AC motor, direct drive, Siemens water-cooled
5 × Ø65 plate screen changers

Die & IBC:

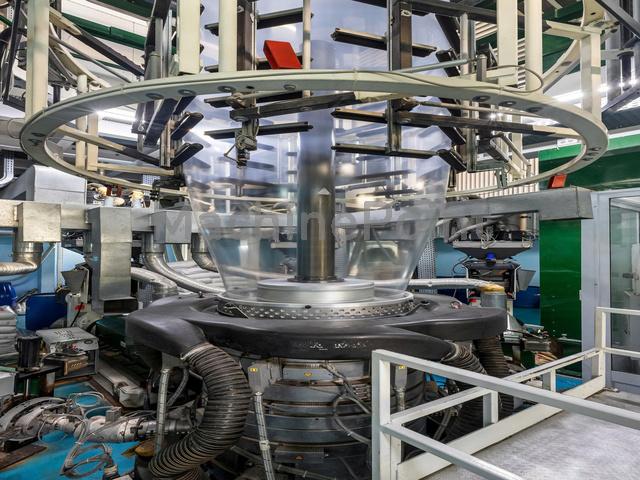

Stationary 5-layer co-extrusion die TE553 with IBC, range 350–550 mm
JET 7 fan and IBC control system
Kundig bubble diameter control system with scanner
CR MAX4 carbon ring double-flow inserts with 500 blower, 18 kW drive

Bubble Cooling & Take-Off:
GS 2350 8/2 and GSRC 2350/8-5 non-marking bubble guides
ST 265R 2400 oscillating take-off unit, 360°
Motorized sidefold system, depth 500+500 mm
Tower-mounted secondary nip assembly, width 2400 mm
Additional film cooling cylinders with thermoregulation unit

Winding:

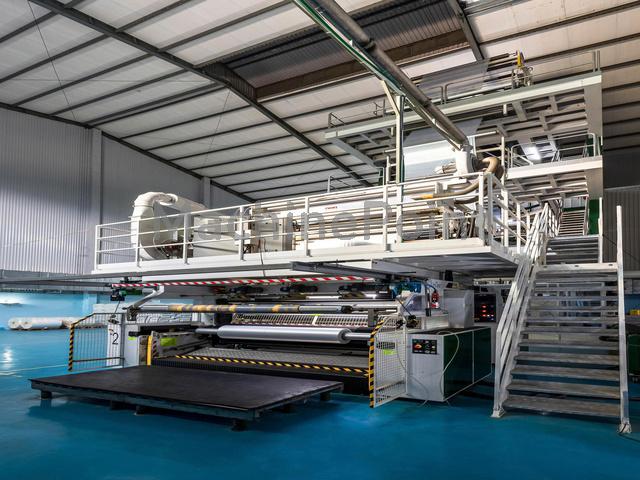

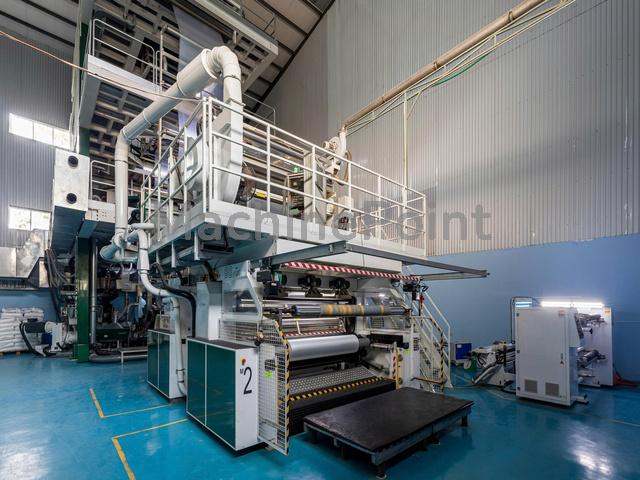

Double automatic BO PLUS/D 2400 winder, 2 stations
Reverse winding system for both stations
Motorized transversal and longitudinal oscillation system for longitudinal knives
4 pneumatic winding shafts Ø76 mm
4 pneumatic winding shafts Ø152 mm
E+L automatic edge guide system, 2400 mm

Dosing & Control:
5 × GRADO 4-component batch gravimetric dosing systems
Centralized granule intake system with up to 12 intake hoppers
Easy Control Plus supervision system for COEX 5-layer line
Corona & Cooling:
MERO corona treater station 2400 with generator
Double air conditioning system for ring and IBC, ABF DUE 55/20
Air cooling water tower, OFC KIT 160

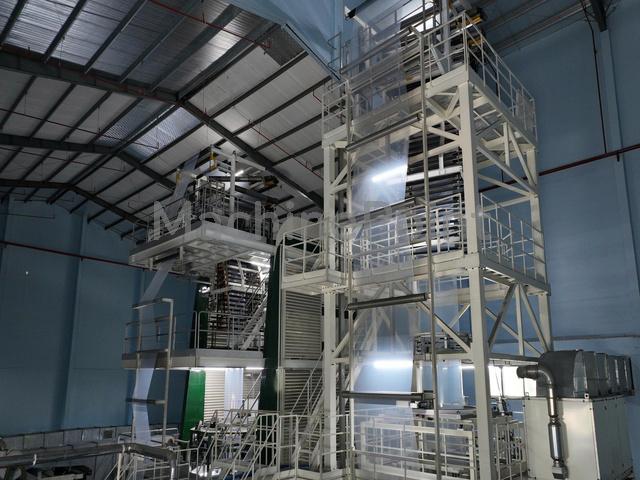

Including tower
