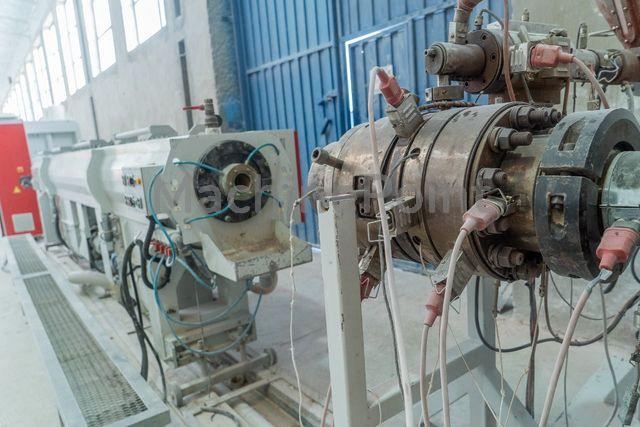

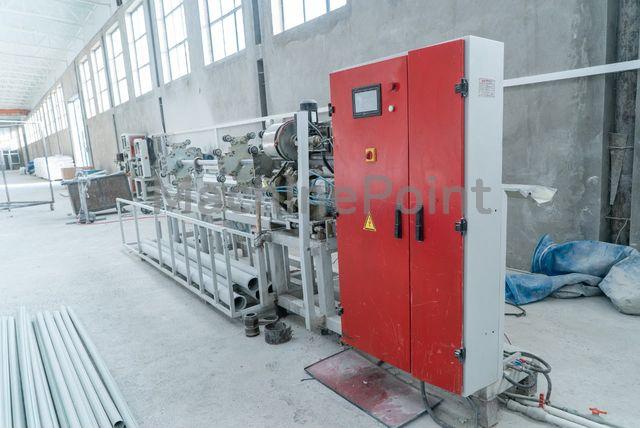

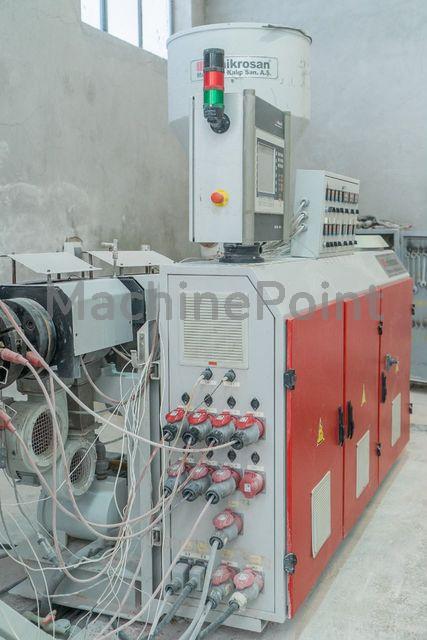

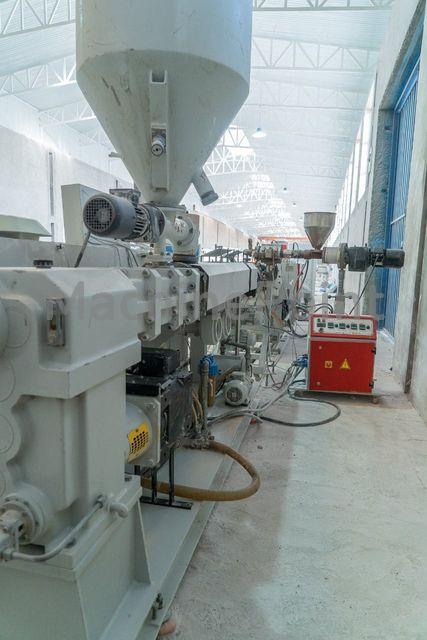

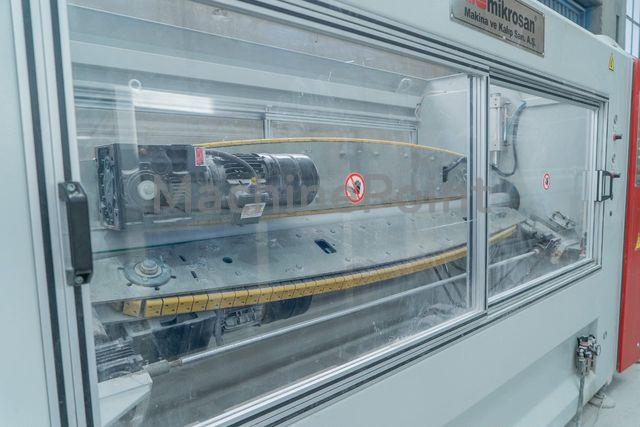

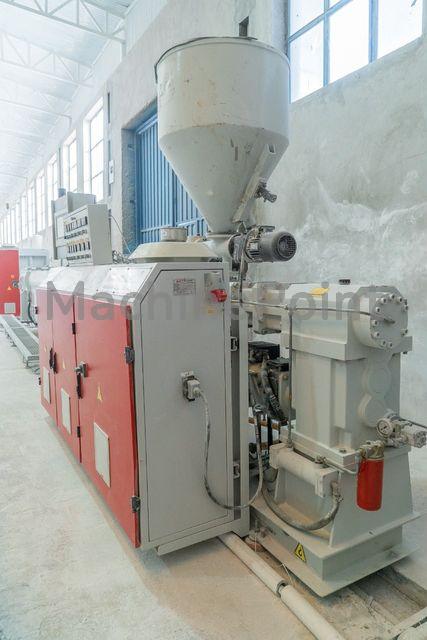

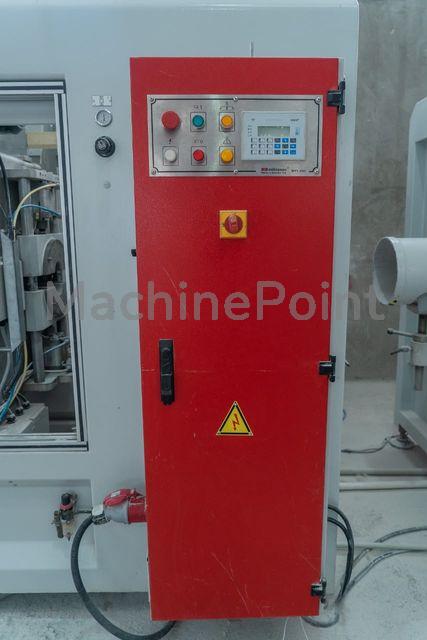

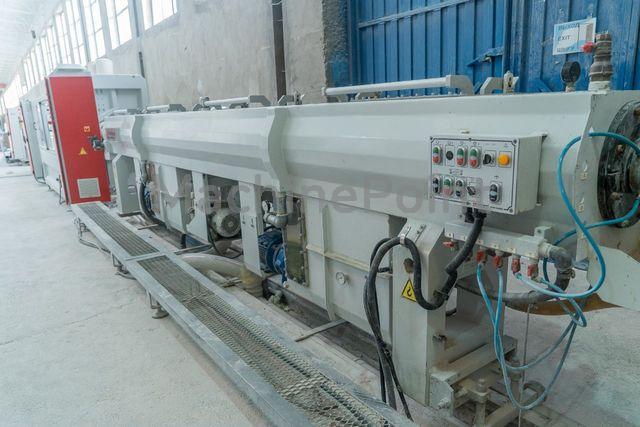

Used MIKROSAN MCV 68 / 25D of 2013 for sale

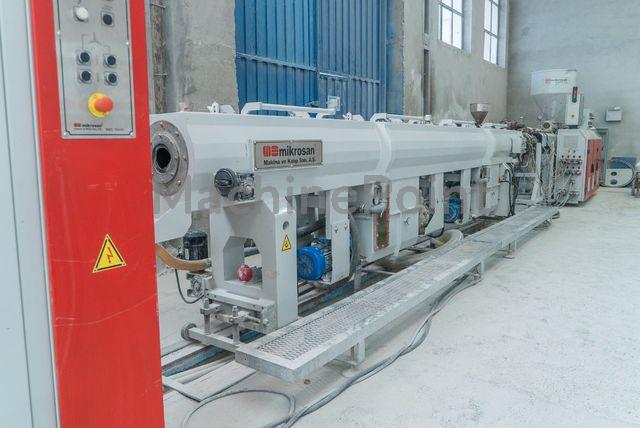

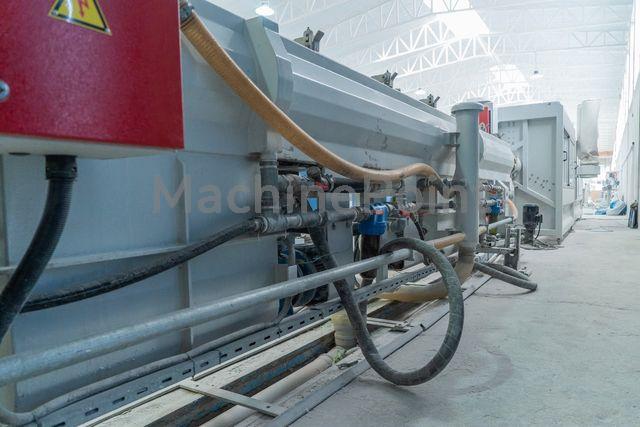

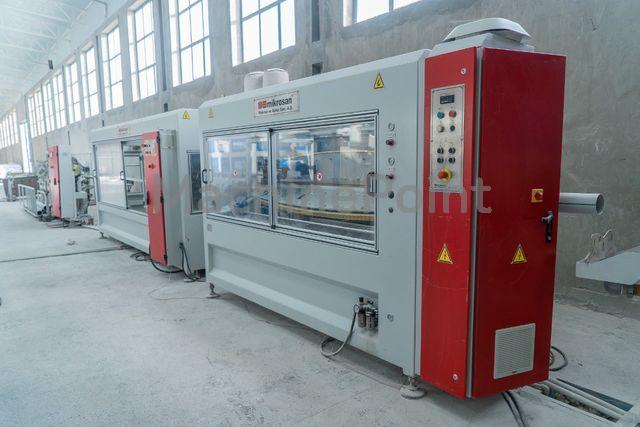

NEVER USED LINE FOR PVC PIPE/PROFILE PRODUCTION Main extruder: Twin Screw Extruder MIKROSAN MCV 68 / 25D (2017) Co-Extruder: Twin Screw Extruder MIKROSAN MRC 44 / 55 (2017) Calibration Tank MIKROSAN MKMN 6000 (2017) Haul Off MPC 300 / 1200 & SAW MTA 300 (2017) Titling table MDPA 6000 (2017) Auxiliary equipment: dosing unit for masterbatch vacuum feeder 200-300 kg/hour (2 pcs) heater set for MCV 68 /25 D heater set for MRC 44 / 55 set of pipe tracks (2 pcs) additional pump for calibration table chiller (110 kW) compressor pumping station external electrical panel PVC pipe and rain gutter tooling included for an additional price (ask for the offer): pipe diameter: 80 mm pipe diameter: 100 mm rain gutter diameter: 110 mm rain gutter diameter: 130 mm 3 m cooling tank with vacuum pump (1 pc) 2 m cooling tank with accessories (1 pc) Adapter (1 pc) Photos 1-37: condition at the time of the installation of the line in 2018. Photos 38-80: actual condition of the line. The line is dismantled and stored in a warmed store.

Materials: PP-r, PEHD,PELD Tools: never used D 20 mm D 25 mm D 32 mm D 40 mm D 50 mm D 63 mm

Complete line for PVC laminated profiles Manufacturer: MIKROSAN year 2013 Twin screw extruder MCV 90/26D 110kW Calibration table MKMT 12000 40kW Haul OFF MPCK 200/2400 10kW Cutting Unit MTA 200 10kW

Extruder dimensions Length 4750 mm Height 2250 mm Extrusion height 1200 CO extruder MTV 25/25D 5kg/h Heating power 45,37 Kw - 380 V Tooling 125, 160, 200, 250, 400 mm Vacuum bath MVBH 400/6000 Diameter range: 75- 400 mm Length: 6,440 mm Height: 1,600 mm Weight: 3,200 kg Water bath MVBH 400/6000 Diameter range: 75- 400 mm Length: 6,200 mm Height: 1,600 mm Weight: 2,700 kg Haul off unit MBC 400 / 6K Height 2.300 mm Width 1.970 mm Length 3.600 mm Weight 3.300 Kg Contact length 1.500 mm Hauling speed 0,03 - 8,6 m/ min Saw MTT400 Ø110 - 400 Max thickness 40 MM Reception table MDBM 6000 Length: 6,150 mm Height: 1,645 mm Diameter Ø 400

PROFILE LINE WITH CAPACITY OF 80 kg / h designed for 500 bar pressure and transparent tin stabilized PVC MCV 55 / 20D TWIN SCREW EXTRUDER ( Main Extruder) Head Pressure Sensor and Display Melt Heat Sensor and Display PLC Computerized Control Unit MCV 55 / 20D TWIN SCREW CO- EXTRUDER( on the Special Chassis) Head Pressure Sensor and Display Melt Heat Sensor and Display DETAILED DESCRIPTION: MCV 55/20D TWIN SCREW EXTRUDER MAIN EXTRUDER Extrusion Capacity : 65 Kg / Hour Extrusion Lenght 2.065 mm Extrusion Widht 1.000 mm Extrusion Height ( Without hopper) 2.150 mm Working Axis .......................................... : 1.060 mm Inlet ire terminal of power resource………………………… :3*25 + 16 mm² Type of temperature control………………………………. :B & R Screw Screw Diameter……………………………………………………… Ø 55 mm Screw Length……………………………….………………………: 20D Continious back pressure : 450 Nm Maximum back pressure : 500 Nm Rotation speed r/min……………………………………… : 5 - 35 rpm Barrel Barrel type……………………………..………………………… :55 / 20D Cooling medium………………………………….. : Air Fans. Heating method………………………………………… : Ceramic Resistance Heating Control Zones - Barrel , 4 pieces Heating Control Zones - Adapter , 1 piece Heating Control Zones - Mould, 9 pieces Heating power……………………………………... :11 kW -400 V Temperature range……………………………… : 0 - 350 °C Cooling zones……………………………………. : 3 Pieces Adapter……………………………...……………… : 0,75 kW - 220 Volt MCV 55/20D TWIN SCREW CO-EXTRUDER Same characteristics as the main extruder
