Used TMCI PADOVAN RTT1 of 2008 for sale
Bag filling machine TMCI PADOVAN, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used TMCI PADOVAN RTT1
Ref.: 300050506
Year: 2008
Brand: TMCI PADOVAN
Ask for machine price Want to sell your machine?
Technical Specifications:
- Output: 12 U/h
- Volume (Max): 215000 ml
- Volume (Min): 200000 ml
Other Specifications:

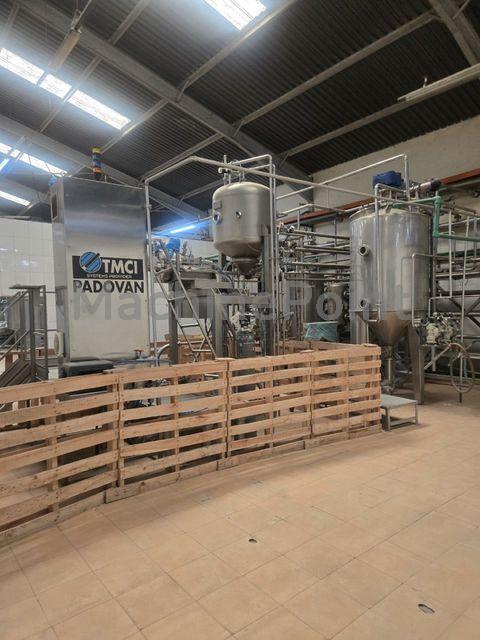

Complete TMCI Padovan Sterilizer and aseptic bag filler RTT1
Cnstruction year 2008
It has been used for sterilizing and packing aseptic mango and passion fruit puree in aseptic bags 215kg (bag in drum).
Capacity 10-12 Aseptic bags of 200l capacity per hour.

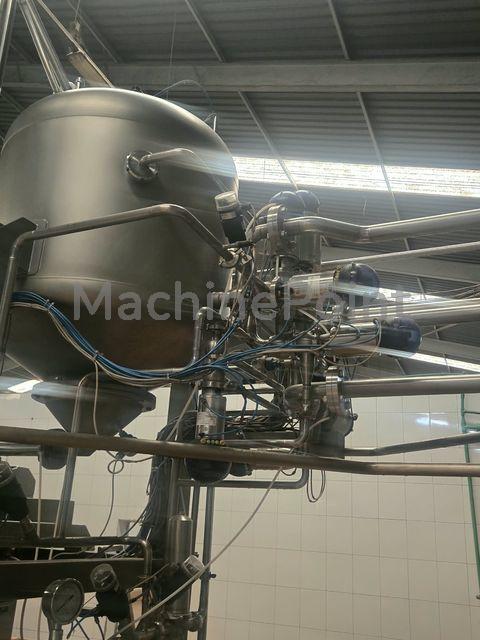

The plant is complete integrated sterilizer from product tank receiving to pumping to 4 stage sterilizing/ cooling (heating-holding-first cooling tower- final cooling chiller). to sterile aseptic tank to aseptic filling.
Main equipment

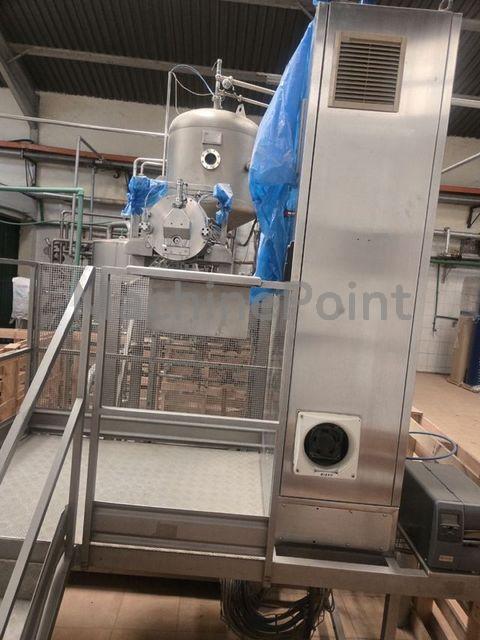

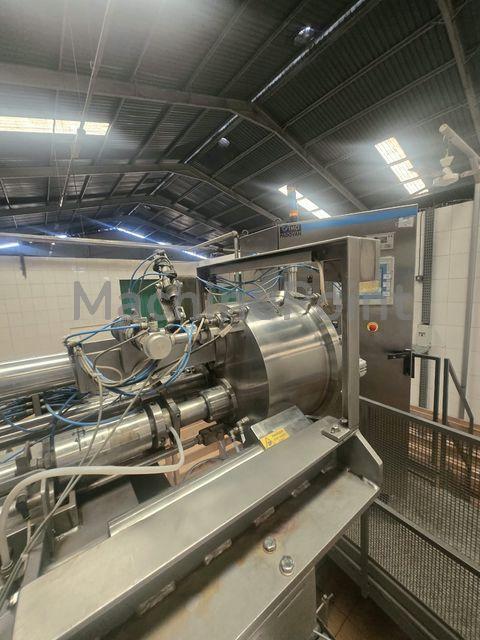

Aseptic Chamber

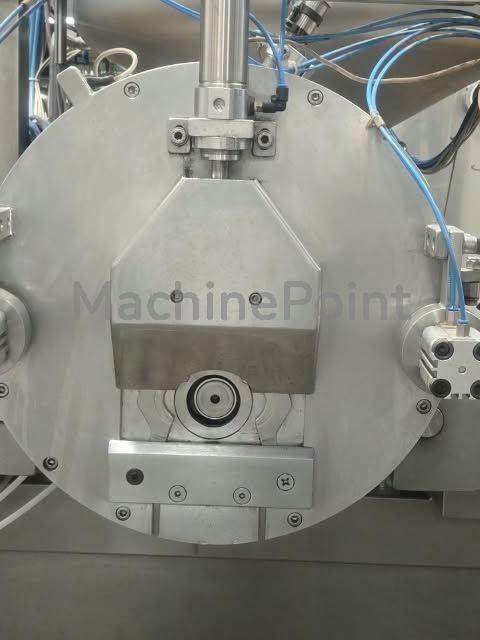

Cap Handlling System
Bag Handlich System application of 200 L bags in vertical position

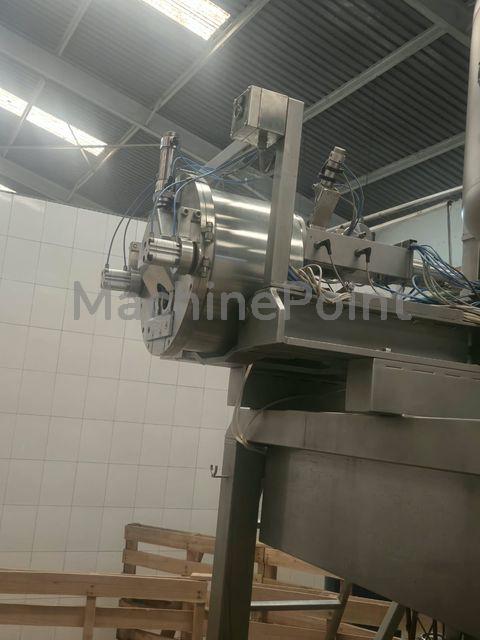

Filling station by direct weight check, special cross-way aseptic valve
Posibility of filling sample bags
Drum Handling
Control and Automation systems
Supporting structure

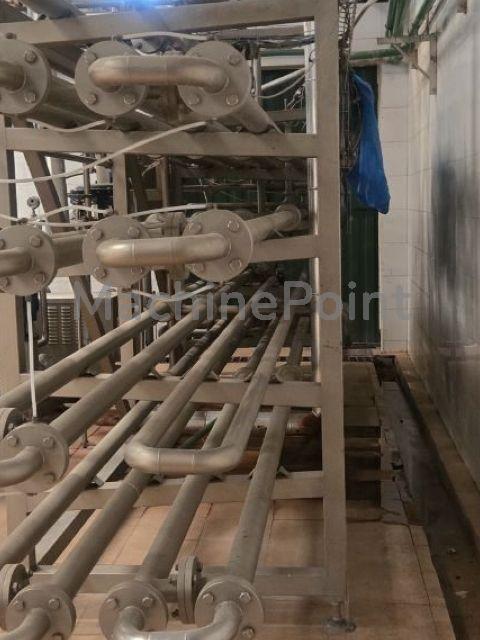

Tubular heat exchanges
Heating assembly includes a water tak (closed circiut) steam injection system and circulation pump

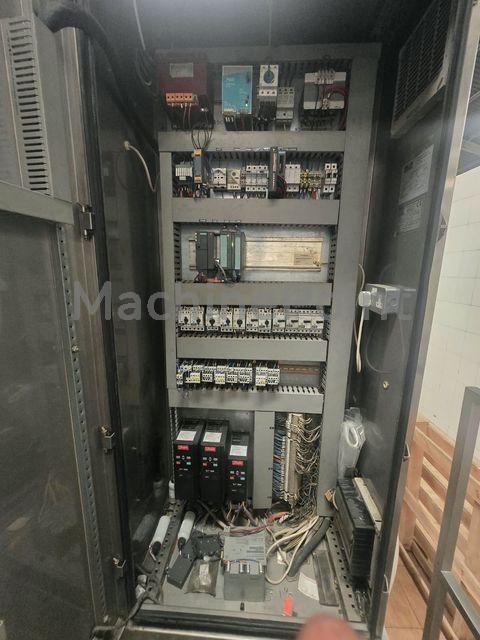

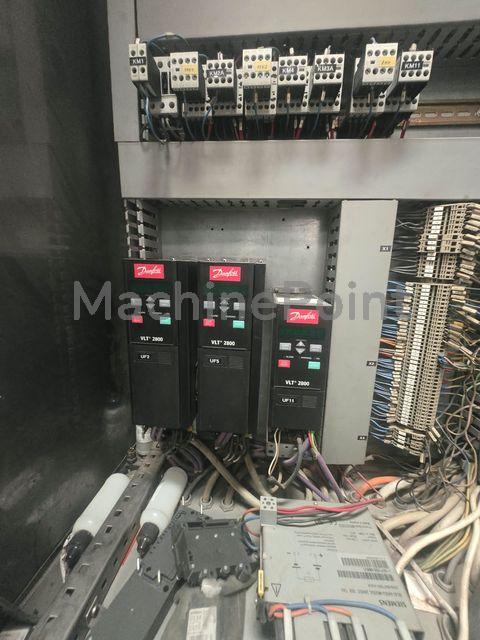

Electricall Control Panel

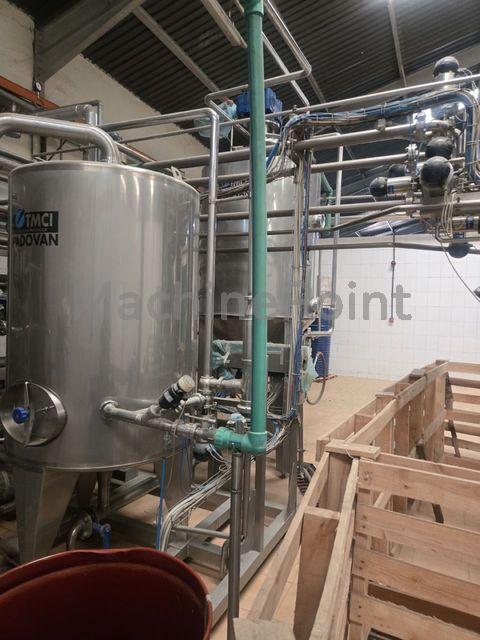

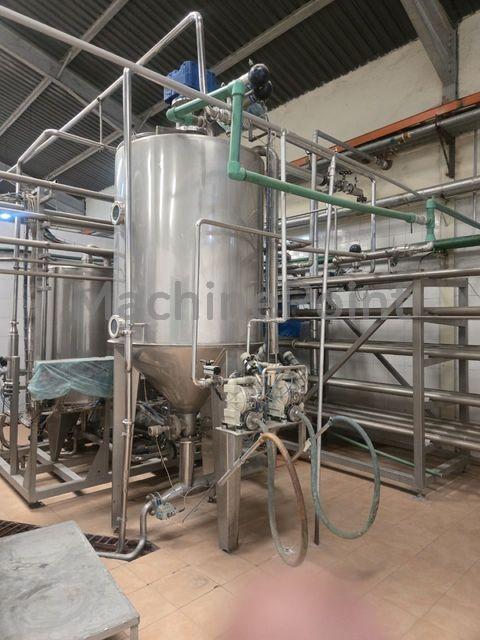

Product Feeding Tank
CIP feeding tank for cleaning solutions
Pumps
Working hours are not on the machine, but it is used seasonally for around 90-100 days per year only each year since 2008.
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Voltage: 10 Kw
