Used THIMONNIER SF 102 of 2020 for sale

Aseptic bag filling machine THIMONNIER Model: THP 7300 Manufacture year: 2012 The scope of supply includes the fiiller and two tanks for washing and peroxide treatment. Product: milk, fruit juices, uht cream. Bag volume : 100 - 1.000 ml Capacity 3000 - 7000 PPH Current machine was used for milk 900ml pouch. Power supply: 400 V Tri. + N - 50 Hz Compressed air supply: Input pressure = 7 - 9 bar - Effective pressure = 6 bar Output: Q = 2 Nm3/h Cooling water supply: Inlet pressure = 2 bar - Q = 300 litres/h Max. Temp. = 20°C - 30°C Steam pressure: P = 4 bars - Q1 = 0.5 kg/h during production - Q2 = 42 kg/h during SIP Hydrogen Peroxide: 0.5 L / 10,000 pouches for production - 1.4 litres for sterilisation Availability immidiately.

High frequency welding machine 4 stations rotating (turntable) Reconditioned 2012 by Thimonnier (year of construction 1991) Pneumatic drive Working pressure 6 bars Power : 16kVA Table 600x860mm 2 triodes changed in 2020

Thimonnier Ultra Clean bag filling machine Capacity: 5000 L/H Volume: 1 liter max - 225 ml minimum Shelf life: 22 days The machine was dismantled in September 2020. Nowadays stored in a warehouse, but in good condition

Bag filling machine Thimonnier Original Year: 1990. Capacity: 100 BPM (500ml pillow bag). Pouches of 200, 500 and 1 L. Overhauled in 2017 and in working condition, includes HDPE unwinder, HDPE washing system with hydrogen peroxide and UV sterilizer system. Machine has HEPA filter and is capable of self sterilizing with hidrogen peroxyde.

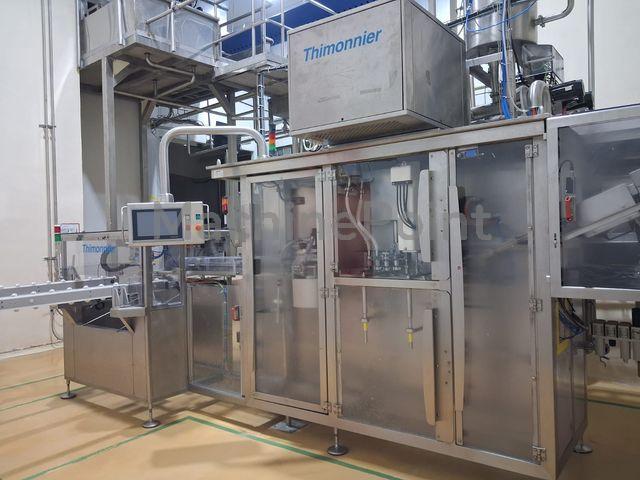

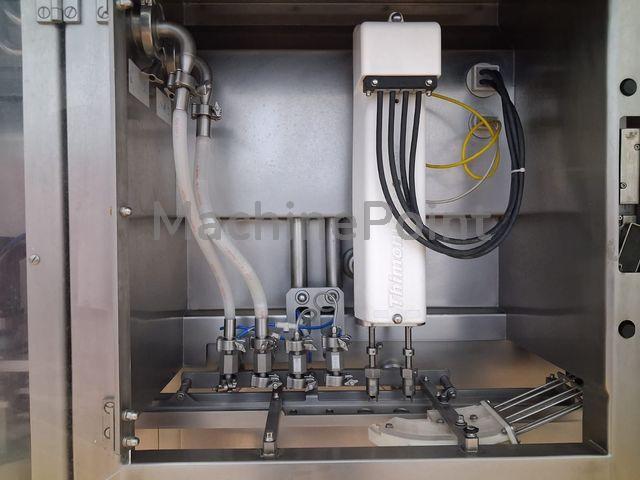

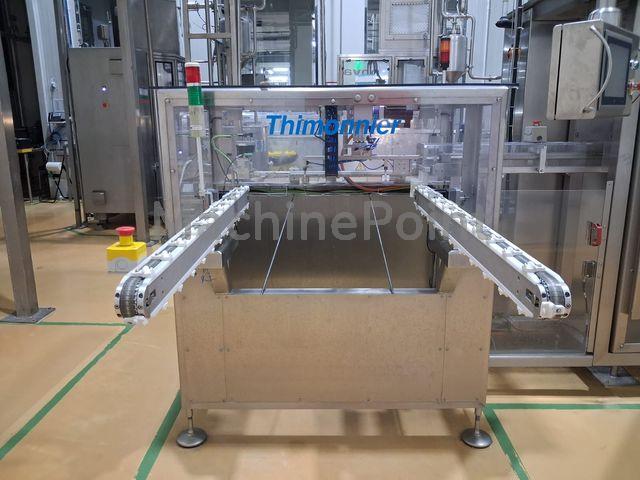

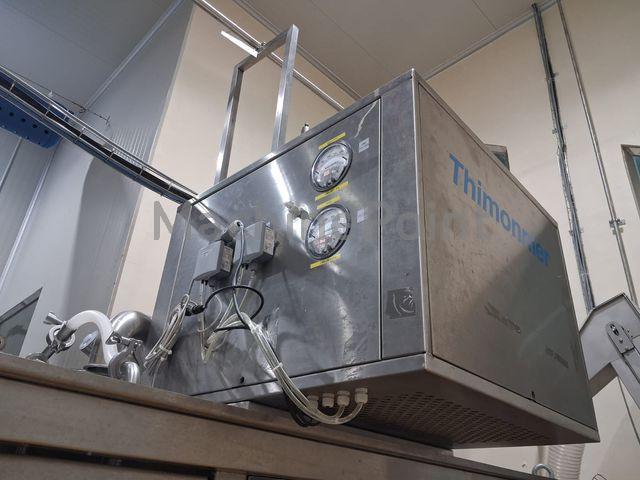

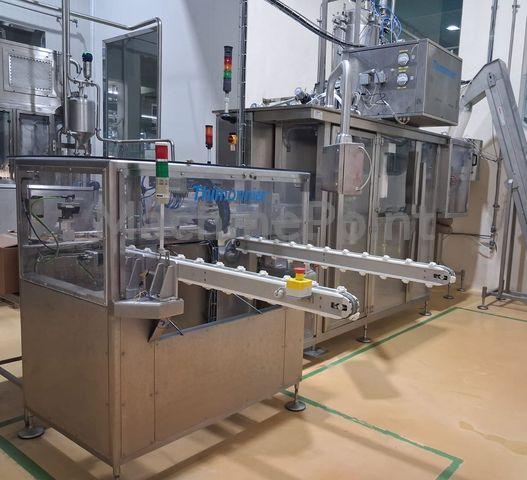

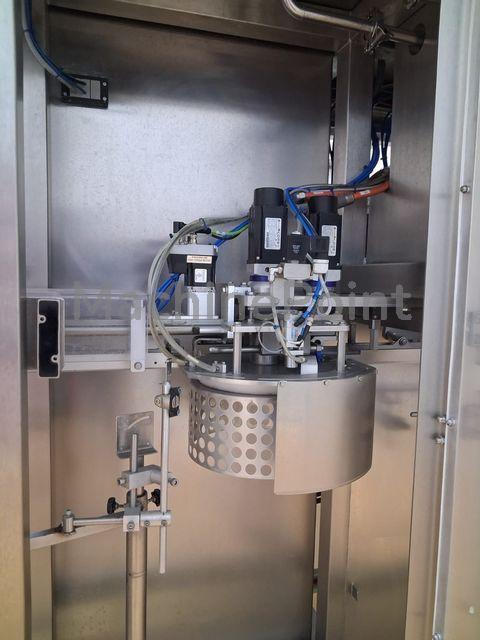

Complete hot fillling line Thimmonier SF 102 for pouches with capper, year 2018. 2 heads, 40 cycles/minutes, 4800 pouches/hour Hot filling (currently at 85ºC), for liquid and viscous products The machine can be configured for different pouch formats with the touch screen, from 50ml to 2l. Currently filling flavoured vitamin water in 250 & 330 ml pouches. Includes: - Thimonnier automatic pouch charger. - Thimonnier feed hopper for caps - Thimonnier synchronised printer - Thimonnier ejector belt. - Barriquand two-stage continuous pasteurizer 70kVA. - MTCII cooling tunnel. - MTCII preparation tank Prémix 500 litres with agitator. - MTCII mixing tank Product 10,000 litres with agitator. - MTCII sterile storage tank 10,000 litres. - Programming/management of production by PLC with touch screen. - Pouch sets on rails for adjustments and running tests. End of the line includes: - 1x variable speed motorized belt conveyor - width.300 x length.6000 x height.1100 - PU belt white - 220V x 0.25kW - 1x variable speed motorized belt conveyor - width.300 x length.3500 x height.800 - PU belt white - 220V x 0.25kW - 1x 0-6kg counting scale on roller table - light column - 300x230 stainless steel platform - Semi-automatic SIAT AKA TAPE S8/S - dimensions of the boxes: mini width 100 x length 150 x high.90; MAX width 500 x length.ꝏ x high.500 - production capacity up to 1200 cans/h - year 2007. - 1x free roller conveyor - width.300 x length.3800 x height.800 - bottom stop - 1x variable speed motorized roller conveyor - width.400 x length.2000 x height.800 - 220V x 0.55kW - 1x free roller conveyor - width.400 x length.3000 x height.800 - bottom stop - 1x pack of rubber adhesive tape 48mm x 990M transparent - 52 rolls Working hours: only 30. In production until January 2020. It can be offered in different lots: - Lot 1 = SF102 + automatic pouch charger + feed hopper for caps + synchronised printer + ejector belt. - Lot 2 = tanks (premixing tank + sterile tank 10m3 + mixing tank with agitator 10m3 + 3 transfer pumps + pipes associated). - Lot 3 = pasteurizer + cooling tunnel - Lot 4 = PLC (production management, recipe management) - Lot 5 = end of the line (conveyors, packer...)
