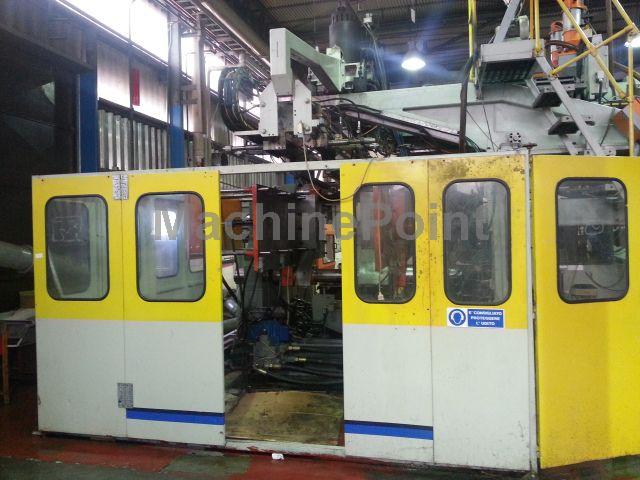

Estrusione soffiaggio con testa di accumulo: UNILOY M 50 D del 1994 usata

Scheda Tecnica: UNILOY M 50 D Usato

Rif.: 300030161

Marca: UNILOY

Anno: 1994

Altri Dati:

Resin PE/PP
Number of extruders 2
Extruder diameter (mm) 80 mm each
Extruder L/D ratio 24
Extruder motor hydraulic
Type of head accumulator
Number of parison 2
Center distance between parison (mm) 550
Accumulator head capacity - HDPE (lt) 4,2 (=3 kg HDPE) each
Parison thickness control included
Clamp force (kN) 450
Mould platens net dimensions (mm) 1300 x 800 h
Min/max daylight between platens (mm) 600 / 1300
Bottom blow-pin included
Automatic deflashing included
Voltage 380/3/50
Brand of control system Sofcontrol20

Notes
This machine is equipped with 2 indipendent 80mm extruders; each of them is connected to a 3kg accumulator head.
The machine is designed to produce 2 cavity containers; it was producing left&right air duct for the Automotive industry.

Machine can be fully overhaul (Price on request)
