FARRELL 4LMSD de 1990 d'occasion à vendre

Fiche technique: FARRELL 4LMSD d'occasion

Ref.: 300035272

Marque: FARRELL

Année: 1990

D'autres caractéristiques:

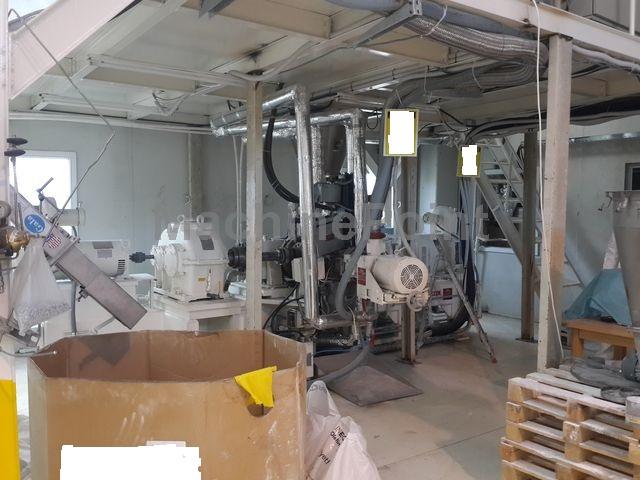

- Farrel size 4LMSD Continuous Mixer. Modified top feed, side discharge. Oil heated, over-under rotor design.

·Driven by a 150hp, 500 volt, 1750 rpm DC motor thru a Lufkin model S64CH gearbox, ratio 2.333 to 1, approximate 42" centerline height.

·Luwa Maag Vacorex model 90/90 gear pump, serial# 8311/63059/2, driven by a 40hp, 500 volt, 2500 rpm DC motor thru a Lufkin model D170CH gearbox, ratio 47.1 to 1.

·Farrel UP-150 hot oil heated die face pelletizer, 4 blade rotor, driven by a 7-1/2hp, 3/60/230/460 volt, 1765 rpm motor.

·Beringer model RSL-45DV 4-1/2” diameter screen changer with a 2hp hydraulic power pack,

·Gala spin dryer, model 8.2BF, serial# 902012, driven by a 5hp motor,

·Gala 60 GPM water system with 3hp pump, and heat exchanger, serial# 982439,

·Gala model 4X4-MDV valve, serial# 982439,

·Sterlco hot oil temperature control unit, model M2B9026-J1, 48,000 watts,

·K-Tron weigh belt feeder, approximate 1500 pounds per hour,

·K-Tron T35 feeder, approximate 150 pounds per hour,

·K-Tron S200 feeder, approximate 60 pounds per hour,

·220 KVA, (1) 75 KVA, (1) 63 KVA transformers, and (2) control panels.

·Platform

·Capacity : 1500 lb/hour

·Able to do filler compounding, reactive compounding, polymer mixing
