Rigeneratrice : PREALPINA 130/35D del 1995 usata

Scheda Tecnica: PREALPINA 130/35D Usato

Rif.: 300035919

Marca: PREALPINA

Anno: 1995

Altri Dati:

The line is from 1995
The main cabinet has been refurbished in 2003
The cabinet of the grinder has been refurbished in 2008
The main motor has been changed in 2015
Screw and Barrel changed in January 2007
Working hours : 97500

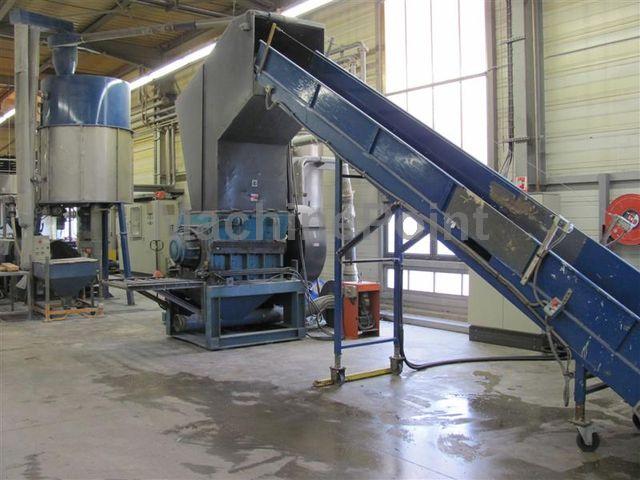

-Conveyor belt Lxl: 6000x1000
-Metal detector: Material clearance height 450mm
-Grinder 1000x700
3 rotating blades + 2 fixed blades of 1000mm
Open rotor diameter of 700mm
Soundproofed hopper with mechanical opening
Grinding chamber water cooled
Full control panel switches, ammeter and emergency stop push
-Junction tube between the fan and the silo
-Silo For film
-Dosage screw for film provided with a diameter of 150mm
-Vertical forced hopper
-Extruder T130 L / D35 with degassing
-Vacuum pump for degassing
-DC Motorisation
-Temperature control cabinet with 12 zones
-Pressure recording system
-Automatic screen changer diameter 230mm
-Storage Oleodynamic central
-Vertical hot diehead cutting
-Vibrating sieve for pellet, interchangeable screen 1200x400mm with 8mm diameter hole
-Transport fan for pellets
-Pneumatic shunt group for the screen changer, together with pneumatic valve 160mm diameter
-Junction tube for fan / silo
