Used ICMA SAN GIORGIO MC70-32D of 1995 Screw Diameter: 70 mm for sale
Twin-screw extruder for PE/PP compounds ICMA SAN GIORGIO, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used ICMA SAN GIORGIO MC70-32D
Ref.: 300046256
Year: 1995
Brand: ICMA SAN GIORGIO
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Screw Diameter: 70 mm
- Throughput: 200 kg/h
- Screw L/D Ratio: 32
- Type Of Rotation: Co-rotating
- Heating Power (Extruder): 45 kW
Other Specifications:
Materials processed: PP (with or without GF added), LLDPE, HDPE, ABS, PS, PMMA, PA6, PA66, POM, PC.
- Processed both compound and recycled (but NOT post consumer, but post industrial, so quite clean materials)
- Twin screw side feeder included
- Screen changer included, diameter: 91 mm
- Tank included
- Features 2 degassings.

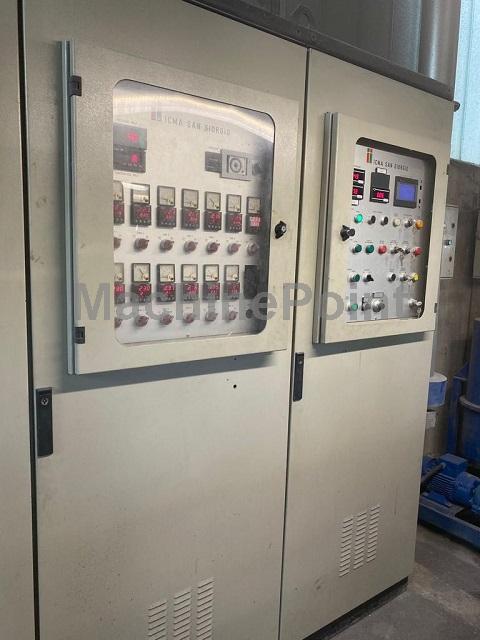

- Machinery purchased in 2016 and completely overhauled. Rebuilt the electrical panel, replaced the DC motor with an AC motor with inverter resulting in reduced consumption (motor power KW 54 HZ 84.5).
Available spare screws (price upon request)
Other Details:
Guarantee: Without guarantee
Current condition: Dismantled. Can't be seen in running condition
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 50 Hz
