Termoformatrici: DARCAN LX222 del 2011 usata

Scheda Tecnica: DARCAN LX222 Usato

Rif.: 300032547

Marca: DARCAN

Anno: 2011

Altri Dati:

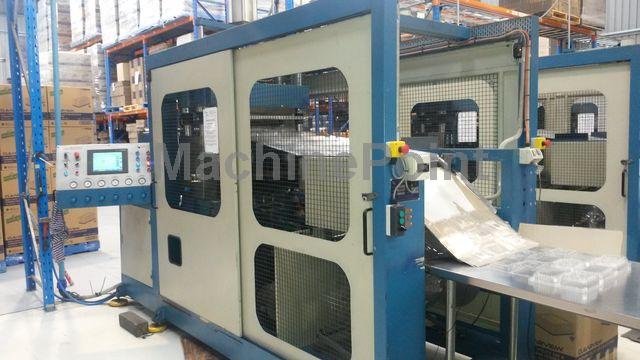

Contact heat machine from 2010, one station machine
Forming area is 580mm x 580mm
Depth of draw 100mm
Thickness material: seller processed 200 my through 600 my
Materials processed HIPS PVC BOPS and PET
Cycles: 4.5 to 6 second cycles in 250my PET. PVC runs quicker as does HIPS
Sheet width 610mm
Electric driving system
The forming and heating is Air and the cutting is air as well through a double 6 inch cylinder
Heating with 8 elements in a steel heat block which is also the cutting block
No vacuum pump
Weight 1,5 T
Voltage 440, Frequency 50 Hz
No spare parts or tools included
Strict maintenance schedule to ensure constant lubrication and running
The cylinders are replaced every 18 months using PET. In other materials they would last much longer. The cost for a cylinder rebuild is around 650 Euro

Ideal for open trays since it heats, forms and cuts in the one station. Typical would be biscuit trays or chocolate trays etc. Also clamshells have been manufactured on this machine mainly with a hinged lid and pips

There are two extra twin machines in the same location, both have been already decomissioned (one from 2011 and one from 2012)

Also included 2 tools (for clamshells and sandwich wedge)

This machine will be dismanlted in June 2017
