Used PLASMEC COMBIWOOD-HC/300/1000/FV/W-PP/PE of 2012 for sale

Combination mixers PLASMEC, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.


Data Sheet of Used PLASMEC COMBIWOOD-HC/300/1000/FV/W-PP/PE

Ref. : 300033671

Year: 2012

Brand: PLASMEC

Status: For sale

Delivery time: Immediate





Technical Specifications:

Mixing Capacity: 300 l

Cooling Capacity: 1000 l

Other Specifications:

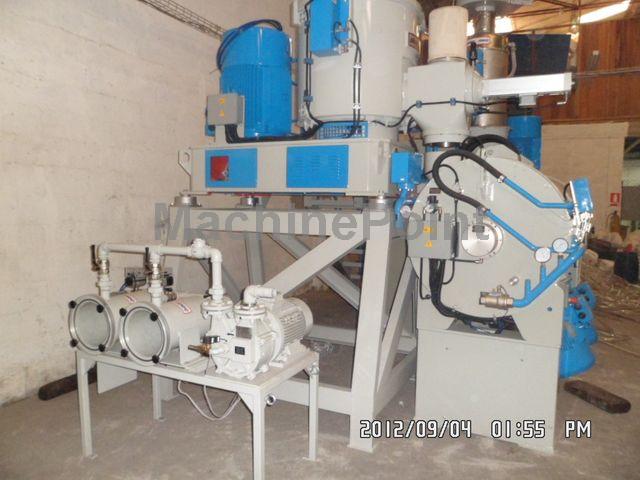

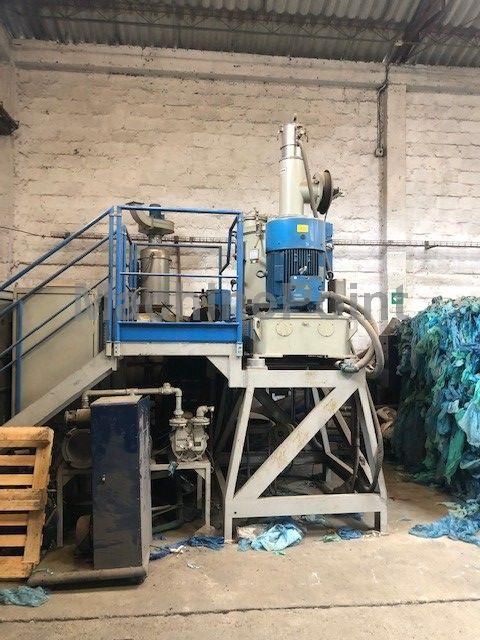

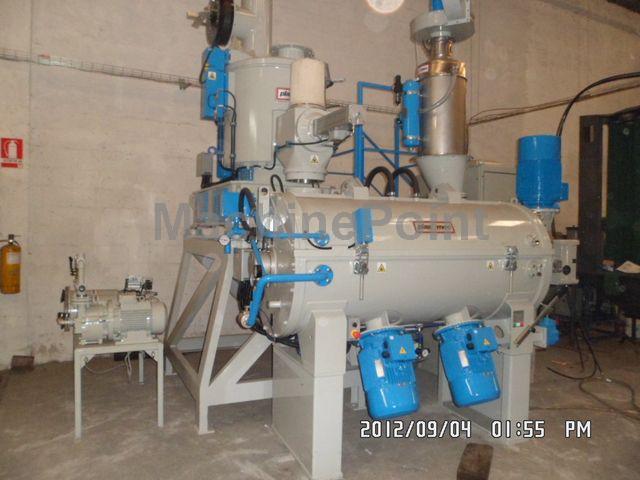

PLASMEC "COMBIWOOD-HC/300/1000/FV/W-PP/PE"

MIXER FOR WOOD PLASTIC COMPOSITES.

TURBOMIXER “TRM-300/FV/W”

¨ MIXING VESSEL TOTAL CAPACITY: 300 Liters
¨ MIXING VESSEL USEFUL CAPACITY: 255 Liters
¨ PARTS IN CONTACT WITH PRODUCT TO BE MIXED: AISI 304 STAINLESS STEEL
¨ DEGREE OF FINISHING INTERNAL SURFACES OF THE MIXING VESSEL: 300 EMERY
¨ MOTOR POWER ALTERNATING CURRENT (4/2 POLES): 75 kW
¨ TYPE OF MIXING TOOL : 4 STAGES -
¨ REVS OF MIXING TOOL: 400 / 800 r.p.m.
¨ PERIPHERAL SPEED OF MIXING TOOL: 16/32 mt/sec
¨ FEEDING PRESSURE OF COMPRESSED AIR: 6/7 BAR
¨ COMPRESSED AIR CONSUMPTION: 160 Nl / HOUR

HORIZONTAL COOLER “HEC-1000”
¨ TOTAL CAPACITY: 1000 Liters
¨ USEFUL CAPACITY: 600 Liters
¨ PARTS IN CONTACT WITH PRODUCT: AISI 304 STAINLESS STEEL
¨ FINISHING DEGREE OF INTERNAL SURFACES IN CONTACT WITH PRODUCT: 300 EMERY
¨ MAX. PRESSURE ADMITTED IN THE CIRCULATION SPACE OF COOLING WATER: 0,5 BAR
¨ COOLING WATER TEMPERATURE: 10 °C
¨ COOLING WATER MIN. FLOW RATE : 8 m3/hr
¨ COMPRESSED AIR FEEDING PRESSURE: 6/7 BAR
¨ COMPRESSED AIR CONSUMPTION: 29000 Nl / HOUR
¨ MOTOR POWER ALTERNATING CURRENT (4 POLES): 15 kW

*Only 200 working hours.

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown with material

Availability: Immediate
