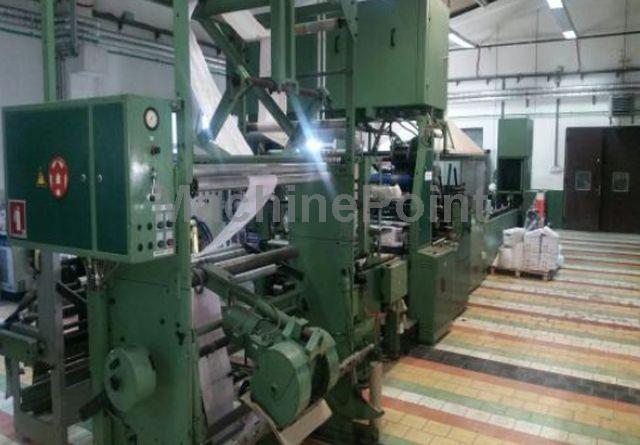

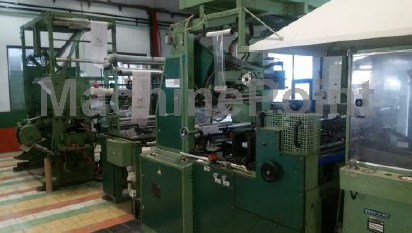

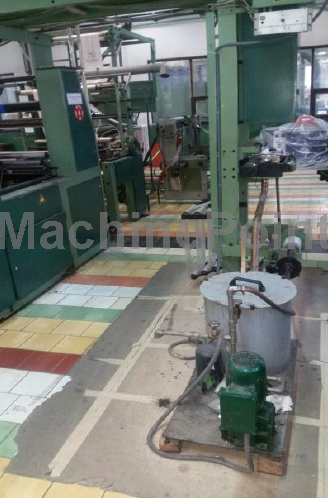

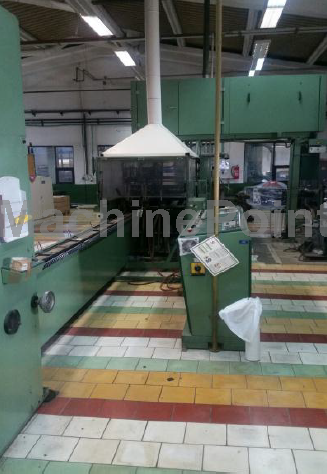

Used WINDMÖLLER & HÖLSCHER POLYREX 85 BV of 1985 for sale

1985 | Ref.: 300037537

Patch handle bag making machine WINDMÖLLER & HÖLSCHER, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.


Data Sheet of Used WINDMÖLLER & HÖLSCHER POLYREX 85 BV

Ref.: 300037537

Year: 1985

Brand: WINDMÖLLER & HÖLSCHER

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:


  • Welding Width: 850 mm
  • Bag Length (Max): 750 mm
  • Bag Length (Min): 250 mm
  • Cycles Per Minute: 120 U/min
  • Drive: Clutch & Brake

Other Specifications:


Material LDPE, HDPE, MDPE
Film thickness 0,02 – 0,10 mm
Glue for reinforcement DURO TAK J8510
Min. and max bag width 200 – 600 mm
Min. and max bag lengths 250 – 750 mm
Edge guide FIFE GP25
Photocell Datalogic TL10-011
Max reel width 1350 mm

Other Details:


Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate
