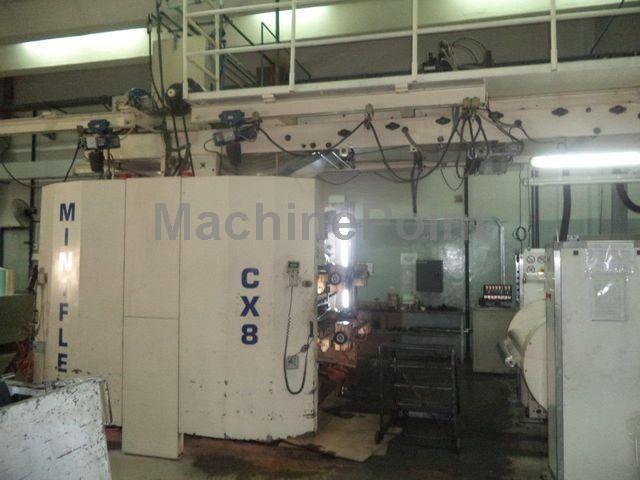

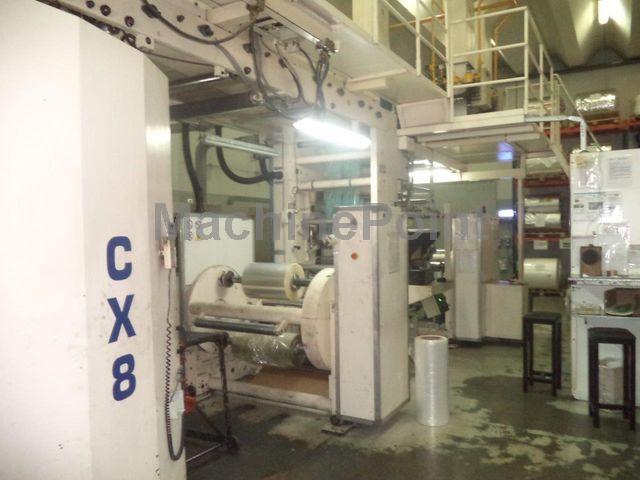

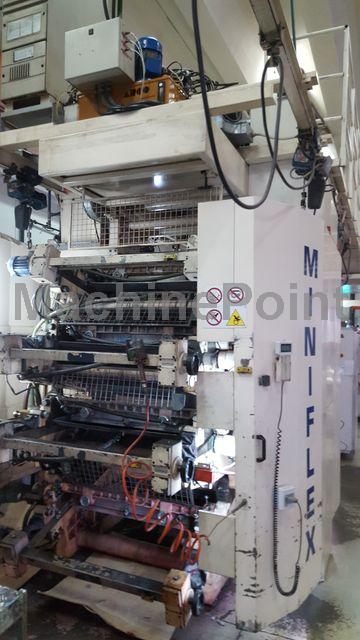

Used CARINT Miniflex CX 8, mod. 80 of 1999 for sale

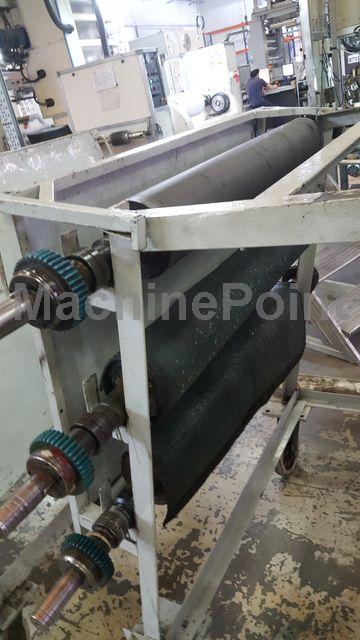

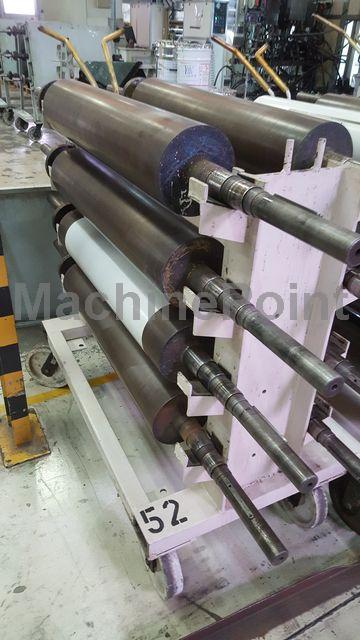

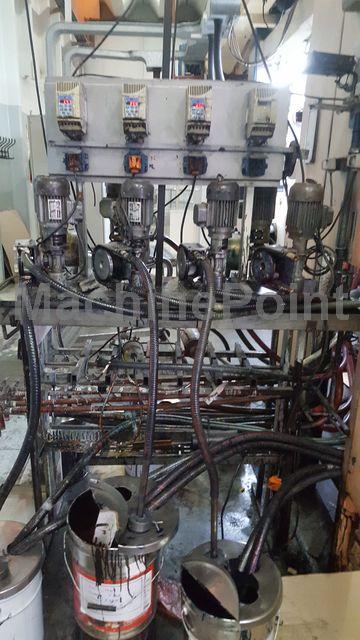

Min. width of film: 400mm Max. unwinder: 800mm Max. rewinder: 800mm Automatic winders 2 systems BST centering 8 chambered doctor blades 8 stainless steel ink trays 9 ink pumps Wagner New Telecamera BST 3CCD installed in year 2011 Thickness of material: LDPE (0,020mm - 0,150mm) HDPE (0,015mm-0,060mm) PP (0,020mm-0,050mm) PET / Paper Thickness of cliches: 1,14mm Anilox 320/4,8 x2 290/4,5 x4 200/4,5 x1 180/4,8 x1 140/7,1 x2 120/10,4 x3 110/12 x1 110/13 x1 80/14 x1 80/17 x1 290/4,5 x1 80/17 x1 180/4,8 x1 290/4,5 x1 Printing rollers 8x320mm 8x330mm 8x340mm 8x350mm 8x360mm 8x370mm 8x390mm 8x400mm 8x420mm 8x430mm 8x440mm 8x460mm 8X480mm 8x490mm* 8X500mm 8X515mm 8X525mm 8X540mm 8X560mm 8X570mm* 8X600mm

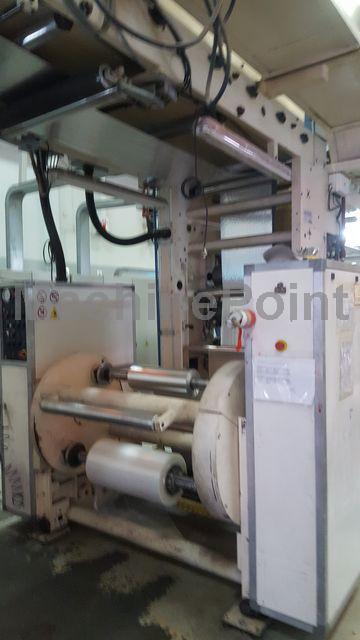

Mechanical speed: 300m/min Unwinder/rewinder automatic turret max. reel diameter:800mm Air shaft diameter : 3 inch, 76,2mm Control tension type: Taper Web guide before printing section and before rewinder 8 doctor blades 8 pneumatic ink pumps Viscosimeters available but it does not work Video scanner system for web inspection Manual length register Manual side register Anilox cylinders:7 (L/CM) 140 400 400 400 400 400 1 x 240 No. of Sleeves (x8) 400mm 430mm 440mm 460mm 490mm 510mm

Material: HDPE, MDPE, LDPE, PP, Paper Web width: 1150 mm Print width: 1100 mm Number of colours: 6 Drying system: Electrical Printing repeat max.: 800 mm Printing repeat min.: 285 mm Unwinder: 800 mm Rewinder: 800 mm, 4 reels maximum Core: 70-76 mm and 150 mm at the unwinder Other details: BST Genius Video Camera Web Guiding: BST before and after printing Web cleaning: SIMCO Ink pumps: 6 Doctor blades chambers 2x2 hoists Puricelli 250 daN Longitudinal and transverse motorized registers: +/- 0,15 mm Air compressor (new Boge C9-10 bar) included Working hours : 61605 List of ANILOX - ceramic 4 x 280 (2012 year) 3 x 100 1 x 80 2 x 140 2 x 160 List of Cylinders + Gears For 1,14 Thickness: Repeat: 285 mm. x 4 pcs. 300 mm. x 6 pcs. 430 mm. x 6 pcs. For 2,54 Thickness: Repeat: 360 mm. x 6 pcs. 380 mm. x 6 pcs. 400 mm. x 6 pcs. 420 mm. x 6 pcs. 460 mm. x 6 pcs. 480 mm. x 6 pcs. 800 mm. x 6 pcs.

Quick sleeve change Printing speed: 300 m/min Plate thickness: 1,14 mm + 1,70 mm + 2,54 mm + 2,84 mm unwind 800 mm rewind 800 mm Cores size: 76 mm I.D. 90 mm O.D. solvent based Remote controlled longitudinal registers. Remote controlled side registers. Printing deck foreseen for sleeves, on fixed mandrels, mounted aboard deck and/or conventional plate cylinders (with integral shafts) Sleeves and/or plate cylinders (with integral shafts) horizontal delayed release by step motors. Fully enclosed doctor blade system Auto deck positioning and remote micrometric adjustment (ball bearings screws) controlled by step motors with incremental encoders. Longitudinal pre-register system. Automatic hydraulic lock-down of slides and sliding blocks. 2 (two) control panels are supplied to control all printing stations. 4- Fan drying system with driven rollers. 2 (two) 210 mm O.D. chromium plated single-wall chill rolls, driven by A.C. motor. Infeed conditioning cylinder 305mm O.D. before the 1st printing station (heating unit excluded) ) Computerised Control type SIEMENS S7 - 300 TECKMAN ® - Press and data management System and Teleassistance Semi-automatic Turret Unwind type W-8000 Automatic Turret Unwind RID 80 (with 2 A.C. motorrs for the automatic tension control. Razor slitter complete with: 3 razor blades exhaust trimming unit bow roller Ladder and catwalk Lighting system on the printing group. 2 (two) Electrical hoists for plate cylinders lifting (max load 250 kg each). 4 (four) air expanding shafts 8 (eight) Pneumatic ink pumps complete with cover and tank. 2 (two) Tension indicating load cells 1 (one) standard set of 8 (eight) mandrels Ø 105,158 for sleeves.. 1 (one) standard set of 8 (eight) carbon fibre carriers by Rossini from repeat 465 mm to 560 mm external Ø 149,722 for mandrel of external Ø 105,158. 1 (one) additional set of 8 (eight) carbon fibre carriers by Rossini from repeat 565 mm to 670 mm external Ø 172,004 for mandrel of external Ø 105,158 Edge guide before printing FIFE KAMBEROLLER two sensors, electromechanical system, remote controlled. Edge guide after printing FIFE shifting rewind single sensor, ultrasonic system, manually controlled + photoelectric eye for printing read-out Video camera inspection system type BST PROSCAN

Max Speed 300 m/min Sleeves 6 x 410 6 x 630 6x 690 6x 720 6x 730 6x790 Double automatic rewinder Double manual unwinder Camera model Power Scope 3000 6 ink pumps 10 ink trays 6 anilox Work carried out in November 2017 Changed both pneumatic transducers for rewind and unwind dance rollers. Dismantle and clean all intercolour dryers, reset air inlet/outlet. Check brakes and controls via potentiometer. Polish CI drum. Check all colour decks for alignment. Spare Parts: new brake card and 2 x potentiometers.
