Technical Specifications:
Working Width: 1372 mm
Parent Roll Diameter: 1270 mm
Final Roll Diameter: 305 mm
Other Specifications:

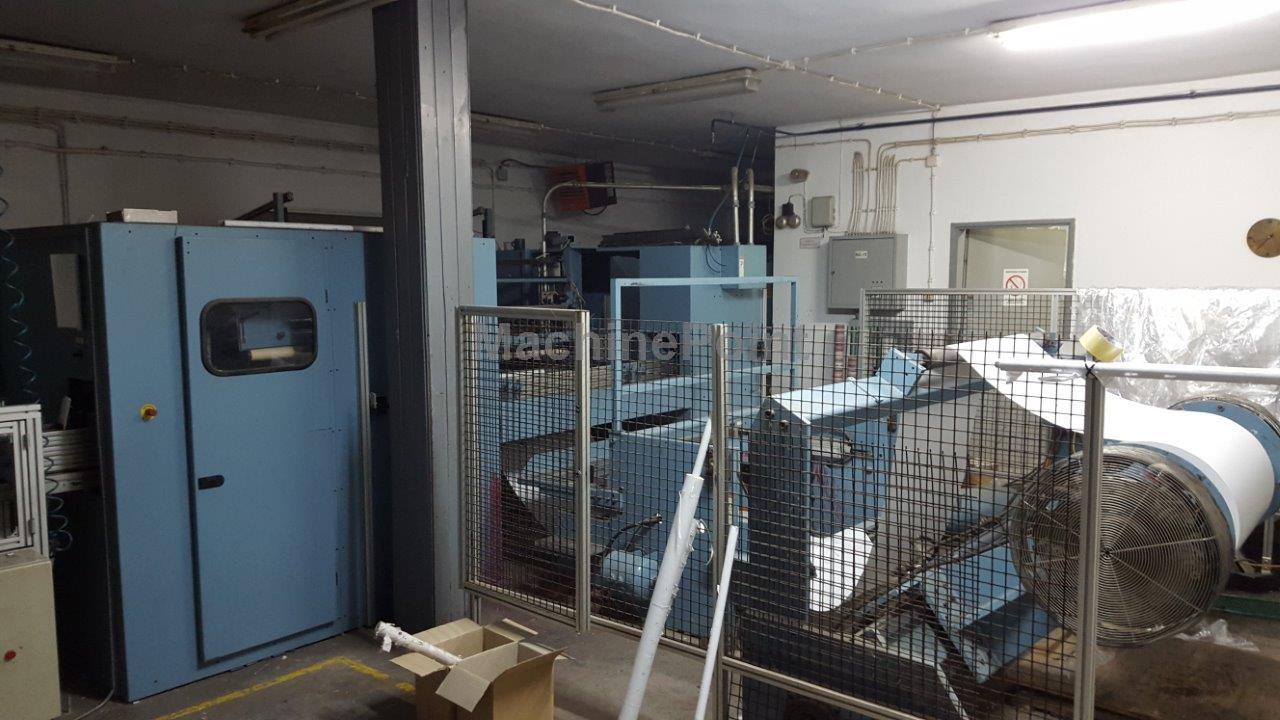

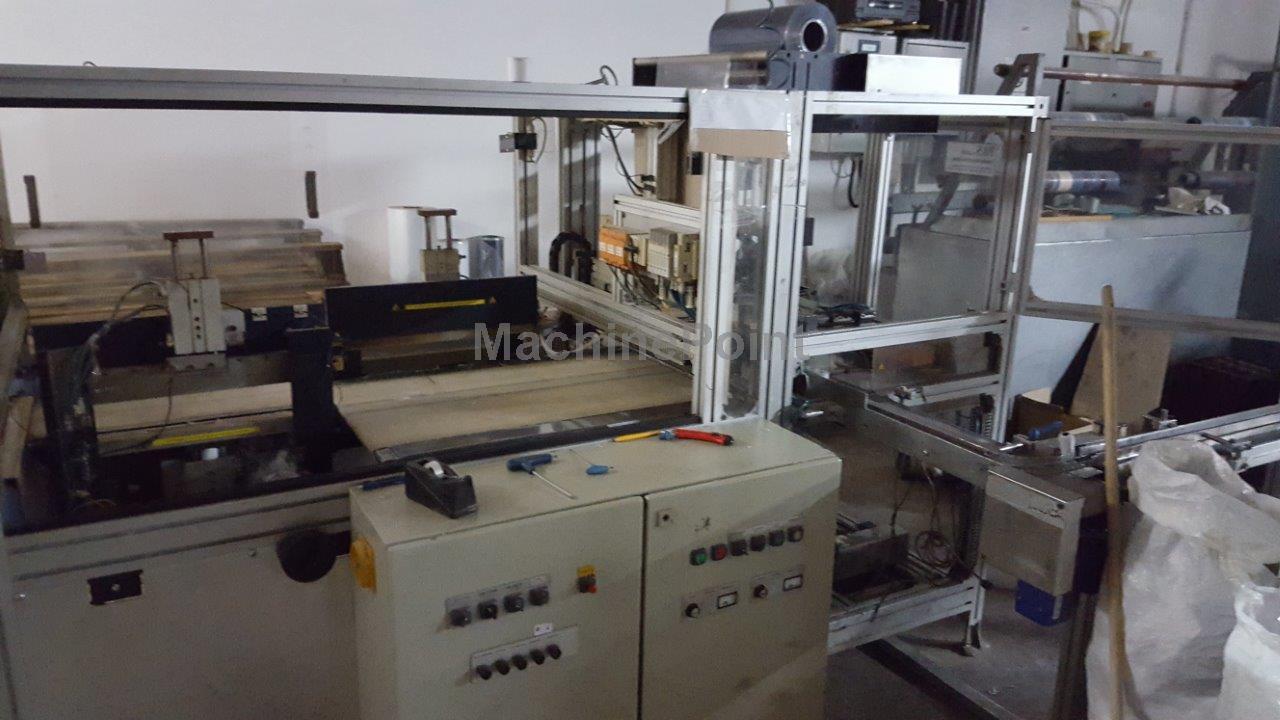

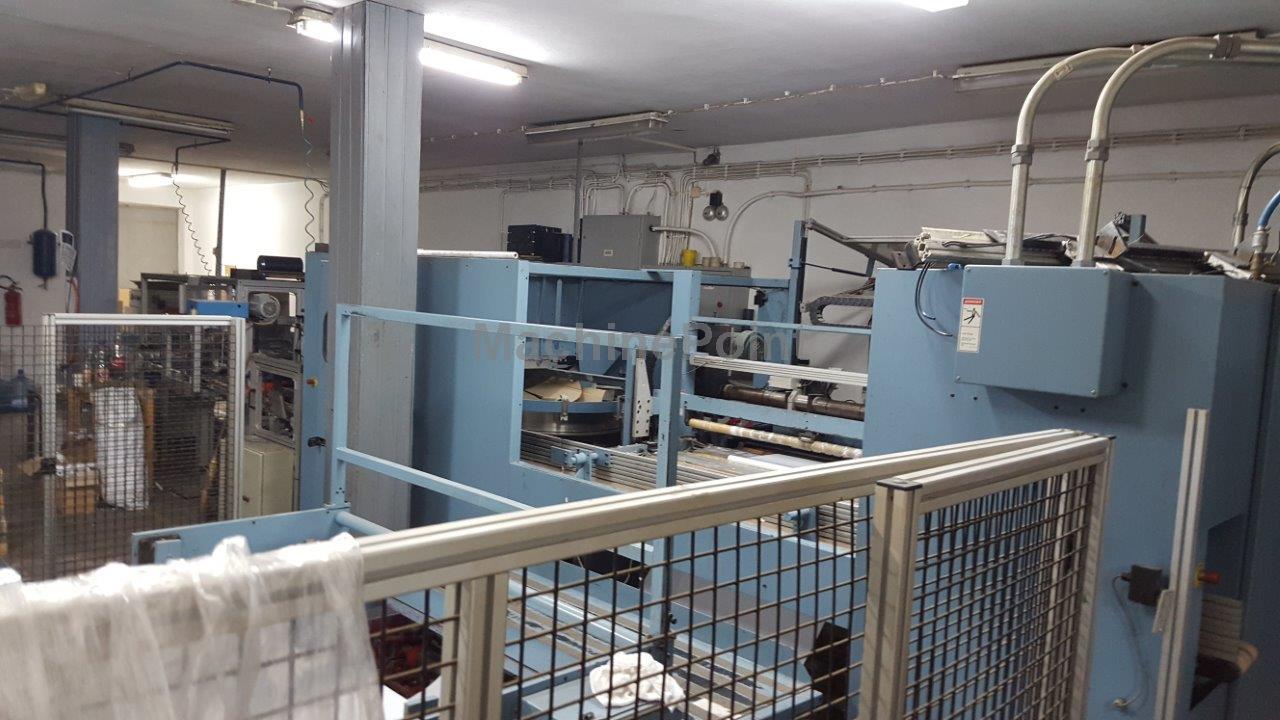

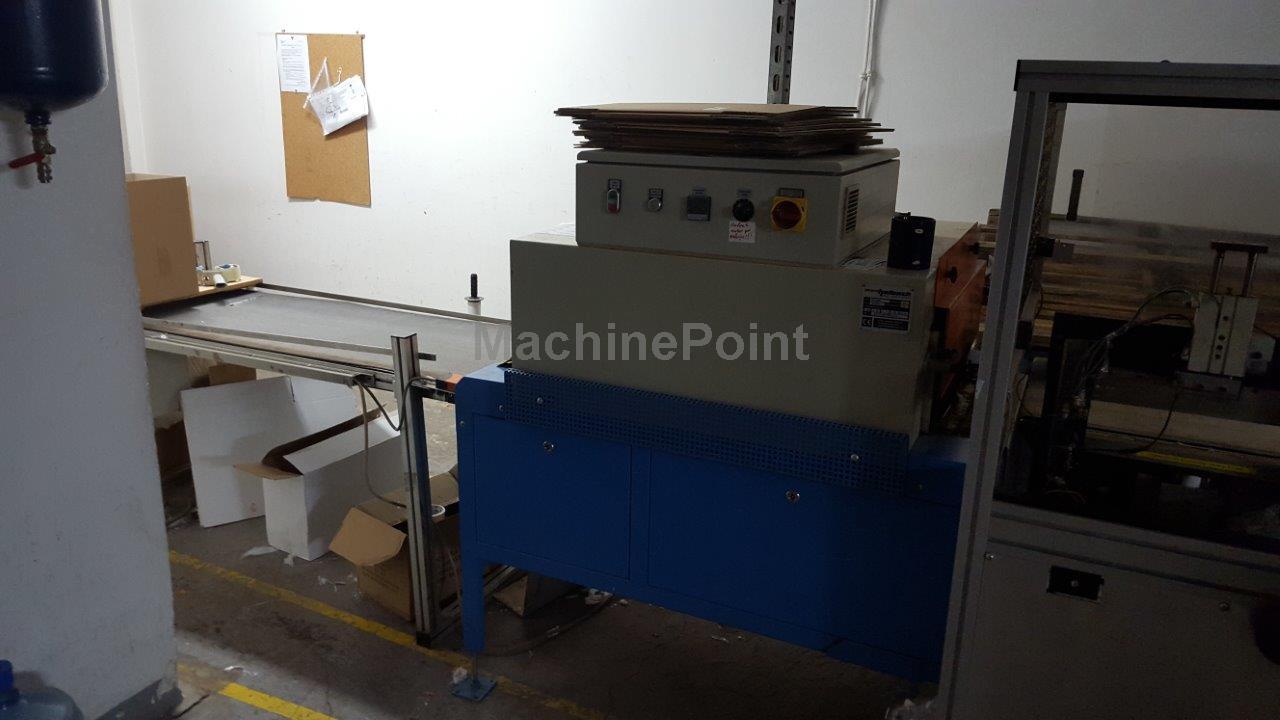

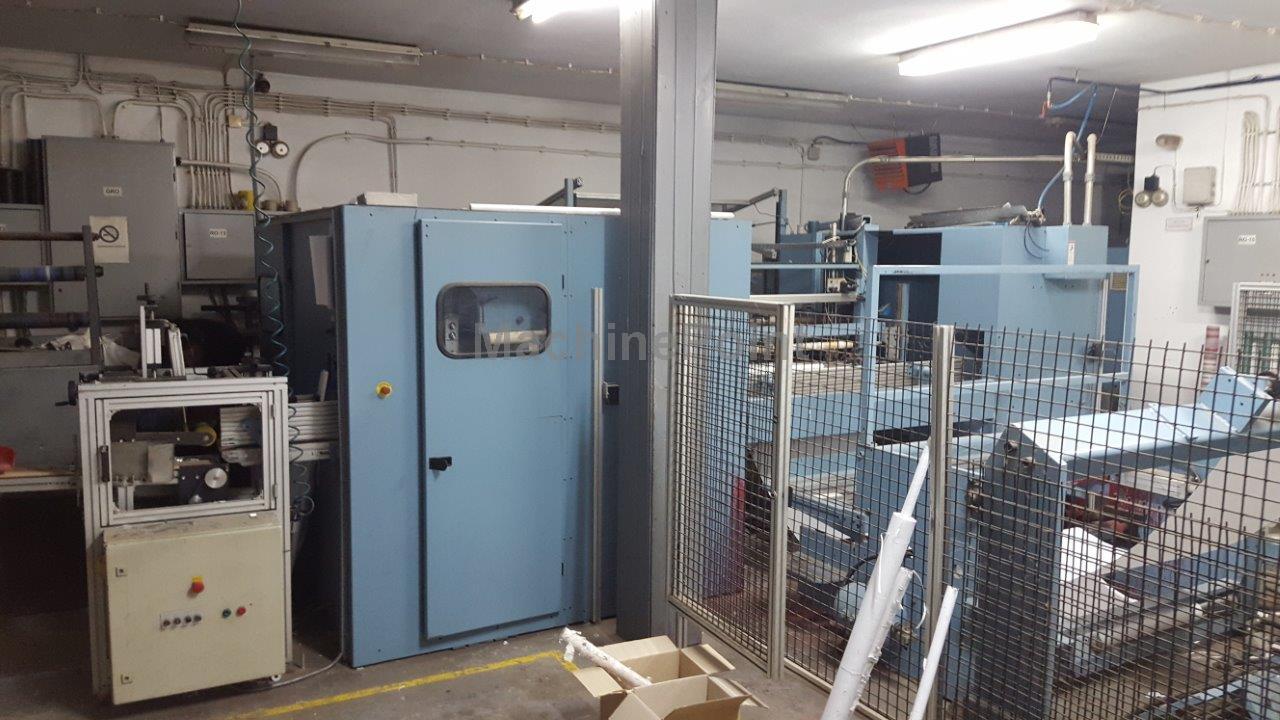

JJF-54 Fully Automatic Slitter/Rewinder with cash Roll Processing Line&Sleeve Wrapper/Tunnel
The JJF is a fully-automatic slitter/rewinder that can be utilized for a variety of converting applications. It is a totally automated machine that reduces labor requirements while increasing productivity and product quality.
The machine consistently produces quality product at quicker rates than any comparable competitors machine.
Maximum web width 1372 mm
Minimum Rewind Web Width 1016 mm

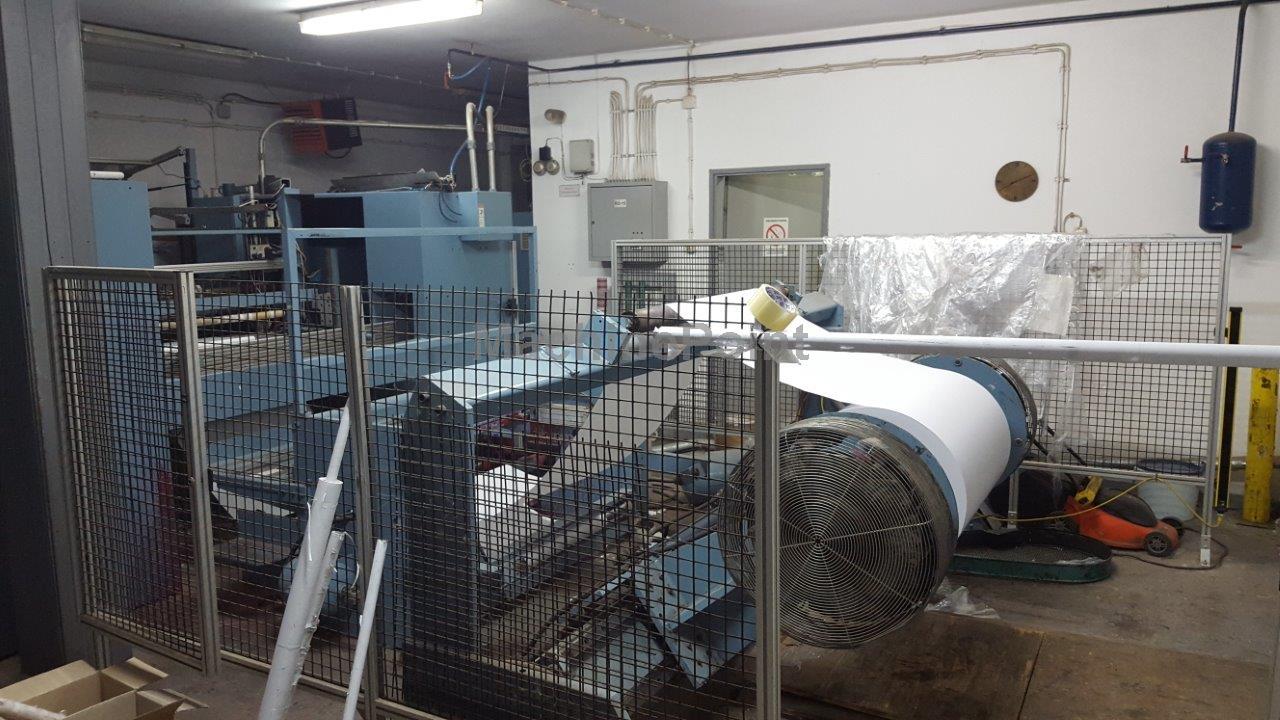

Maximum Unwind Roll Diameter 1270 mm
Maximum Unwind Roll Weight 1362 kg
Minimum Rewind Diametar 38,1 mm
Maximum Rewind Rewind Diametar 305 mm
Mnimum Rewind Core O.D. 16mm
Maximum Rewind Core O.D. 32 mm
Air: Clean, dry @90 p.s.i. min. (15-20 CFM)
Tension control system: Warner Electric pivot sensor
Web separator mounting bar
Automatic Male knife engagement
Automatic Core positioning system

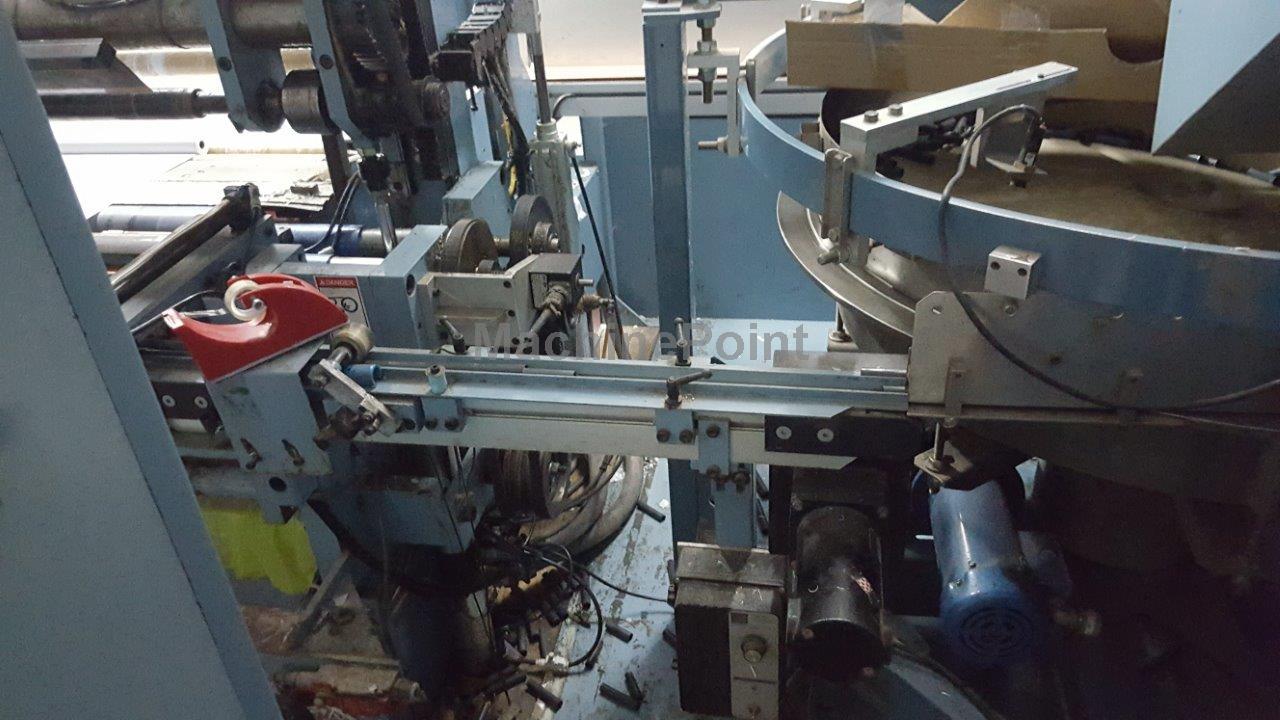

Automatic Core insertion system
Shaftless rewind system
Bed Rollers
Machine Control: Allen Bradley programmable controller
Clue Sealing system
Tab sealing system
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 460 V Triphase
Frequency: 460 V Triphase
