Ref.: 300040149
Brand: HAMBA
Other Specifications:

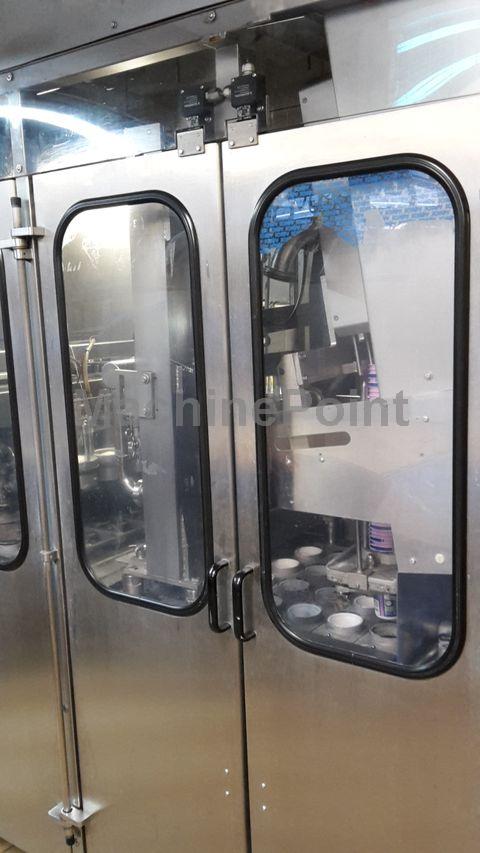

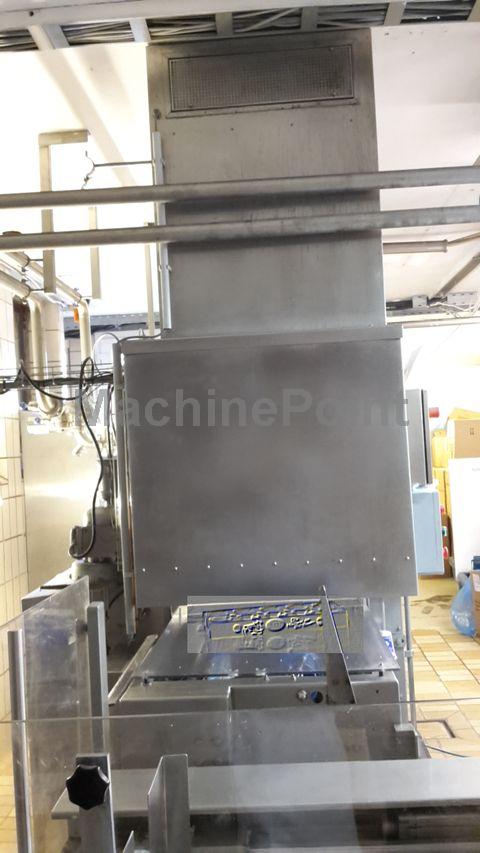

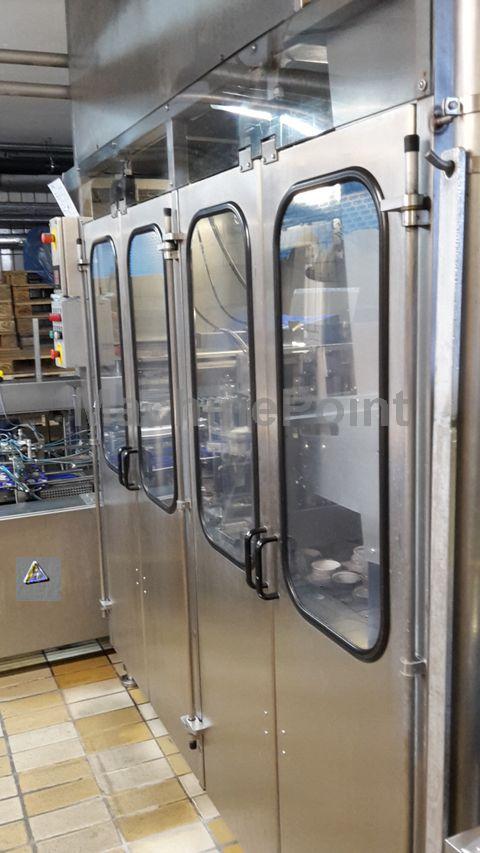

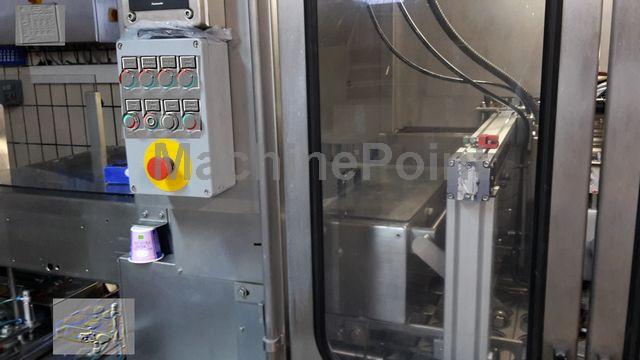

Cup Filling Machine Hamba Type BK 6004
Completely ovehauled in 2005
Original year of manufactoring (unknown),
Can fill cream / sour cream with 24 % and cream fraiche with 30 % in liquid state on the machine.
The density is approx. 1 litre / kg.
Also possible to fill stirred yoghurt
Capacity : 6.000 Cups/h, 4 Lanes,
PS Cups,
Alu cover plate,
Cup Magazin for 15 minutes,
Hygienic air not used (reopening is possible)

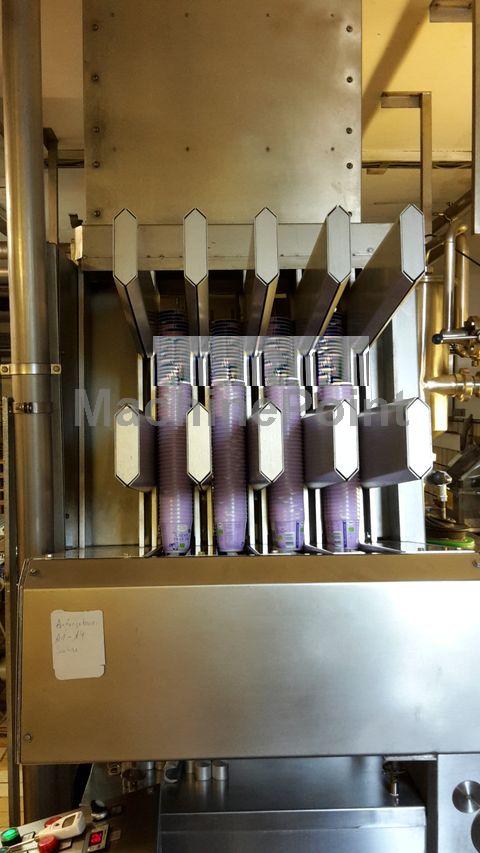

- Cup magazine diam. 75mm with automatic transfer into the cup setter
- Inserting cups into the cell boards

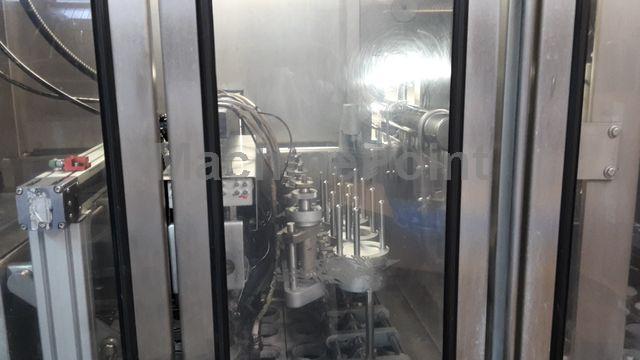

- Filling via piston dosing station
- Positioning the sealing discs
- Sealing with sealing station
- Date movement without traversing unit
- Cup from cell to gripper position
- Gripper 4*5 cups
- Handover in crate 20 pieces
- Ejection from the machine without roller conveyor
- No packaging material disinfection, sterile air hood not in operation
- Small spare parts package available
Machine in good condition, well mantained
