Used Complete filling lines for carbonated drinks: ROTUS 60 of 2015

Data Sheet of Used ROTUS 60

Ref.: 300041113

Brand: ROTUS

Year: 2015

Other Specifications:

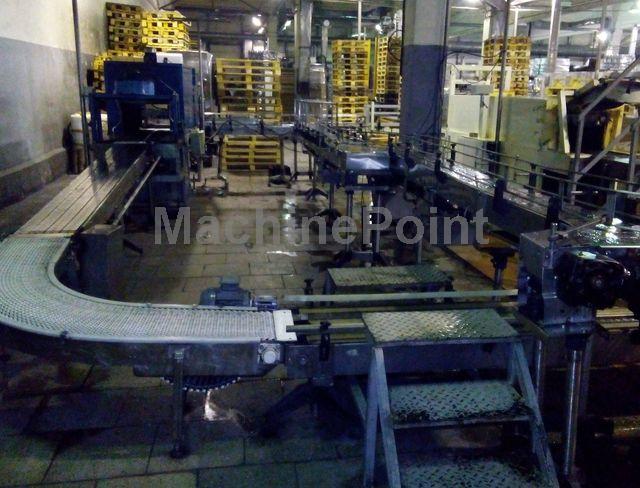

Complete filling line for CSD from ROTUS, ADS, BT

Capacity 8000 bph

Includes:

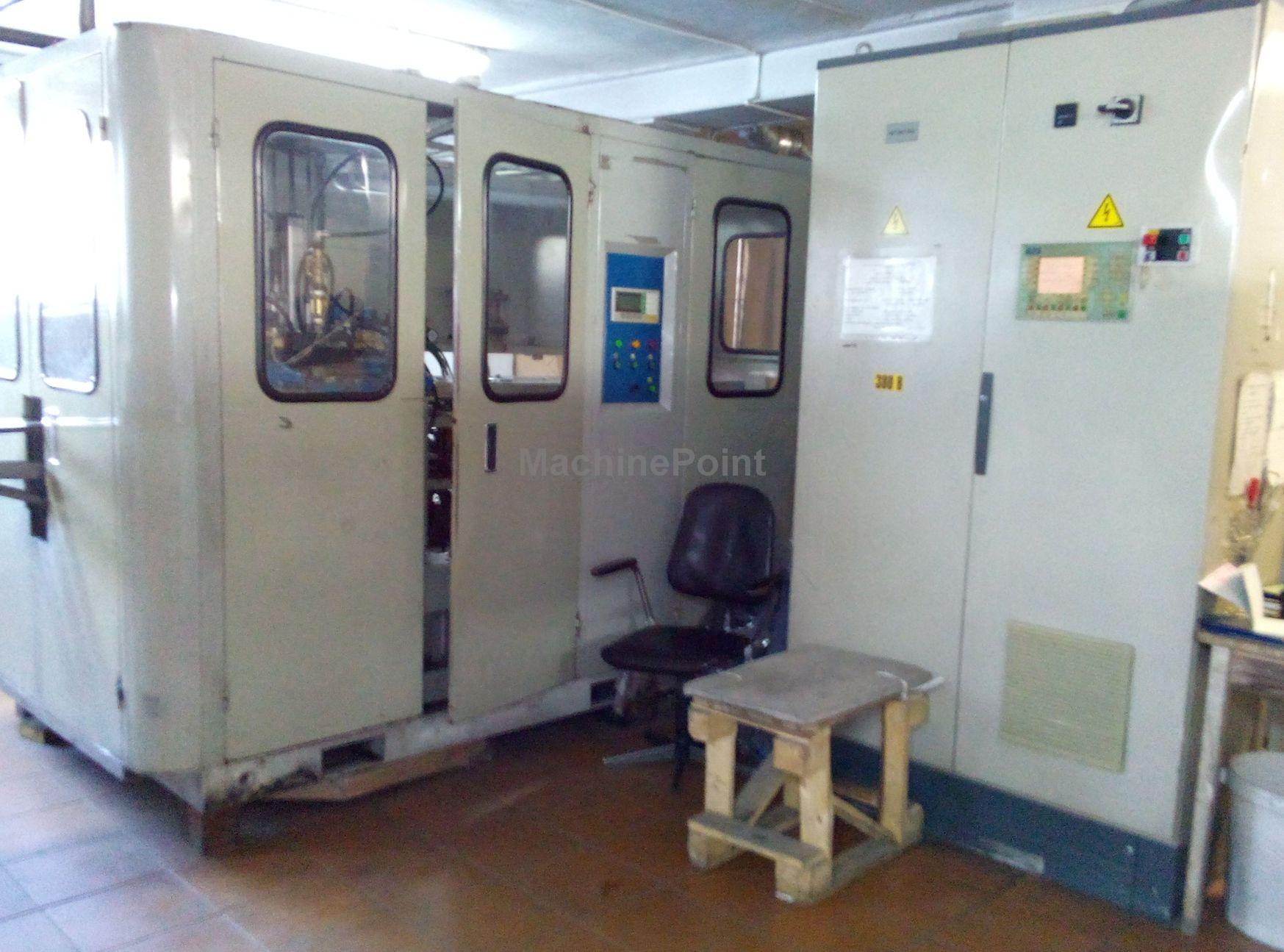

1. Automatic PET bottle production machine A-3000
The power plant, a furnace for heating preforms, preform loader
Capacity: 2500 BTU / hour
Number of places in the form: 3, PCs
Operating pressure: 0.8...4.0, MPa
Air consumption: 2.0, m3 / min
Maximum dimensions of the inflated product: Ø105, mm;
Year 2002

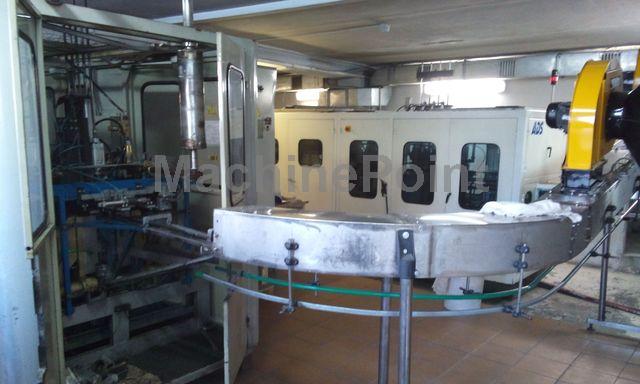

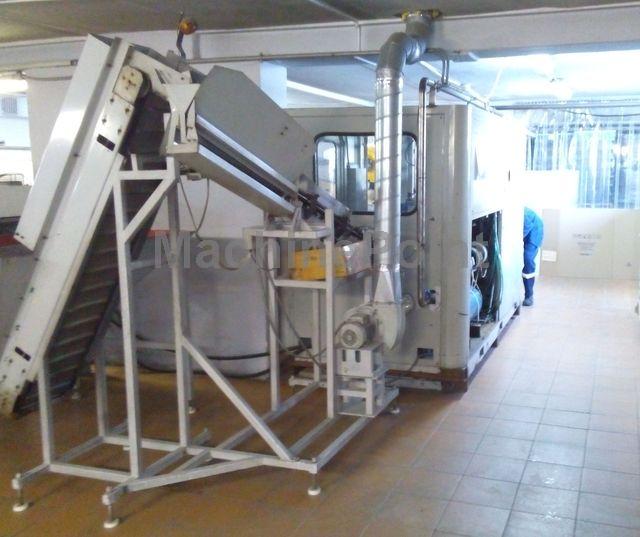

2. Machine for the production of PET bottles, ADS (France)
The power plant, a furnace for heating preforms, preform loader
Technical data:
Capacity: 5000 BTU / hour
Number of places in the form: 4, PCs
Operating pressure: 0.7...4.0, MPa
Air consumption: 6.3 m3 / min
Maximum dimensions of the inflated product: Ø105, mm; height: 350, mm
Year 2002

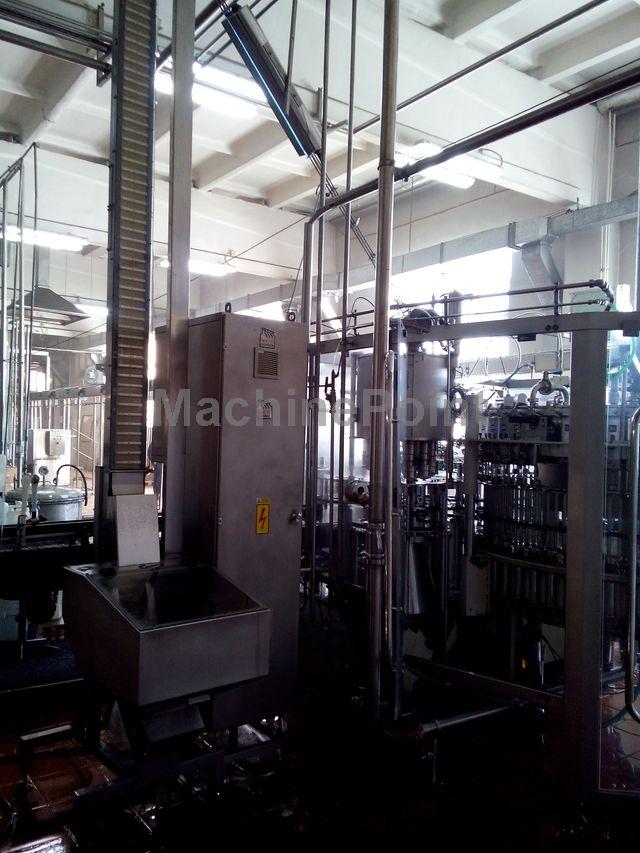

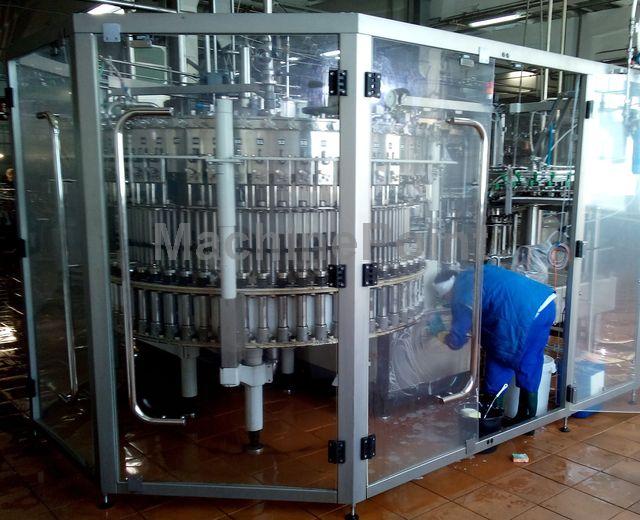

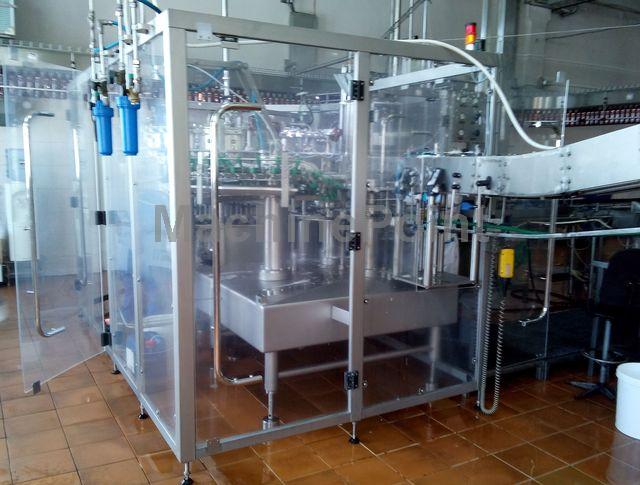

3. PET filling unit ROTUS 60 (Czech Republic)
Capacity: 8000 BTU / hour
Filling places: 60, PCs
Bottle capacity: 1.5, l
Bottle height: 150...340, mm
Bottle diameter: 55...116, mm
Number of capping heads: 12, PCs
Filling pressure: 0.6, MPa
Year 2015

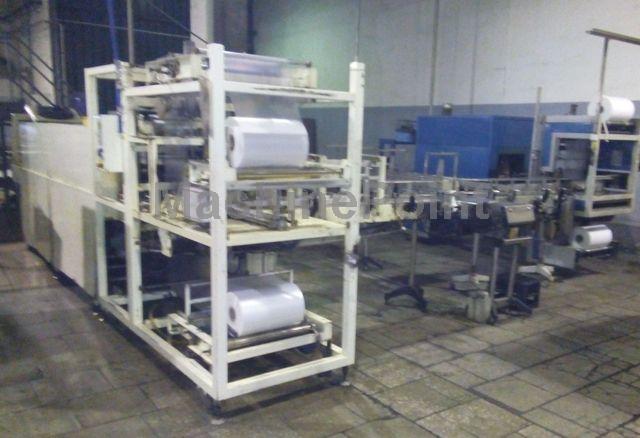

4. Packaging machine Mobile-Pack BT (Hungary)
Operating pressure: 6, bar
Capacity: 2000 units / hour
Year 2003

5. Packaging machine MASEK SBS 2F (Czech Republic)
Operating pressure: 6, bar
Capacity: 4000 units / hour
Year 2001

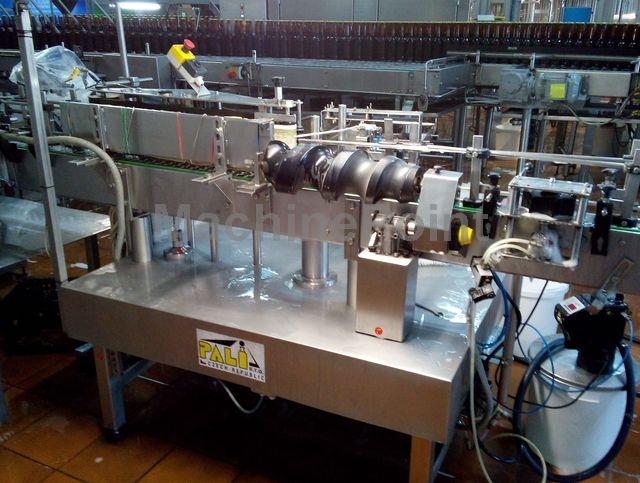

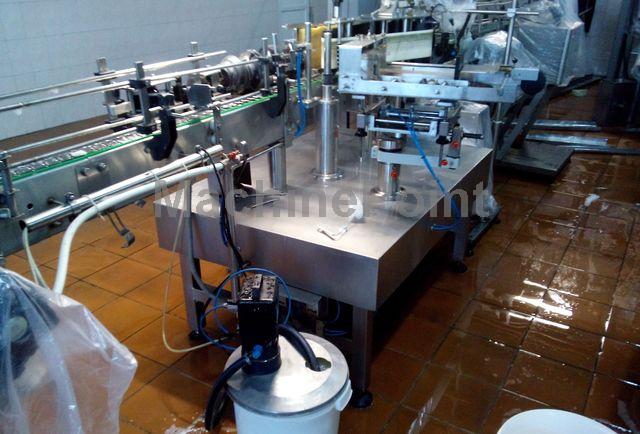

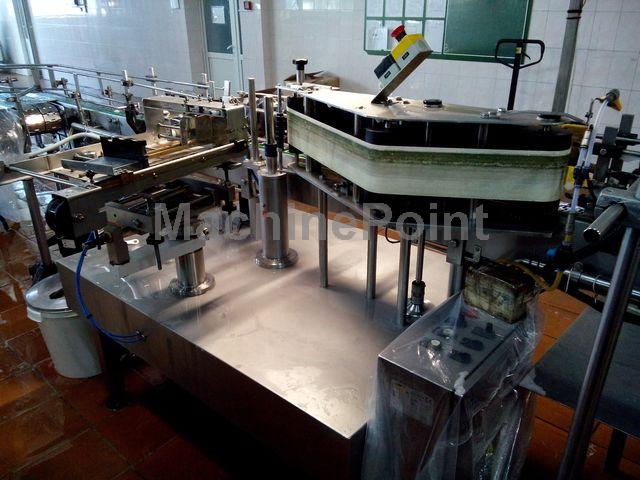

6. Labelling machine
Capacity: 6000 BTU / hour
types of bottles used : 0.2...2.25 l.
Year 2014

Available immediately!
