Used FFP2/N95/KN95 Mask Making Machinery of 2020 for sale

Other Machines , The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.

We remain fully operational during the coronavirus outbreak.


Data Sheet of Used FFP2/N95/KN95 Mask Making Machinery

Ref. : 300041676

Year: 2020

Status: For sale

Delivery time: Immediate



Technical Specifications:

Description: FFP2/N95/KN95 Mask Making Machinery

Other Specifications:

Only for sale as a complete package :

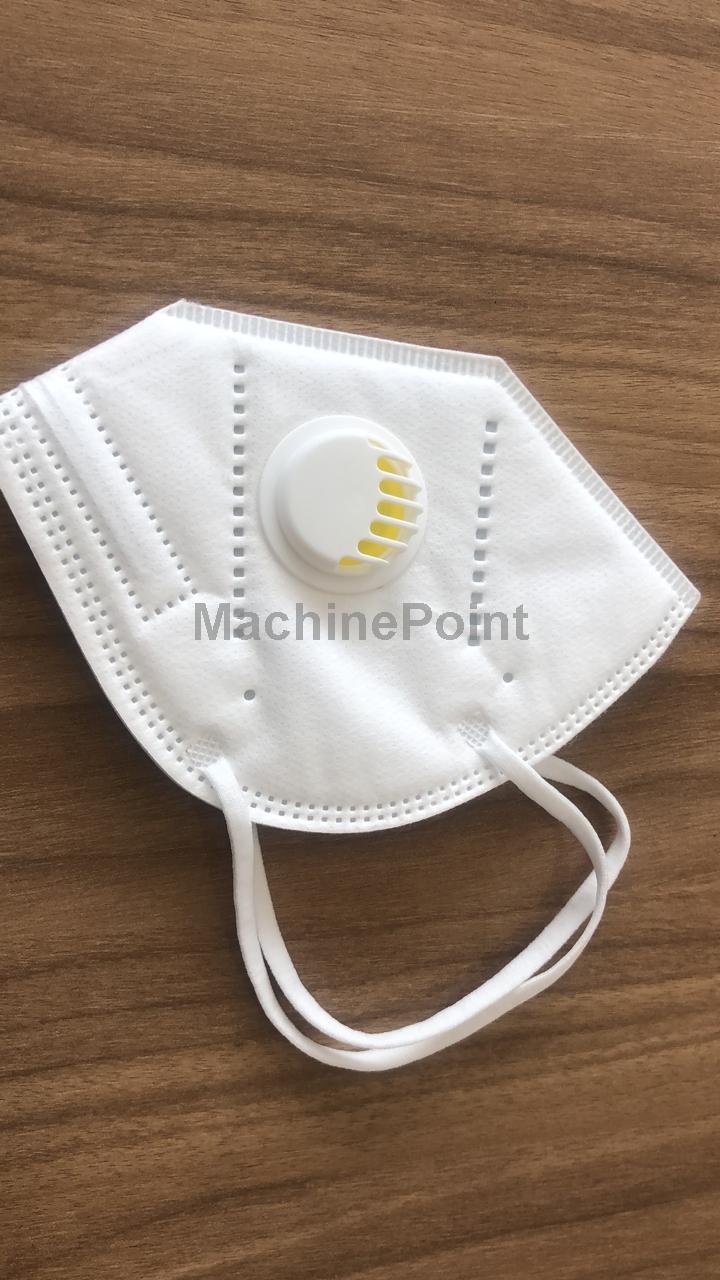

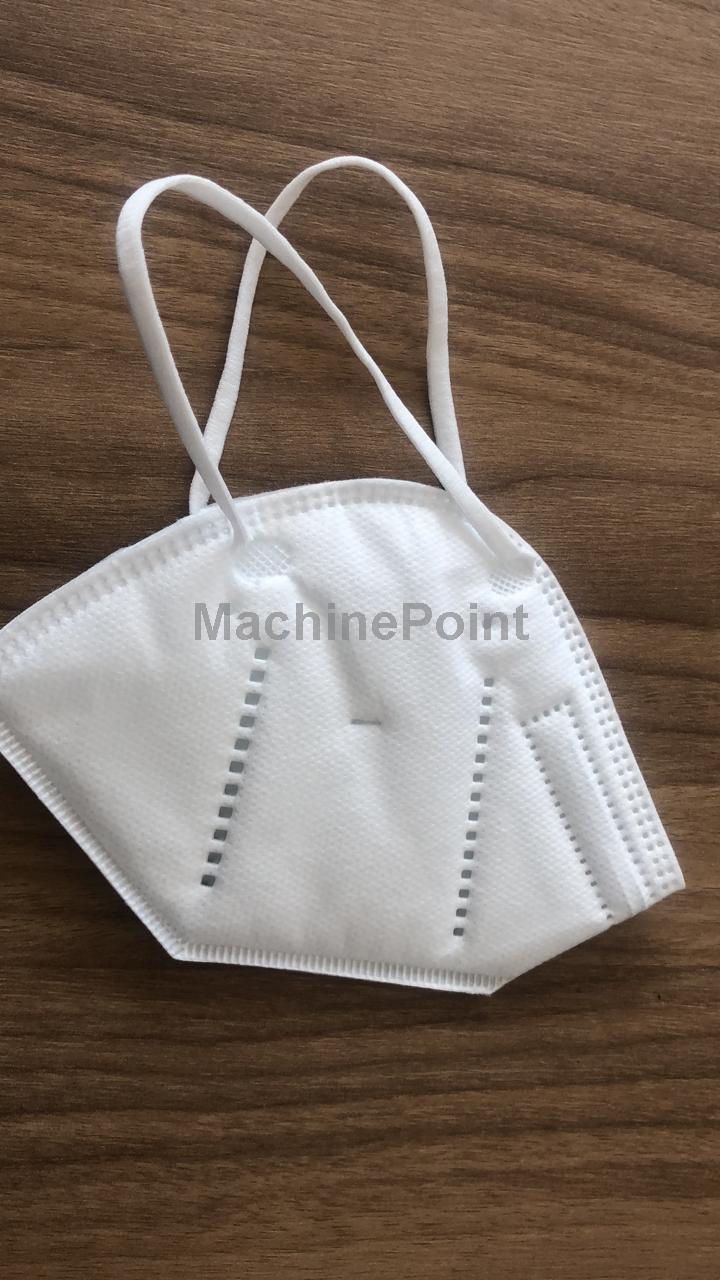

FFP2/N95/KN95 Mask Making Machine is an easy set-up solution to produce folded masks, a total 3 manufacturing process (+ additional equipment for valves), first automatically forming N95/FFP2/KN95 mask bodies, and then be welded with the ear loop on, finally mask bodies be folded with the two edges sealed to output the final folded N95/FFP2/KN95 masks. The entire machineries consists of 3 types of machine + Mask Punching Breathing Valve Machines in case breathing valves are required.

1. Automatic Mask Body Forming Machine (3 sets)
2. Earloop Ultrasonic Welding Machine (11 sets)
3. Mask Edge Ultrasonic Welding Machine (11 sets)
4. Mask Punching Breathing Valve Machine (7 sets)

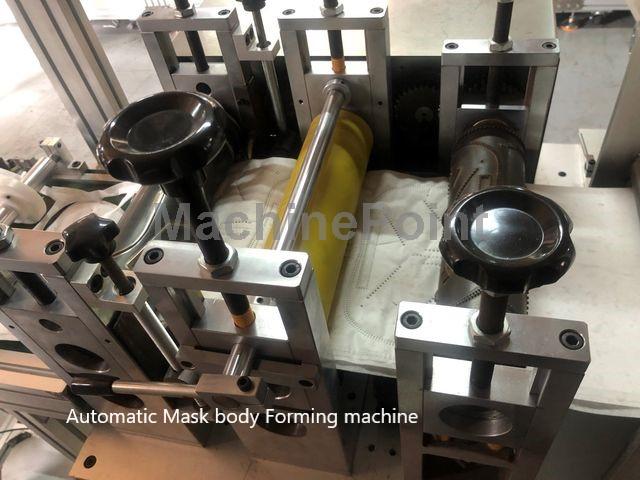

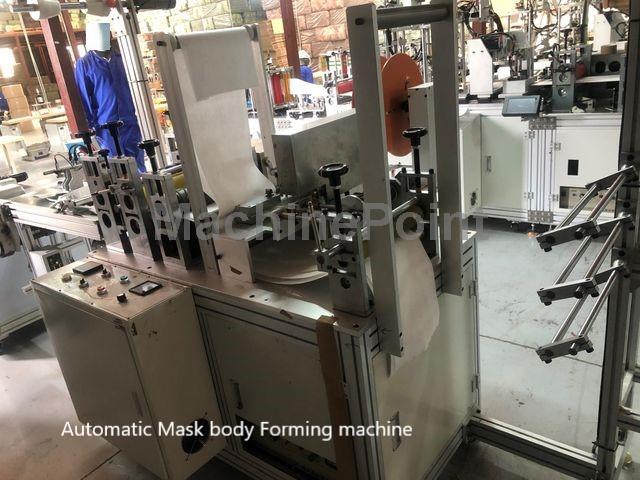

1. Automatic Mask Body Forming Machine (3 sets)

This machinery is used to produce the N95/FFP2/KN95 mask bodies automatically, with an ultrasonic welding device to weld the 4 to 5 layers of mask fabric materials from the feeding system, together with the nose clip bar inserted, and the output will be the N95/FFP2/KN95 mask bodies with die-cut shape. This will be taken later to make ear loop and edge sealing devices.

Capacity : 60 pcs per minute (minimum)
Control Mode : PLC
Output : FFP2 /N95 mask body with nose clip embedded
Machine Size : 3410mmX1260mmX1530mm
Air Source : 0.6-0.7 MPa / cm2

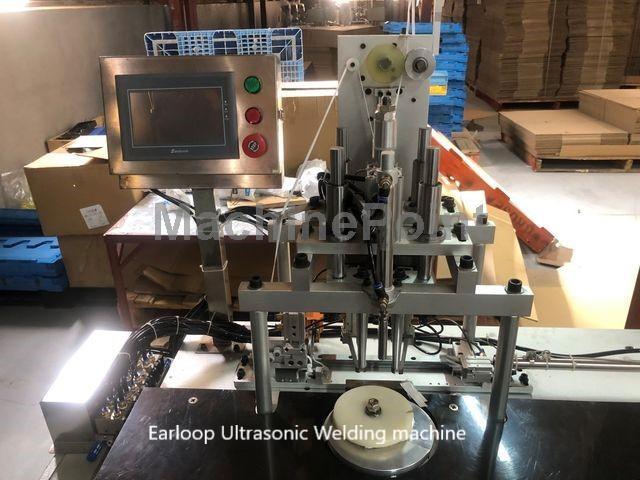

2. Earloop Ultrasonic Welding Machine (11 sets)

This machine is used to weld the N95/FFP2/KN95 mask ear loops on the mask bodies produced in the previous process, featuring in automatic ear loop feeding system, one labor put the mask body, then the machine will automatically finish the 4 points of welding.
Capacity: 15 ~ 20 pcs / min
Control mode: PLC
Air source pressure: 0.6-0.7 MPa / cm2ower: 220 v, 50~60 hz, 4 kw
Machine size: 1160 * 850 * 1550 mm

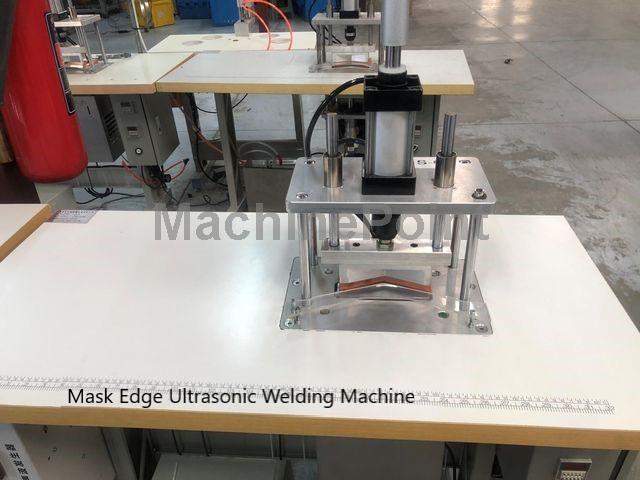

3. Mask Edge Ultrasonic Welding Machine (11 sets)

Used to weld 4 edges together to get folded N95/FFP2/KN95 masks.
Capacity: 20 ~ 25 pcs / min
Control mode: PLC
Air source pressure: 0.6-0.7 MPa / cm2
Power: 220 v, 50~60 hz, 4 kw
Machine size: 550 * 800 * 1500 mm

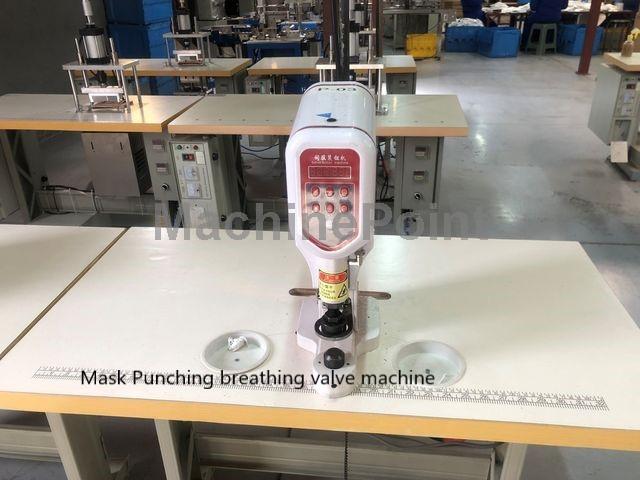

4. Mask Punching Breathing Valve Machine (7 sets)

This machine uses ultrasonic welding system to achieve the perfect combination of breathing valve, using horizontal adjustment dial controls; accuracy up to thousandth of a second; levelling base so as to effectively guarantee the welding of the high quality masks.

Main Features :

The positioning block can be made according to the different masks with precise punching and no error.
Having easy operation that can be used after power on
Being quiet with no noise and being safer than traditional punching machine
With a small size and exquisite appearance that will not occupy the space.
Power:750W
Dmension: 345*190*460
Production: 12-20 pieces per minute.

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate
