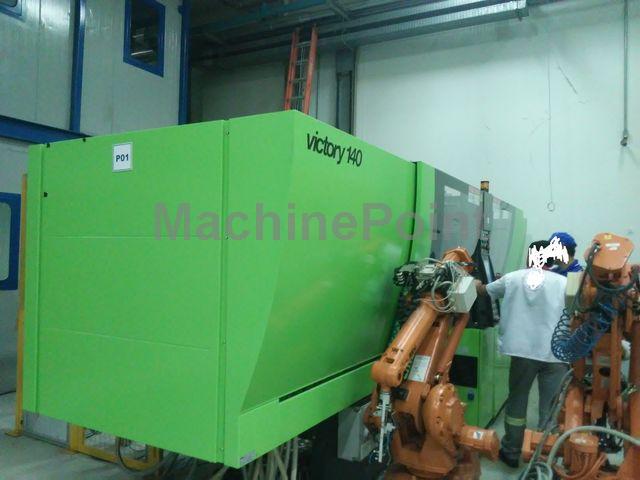

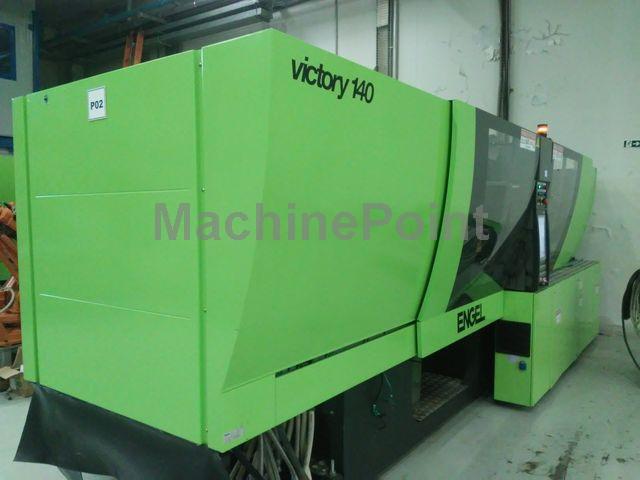

Used ENGEL Victory VC 330H/80W/140 COMBI PRO - BI-INJECTION of 2013 for sale

Injection molding machine up to 250 T ENGEL, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.


Data Sheet of Used ENGEL Victory VC 330H/80W/140 COMBI PRO - BI-INJECTION

Ref. : 300041739

Technical Specifications:

Clamping Force: 140 ton

Platen Size (H): 750 mm

Platen Size (V): 750 mm

Mould Height (Min): 250 mm

Daylight Between Platens (Max): 850 mm

Opening Stroke (Max): 600 mm

Ejector Force: 6 ton

Ejector Stroke: 150 mm

Dry Cycle (S): 1.73 s

Other Specifications:

1st injection unit Ø 25 mm
Screw stroke 160 mm
Max injection capacity 79 cm3
Injection rate 99 cm3/s
Injection pressure 2200 bar


2nd injection unit Ø 18 mm
Screw stroke 100 mm
Max injection capacity 25 cm3
Injection rate 66 cm3/s
Injection pressure 2200 bar


Ask for price:

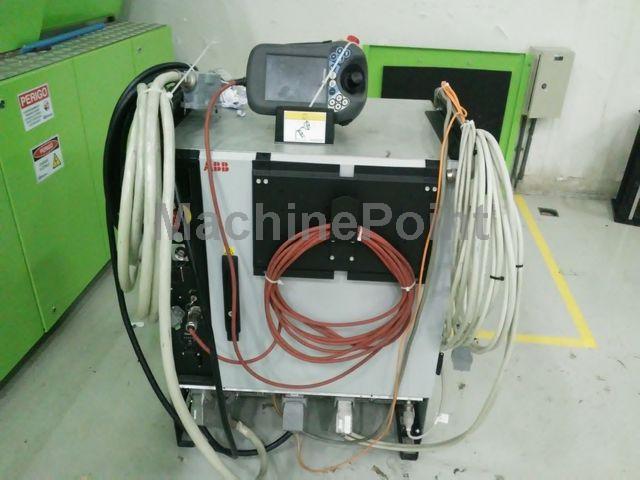

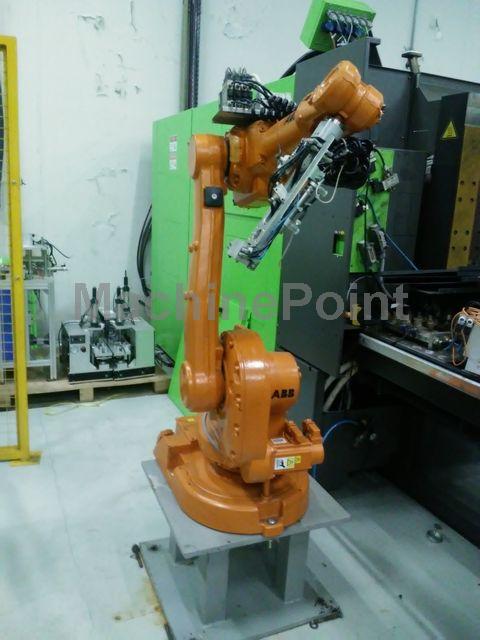

- Robot ABB ABB IRB 1600 M2004 AXIS:6 1450MM – YEAR:2013
- KAWATA OR HB-THERM Thermoregulator

AVAILABLE 3x similar machines (price per machine)

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition
