Used COEMTER Ter Core 9270 38/25 of 1996 for sale

Machine configuration : Unwinder Sr 1800 Fr 1800 Flexotec MLC 1300/1 printing machine Star folding Welding unit C-Folding Rewinder and labelling unit Welding unit 13090 : Max speed : 120 m/min Max number of bags per minute with 4 sealers : 200x2 Max number of bags per minute with 2 sealers : 100x2 Bag length with 4 sealers : 475 to 740mm Bag length with 2 sealers: 730 to 1510mm Welding width: 1x900mm or 2x420mm Materials: LDPE-LLDPE-HDPE Max thickness to weld (total) : 260 microns (2x130) Min thickness to weld "bottom" (total) : 36 microns (2x18 - HDPE) - 50 microns (2x25-LDPE, LLDPE) Min. weld thickness "triple" (total): 40 microns (2x20 - HDPE), 60 microns (2x30 - LDPE, LLDPE) Max. roll width : 1x450 or 2x420 mm Roll diameter max : 130 mm Rolls/min max : 2x20 Flexotec MLC 1300/1 printer year 2008 1 color Web width : 1320mm Printing width : 1300mm Repeat : 490 Gear : 49 teeth

Processed material LD-PE, LLD-PE, HD-PE Bag width 700 mm Film thickness 20-260 mm Mother roll diameter 800 mm

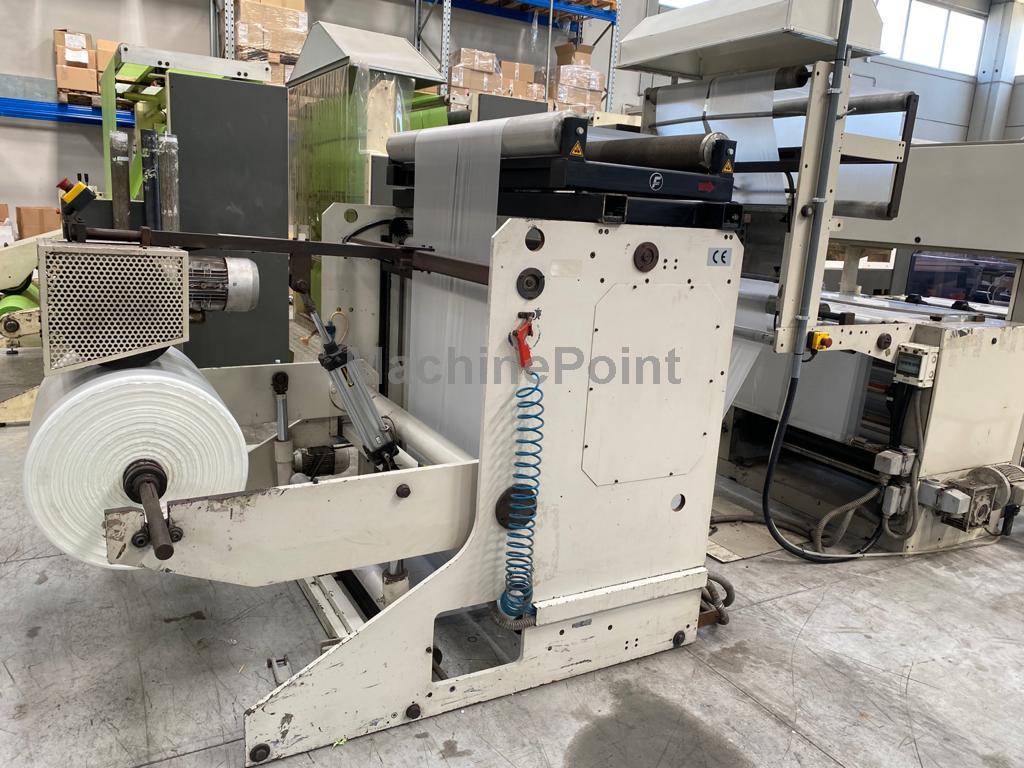

Unwinder is with motor driven brake Side guiding unit. Printing unit: 1+1 or 2+0, Printing repeat: 1000mm Materials: LDPE, LLDPE, HDPE 20-260mic to total Reel width: 900mm Photocell Double c folding unit Rewinder: 15 rollchange per minute, max roll width 450mm, max roll diameter 130mm Paper Label applicator

The T-Wind is a machine for continuous production of bags on rolls, bottom or triple welded. The machine is composed of the following modules: PRE-CUTTING SYSTEM by rotating knife with double adjustment system, with machine stopped and with machine running. Continuous WELDING BODY with constant heat sealing system at low temperature. Two floating main welders with lateral expansion and electrode welding with continuous tensioning system. System of interchangeable soft silicone pads, driven by chain with pneumatic tensioner and guided peripherally on the drum to avoid stretching of the chains, which are also guided along their entire length. Adjustable film input and output tension on the drum. Tension-free loop, at the drum exit, for weld cooling with height control. Manual mechanical register (to register pre-cutting with welding). Drive by AC motor and frequency inverter. Motorized DOUBLE TRIANGLE FOLDER, with AC motor, frequency inverter and compensator for rewinder speed control. WELDING BODY Maximum speed 120 m/min Maximum number of bags per minute 170 Bag length (drum development) With two welders From 500 to 865 mm (10 by 10 mm) With one welder From 1000 to 1730mm (10 by 10mm) Web width : Up to 1200mm. Type of material to be welded LD-PE. LLD-PE. HD-PE. Maximum thickness to be welded 260 microns (total) REWINDING MACHINE WITH LABELLING UNIT Max. number of rolls/min. 20 Max. roll width 420 mm.

The T-Wind 84120 45-45/N Roll machine has been specially designed for the continuous production of single-lane, bottom-welded or triple-welded bags on rolls. The excellent welding, strong and resistant provided by the machine is made by a "tension free" welding system and a cooling loop for a complete shrink wrapping. The rotary knife pre-slitting system, aided by a motorized loop and an experienced four-station rewinder provides rolls of bags with a "clean" pre-slit line, and "very smooth" when removing bags from the roll. THE MACHINE CONSISTS OF THE FOLLOWING MODULES: PRE-CUTTING SYSTEM by rotating blade with total stability of the pre-cutting position with respect to the sealing. Fast cutting adjustment system (exclusive Coemter) that extends the life of the blade and drastically reduces downtime. Continuous WELDING BODY with constant heat sealing system at low temperature. Two floating main welders, with lateral expansion. Wire welding with continuous tensioning system. System of soft silicone pads (interchangeable without disassembly), driven by chain with pneumatic tensioner and guided peripherally on the drum to avoid stretching of the chains, which are also guided along their entire length. Adjustable film input and output tension on the drum. Tension-free loop, at the drum exit, for weld cooling with automatic height control. Manual mechanical register (to register pre-cutting with welding). Drive by AC motor and frequency inverter. Motorized DOUBLE TRIANGLE FOLDER, with AC motor and frequency inverter, also includes compensator for rewinder speed control. FOUR-STATION REWINDER, with electro-pneumatic drive and electronic control. Number of bags per reel preselectable by electronic counter. Drive of the rewinding clamps by AC motor with frequency inverter and electromagnetic clutches. Electrical braking and positioning system of the rewinding clamps (Coemter patented system). Electronic roll separation point determination (without spark gap meter). Roll separation by simultaneous turning of rewinding clamps, aided by "Kunfú" mobile paddle stroke. Detector of "extracted roll" and "gripper in position", with machine stop in case of anomaly. Automatic machine stop in case of overload in the drum turning transmission or in case of roll non-separation. Drum turning transmission can be disengaged manually. Slow rewinding by manual push button. WELDING BODY Maximum speed : 120 m/min Maximum number of bags per minute : 170 Bag length (drum development) With two welders : From 500 to 865 mm (10 by 10 mm) With one welder : From 1000 to 1730 mm (10 by 10 mm) Web width : Up to 1200mm. Type of material to be welded : LD-PE. LLD-PE. HD-PE. Maximum thickness to be welded : 260 microns (total). REWINDING MACHINE WITH LABELLING UNIT Max. number of rolls/min. 20 Max. roll width 420 mm.
