Used ENGINPLAST 3 components of 2012 for sale

Technical Specifications:

Other Specifications:

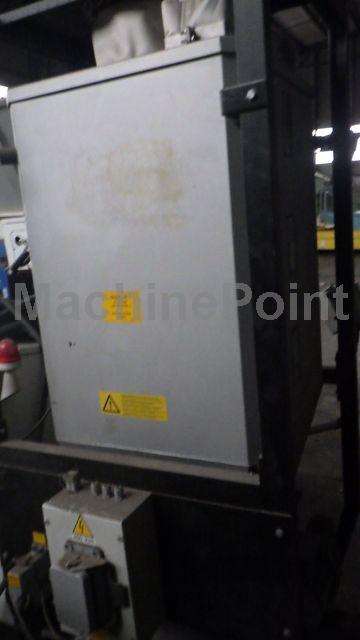

1 gravimetric mixer EnginPlast - has worked 100 hours only.

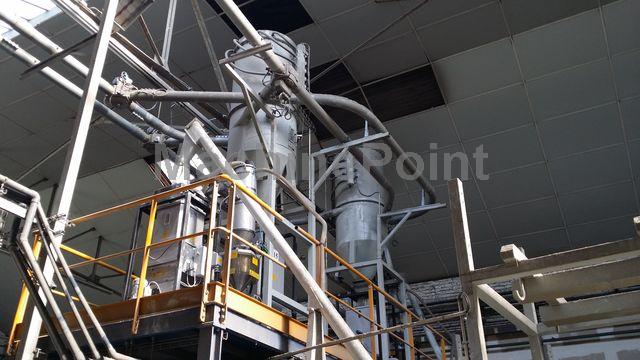

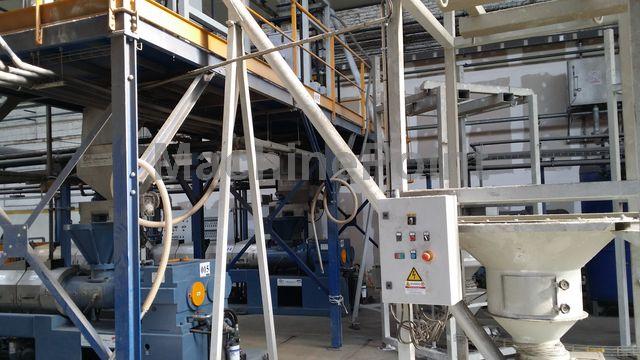

It was installed above an extruder.
3 components 500kg/h
There is a granule dispenser and 2 powder dispensers.
The weight percentages of each material can vary between 0 and 100%.

Application: CDM full screw extruders
- output 1200 kg/h (dosing in the customer's extraction screw)

Components and dosing:

1) 70-100 % PP ground (DA 0,35 kg/dmc)
2) 5-30 % CaCo3 powder (DA 1 kg/dmc)
3) 1-10 % master granulate (DA 0,775 kg/dmc)

1.GRAVIMETRIC DOSING UNIT TYPE DG1SP 35/100 :

2.GRAVIMETRIC DOSER TYPE DG1SP2V 35/100 :

3.15/50/V150 TYPE GRAVIMETRIC DOSER composed of :

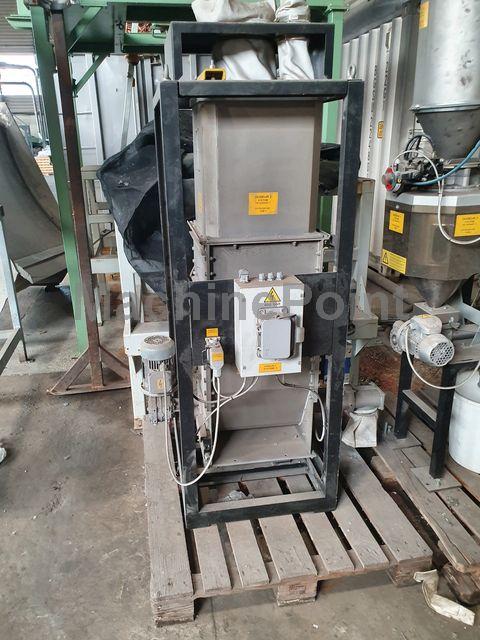

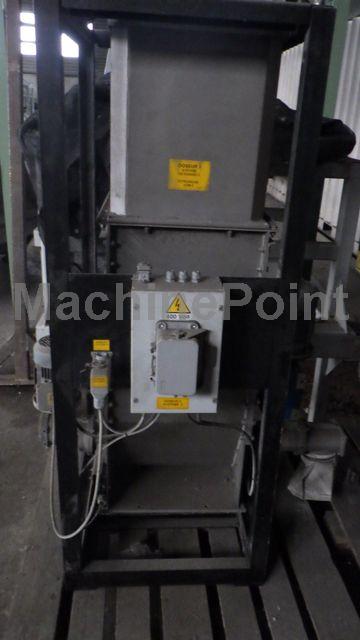

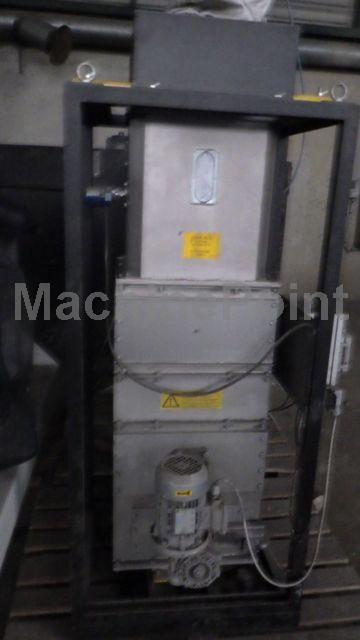

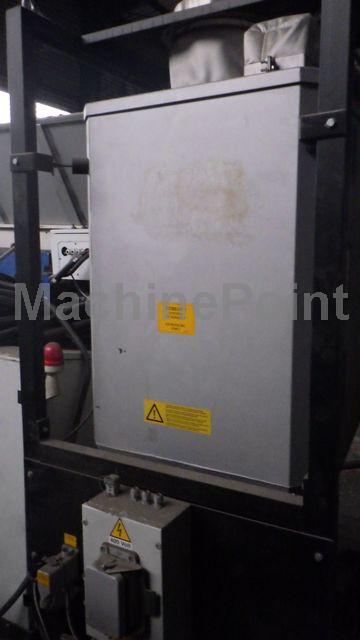

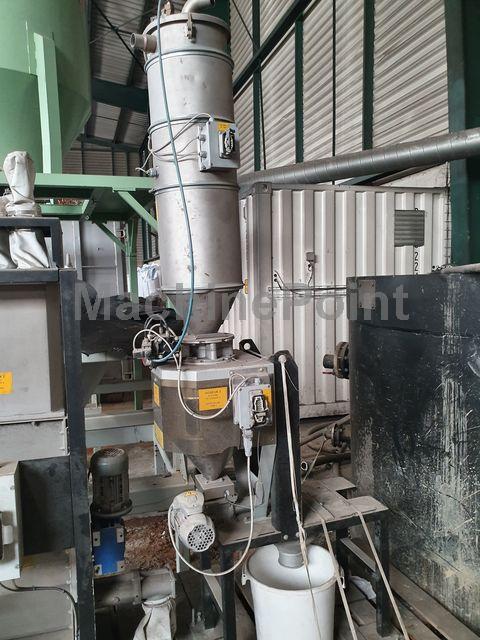

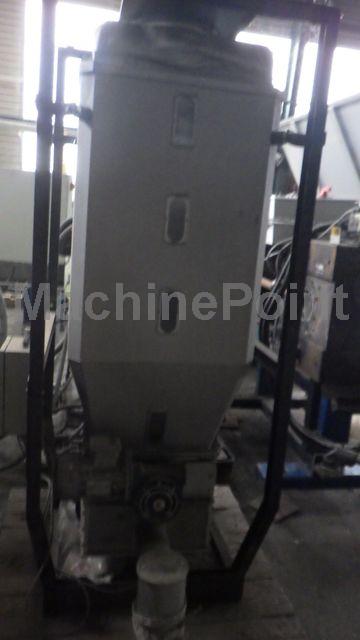

Gravimetric feeder AG 150, composed of a loading hopper, capacity 40 dmc, made of stainless steel, equipped with electro-pneumatic butterfly discharge valve, a stainless steel weighing tank capacity 20 dmc, mounted on a flexural loading cell. Supporting structure in painted carbon steel. Extraction dosing unit with body in aluminium casting, screw holder tube in calibrated steel, dosing screw in chromium plated steel, gear motor with AC drive motor 0.18 kW, controlled by digital frequency converter (inverter).

Other Details:

Guarantee: Without guarantee

Current condition: Dismantled. Can't be seen in running condition

Availability: Immediate
