Technical Specifications:
Clamping Force: 120 ton
Shot Weight (Max): 211 g
Distance Between Tie-Bars (H): 480 mm
Distance Between Tie-Bars (V): 440 mm
Platen Size (H): 770 mm
Platen Size (V): 730 mm

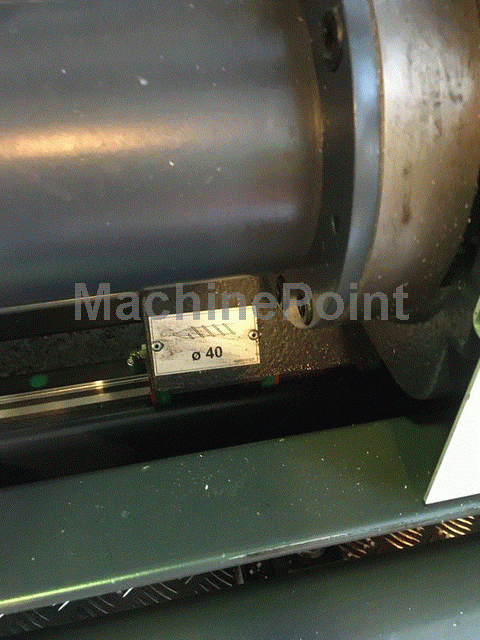

Screw Diameter: 40 mm
Mould Thickness (Min): 300 mm
Opening Stroke (Max): 500 mm
Ejector Force: 3.5 ton
Ejector Stroke: 125 mm
Core Pulls:Yes
Number Of Core Pulls: 1
Screw L/D Ratio: 20
Screw Speed: 380 rpm
Screw Torque: 450 N·m
Injection Volume: 232 cm³
Injection Pressure: 1710 bar
Injection Rate: 188 cm³/s
Nozzle Force (Max): 4 ton
Plasticising Capacity: 28 g/s
Heating Zones: 3
Heating Capacity: 9.3 kW
Other Specifications:
working hours: 23.000h

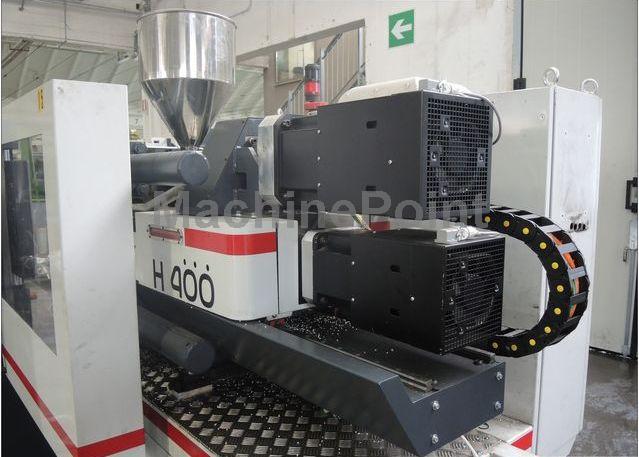

Euromap: 1200H-400
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Full Electric
