Used UNILOY UMC 20-80-200K of 2005 for sale

2005 | Ref.: 300042630

Extrusion Blow Moulding machines from 10 L UNILOY, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.


Data Sheet of Used UNILOY UMC 20-80-200K

Ref.: 300042630

Year: 2005

Brand: UNILOY

Status:
For sale

Delivery time: > 3 months


Ask for machine price Want to sell your machine?
Please accept marketing-cookies to watch this video.

Technical Specifications:


  • Container Size With Actual Configuration: 20 l
  • Number Of Heads: 1
  • Material Type: HDPE
  • Number Of Stations: 1
  • Output Capacity U/H Or Kg/H: Kg/h 210
  • Extruder Type: Continuous
  • Number Of Extruders: 1
  • Screw Diameter: 80 mm
  • L/D: 24
  • Wall Thickness Control: Yes

Other Specifications:


Useful size of plates between columns: 600 mm x 600 mm
Opening stroke: 1000 mm
Closing force: 200 kN
Closing speed: 900 mm/sec

Deflashing unit
Possibility of producing a viewing strip

Average consumption: 70 kW
Minimum mould thickness: 155x2 mm

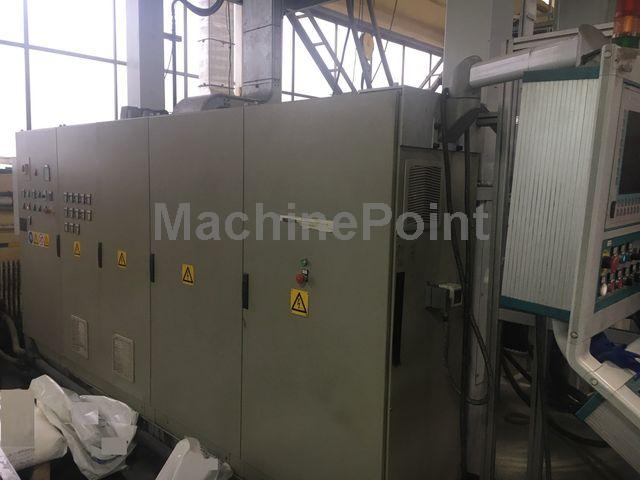

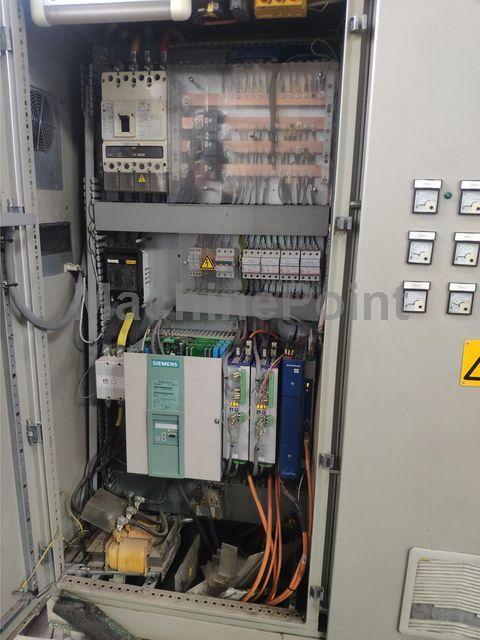

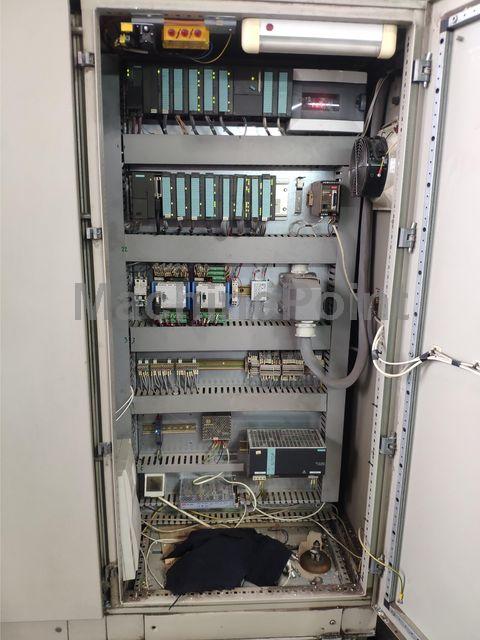

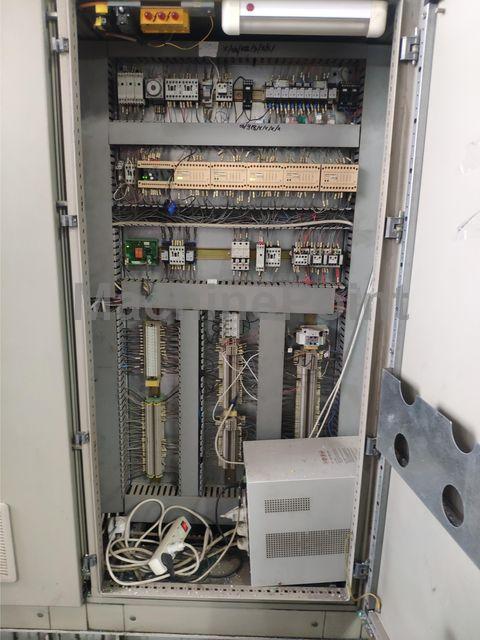

Control type: Siemens S7-300 based
Parison control: 128 points

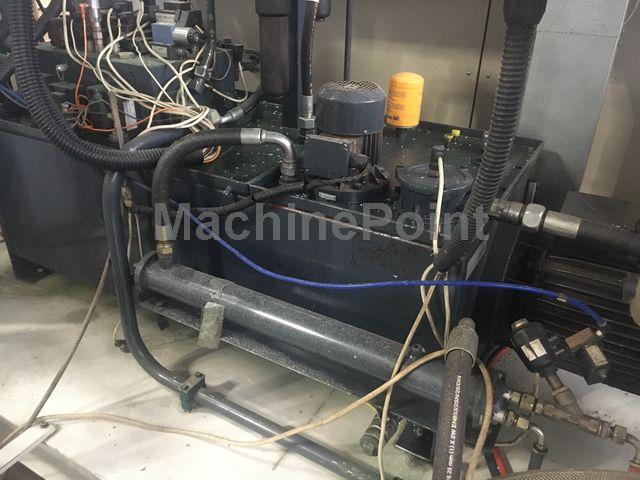

Type of hydraulic system: based on the Italian manufacturer's Atos
Mould clamping and adjustment of the parison are performed by proportional apparatus.

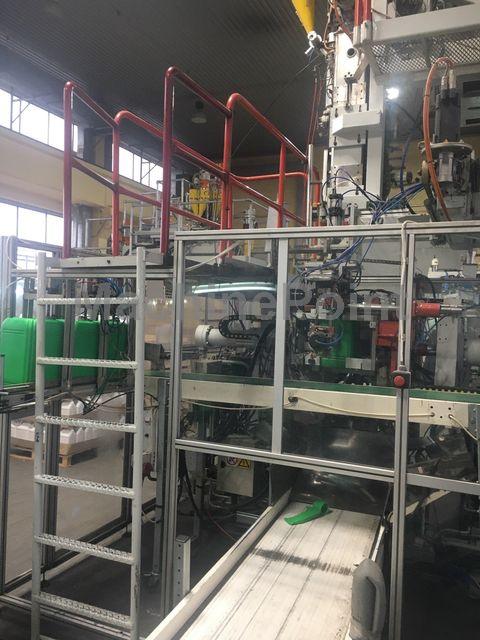

Conveyor belt for cutting residues
Conveyor belt for final product

The extruder screw as well as the columns and sleeves of the clamping unit were replaced 5 years ago.

Included in the price:
Two 20 L moulds (stackable canister). One of them is using now on the machine.
One 10 L mould (stackable canister).

Other Details:


Guarantee: Without guarantee

Current condition: In Production

Availability: > 3 months

Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 123.55 Kw
