Used CODIMAG Viva 340 of 2006 Number Of Colours: 7 for sale

Offset printing machines CODIMAG, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.

Data Sheet of Used CODIMAG Viva 340

Ref. : 300042661

Year: 2006


Status: For sale

Delivery time: Immediate

Technical Specifications:

Number Of Colours: 7

Printing Width: 340 mm

Other Specifications:

Hours worked 12399 - cycles 60653269

Semi-rotary waterless offset machine.
-Web cleaner from Kelva,

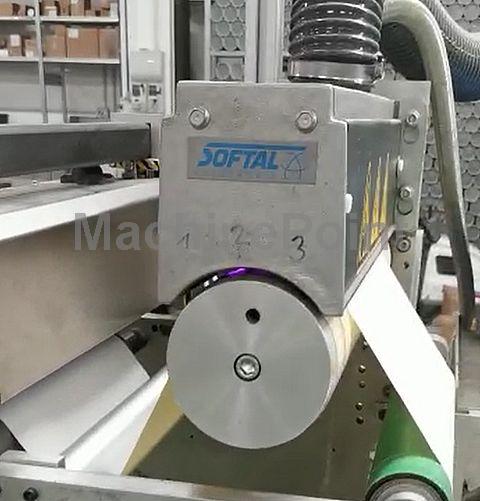

-Corona treatment by Softal,
-Photocell for reprocessing,
-7 offset units
-One Flexo unit with suction table for better paper tensioning.
-Hot foil stamping with the possibility of electronic print distortion + dedicated control unit for heating and cooling plates.

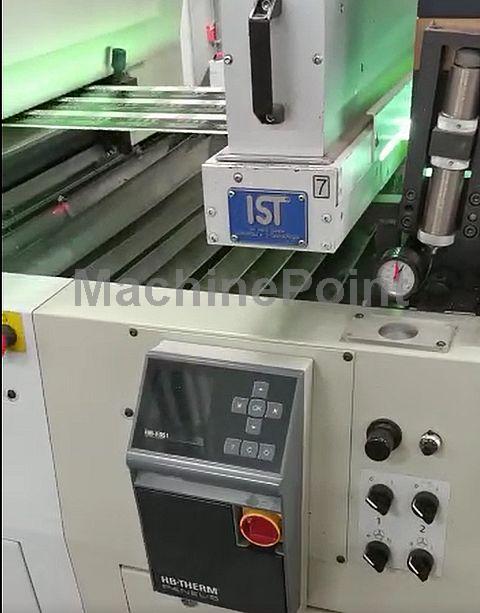

Semi-rotary screen printing press with dedicated VTI UV module with the possibility of distorting the print in order to improve registration.
-Automatic register with photocell reading by SensoTec.
-Die-cutting without Gap Master and rewinder.
-The machine can be interfaced with an additional Rotocolor RW-A500 automatic reel change and cutting unit.

The machine is configured as follows:
-Corona treatment
-6 offset units in line
-1 offset unit
-Hot gold
- Eventually change reel Rotocolor

Codimag optional included
-1 brass cylinder for hot plate mounting and tensioning.
-Complete Stork kit to assemble the semi-rotary screens.
-Rotocolor automatic reel change.
-Technotrans refrigeration unit, plus additional Seat water exchanger and an external tank for further water storage.
-Dedicated computer just for managing the electronic inkwells and saving the work carried out, with the latest version of the Ap Systems program installed.

Latest work carried out:
-Complete regeneration of UV units.
-Tecnotranscards changed end of 2019

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate
